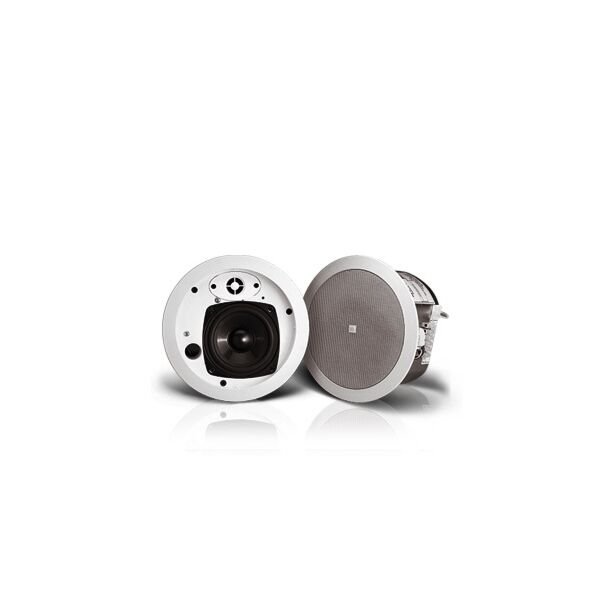

JBL Control 24C Micro Plus - 4" 70V 2-way Ceiling Speaker (Pair)

SKU
JBL-C24CTMP

Extremely wide 150° coverage. Smooth frequency response. Advanced crossover network provides very even coverage throughout listening area. Components: 115 mm (4.5 in) woofer, injection molded graphite cone

Special Price $250.00 Regular Price $296.64
Account manager

Have a Question? Ask an Account Manager

JBL Control 24C Micro Plus 4" 70V 2-way Ceiling Speaker (Pair) The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Background Music Ceiling Loudspeaker

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.



Features

  • Extremely wide 150° coverage.
  • Smooth frequency response.
  • Advanced crossover network provides very even coverage throughout listening area.
  • Components:
    115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
    12 mm (.5 in) polycarbonate tweeter for extended response.
  • Includes 25 W multi-tap transformer for 70 V/100 V systems.
  • Shallow 105 mm (4.1 inch) depth from back of baffle.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.


Specifications

Frequency Range80 Hz - 25 kHz
Power Capacity30 W Continuous Program Power; 15 W Continuous Pink Noise
Transformer Taps70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
Nominal Sensitivity85 dB SPL @ 1 m (3.3 ft)
Crossover Frequency3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
Rated Maximum SPL99 dB @ 1 m (3.3 ft), 25 W tap
Low Frequency115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
High Frequency12 mm (0.5 in) polycarbonate
More Information
ConditionNew
MPN (manufacturer part number)C24CT MICROPLUS
UPC (Universal Product Code)0 632930329519
