34 simultaneous audio channels
You get 8 x 8 balanced analog, 8-channel ADAT optical and independent headphone out for 16 inputs and 18 outputs. The optical ports also support stereo TOSLink (optical S/PDIF).

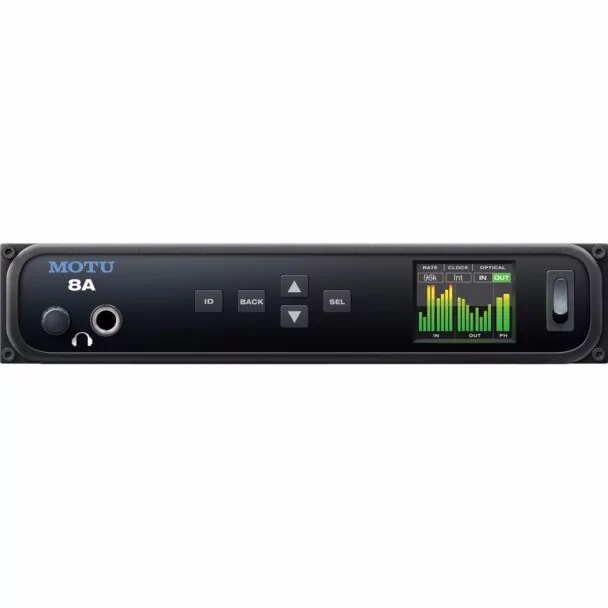

MOTU 8A - Thunderbolt and USB3 Audio Interface
SKU
MOTU-8A
-8x Analog Inputs and 8x Analog Outputs
-AVB Up to 256 Thunderbolt Channels
-48-Channel Software Mixer with DSP
-Remote Control Using Web Application
-8-Channel ADAT Optical
-USB 3.0 Audio Compatibility
$795.00
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Email us: [email protected]
Equipped with renowned ESS Sabre32 Ultra™ DAC technology,
the 8A has the same award-winning analog audio quality and proven performance as MOTU's flagship 16A interface — packed into a mobile half-rack enclosure.
Superb analog audio quality
and high-end converters
Performance suitable for
the most demanding situations
Renowned ESS Sabre32 Ultra™ DAC technology delivers
123 dB dynamic range and the same proven, award-winning audio quality
as MOTU's flagship 16A.
Ultra-low latency and proven, high-performance MOTU drivers
The best possible latency performance
The 8A delivers round-trip latency (RTL) performance as low as 1.6 ms at 96kHz
over Thunderbolt™ — and an astonishing 1.9 ms over USB — with high-performance DAW hosts.
Mobile operation and universal connectivity
Ultimate portability and flexibility
Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet — with support for up to 256 audio channels (128 in and 128 out). USB audio class-compliant firmware and high-performance, industry-standard drivers work with any audio apps. Connects to your iPad™ with a standard camera connection kit (adapter).
Super-speed USB 3.0
Compatible with USB 2 and iOS
Thunderbolt 2
Compatible with Thunderbolt 1 & 3
AVB/TSN
Multi-channel audio over Ethernet
DSP mixing and effects processing
Console-style mixing with 48 channels and 12 busses
The 8A's full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Analog inputs | 8 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (range -96 to +22) |
| Analog outputs | 8 x 1/4" TRS line out (balanced, DC coupled 5v) Max level: +20 dBu (range -4 to +20) 1 x 1/4" TRS stereo headphone |
| Digital I/O | 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) |
| Total I/O | 16 inputs / 18 outputs (34 total) at 1x sample rates 12 inputs / 14 outputs (26 total) at 2x sample rates 8 inputs / 10 outputs (18 total) at 4x sample rates |
| Computer I/O | 1 x Thunderbolt 2 (Mac and Win) Thunderbolt 1 & 3 compatible 1 x USB 3.0 (Mac and Win) USB 2.0 and iOS compatible (class compliant) 1 x AVB/TSN Ethernet (Mac only) Requires OS X 10.11 or later |
| Computer I/O channels | Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 3.0 (44.1 to 96 kHz): 128 in/out USB 3.0 (176.4 to 192 kHz): 64 in/out AVB/TSN Ethernet: 16 to 128 in/out depends on host computer speed |
| Headphone | 1 x 1/4" TRS stereo phone (assignable) |
| Front panel | 1 x 1/4" TRS headphone output 1 x digital rotary encoder • main/phone volume 5 x switches • menu navigation 160 x 128 pixel RGB LCD for level meters / menu nav Power switch |
| Power | External 12-18V DC power supply 1.0A max • tip pos or neg |
| Dimensions and weight | (width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.2 lbs / 1.0 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available Thunderbolt, USB or AVB/TSN Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB/TSN Ethernet audio interface operation requires OS X 10.11 or later
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available Thunderbolt or USB port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU interface by wire or Wi-Fi.
Included Software
- MOTU Discovery App for Mac & Windows (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU web app (served from the hardware itself)
- AudioDesk 4.0 for Mac & Windows (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
| Condition | New |
|---|---|
| MPN (manufacturer part number) | 9360 |
| UPC (Universal Product Code) | 00839128006041 |
