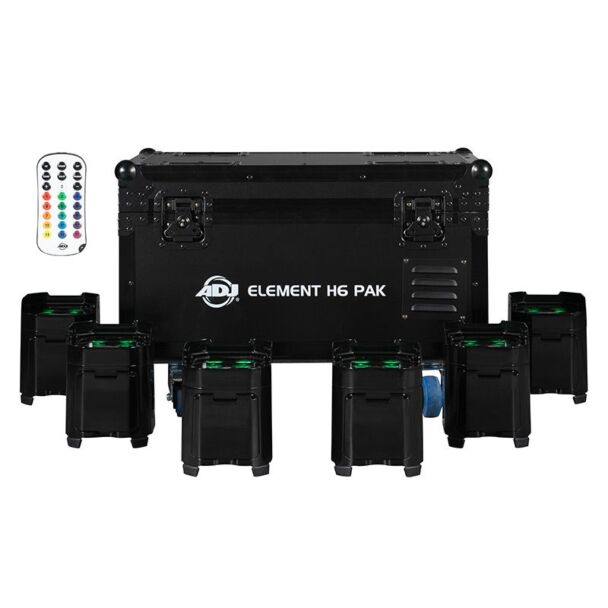

ADJ Element H6 Pak - 6 Pack Uplight System With Charging Case

SKU
ADJ-ELEMENT H6 PAK
Element H6 Pak includes:
• (6) Element H IP Black Fixtures
• (1) Element H6 FC charging Flight Case
• (6) Mirage Q6 IPCB Charging bases and power supplies
• (1) UCIR24 Wireless Infrared Controller
• (1) IP65 Locking Power Cable
Special Price $2,699.99 Regular Price $3,759.95
Account manager

Have a Question? Ask an Account Manager

The ADJ Lighting Element H6 Pak is an all-in-one event up lighting system with (6) IP54-Rated battery powered black fixtures in a durable flight case with on-board battery charging solution. Includes one UCIR24 wireless remote. Suitable for indoor and temporary outdoor use

Element H6 Pak includes:
• (6) Element H IP Black Fixtures
• (1) Element H6 FC charging Flight Case
• (6) Mirage Q6 IPCB Charging bases and power supplies
• (1) UCIR24 Wireless Infrared Controller
• (1) IP65 Locking Power Cable

Element H6 Pak Features:
• Houses / Transports and Charges (6) Element H IP™ fixtures

Element H6 Pak Dimensions / Weight (loaded case with 6 fixtures):
• Length: 26.42” (671mm)
• Width: 18.15” (461mm)
• Vertical Height: 17.76” (451mm)
• Loaded Weight: 84.66 lbs. (38.4 kg)

Pak Electrical / Thermal:
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 200 Watts
• Power Draw: 3A max
• Charge status indicator
• -4°F to 113°F (-20°C to 45°C)

Fixture Specifications

Optical:

• 4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 1117 @ 2M; 298 @ 4M
• Beam angle: 17.6°
• Field angle: 28.7°

Connection:
• DMX: Wireless DMX
• With Wired Digital Communication Network
• Contact Charging system. *Charging base and power supply included

Control:
• Control protocol: Wireless DMX
• 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
• Remote control: Wireless DMX, UC-IR (Included)
• 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control

Features:
• IP54 Rated: partial protection from dust and water splashes
• Built-in kickstand to angle fixture when sitting on the floor
• 4-touch button OLED display inside cover panel
• Built-in Aria X2 wireless DMX with signal LED indicator
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• Battery charge indicator on each fixture
• Energy Save Mode

Battery:
• Battery Type: fixed polymer lithium battery
• Battery Energy: 59.2WH (Watt Hours)
• Battery Weight: 0.24 kg.
• Battery Voltage: 14.8V
• Battery Capacity: 4000mAh (Typical Capacity)
• Total Lithium Ion Cells: 4 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 6 Hours
• Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single color)
• Easy to replace battery

Electrical:
• Power Draw Total (All LED's @ Full On): 20W
• Voltage operation: DC17V

Dimensions / Weight:
• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 5.3 lbs. / 2.4kg.

Certifications:
• cETLus pending
• CE pending
• IP54 Outdoor rated
More Information
ConditionNew
MPN (manufacturer part number)ELEMENT H6 PAK
UPC (Universal Product Code)810087371029
