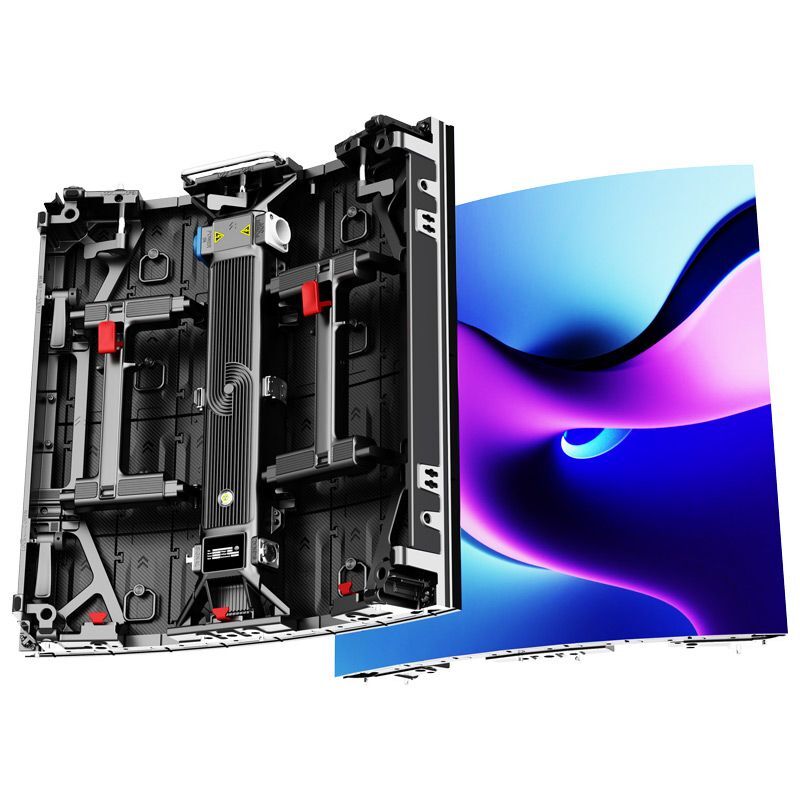

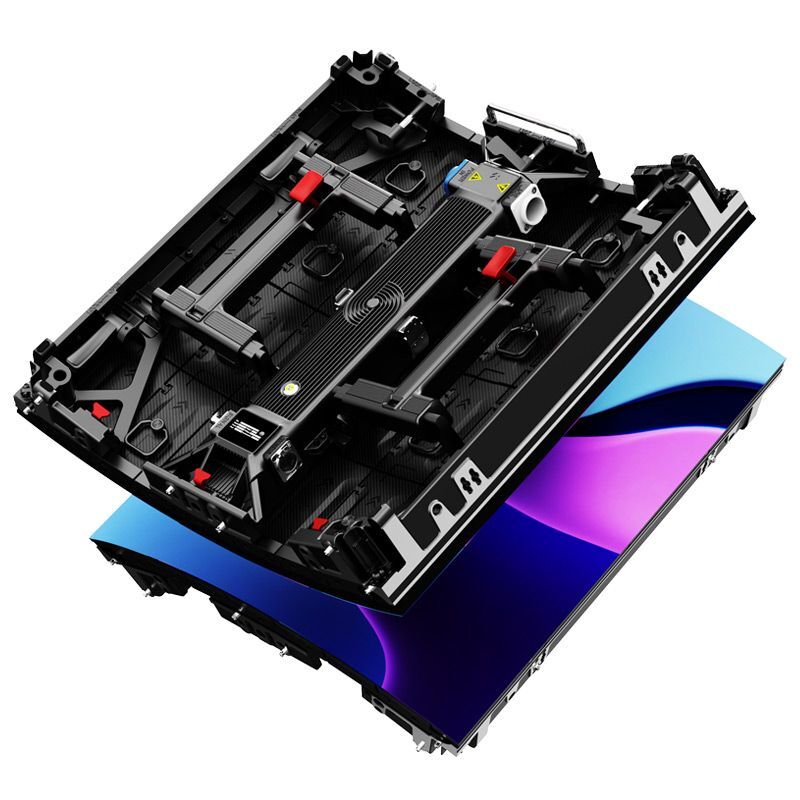

ADJ EVS3 FLEX45 - LED Video Panel System

The ADJ EVS3 FLEX45 is an LED video panel system designed for high-performance and professional visual displays. Here are some key features and applications:

Key Features:

1. High Resolution: Superior pixel pitch for detailed and sharp visuals.
2. Modular Design: Panels connect seamlessly, allowing custom configurations.
3. Flexibility: The "FLEX45" emphasizes adaptability, suitable for curved or angled designs.
4. Bright & Energy-Efficient LEDs: Excellent visibility even in bright settings.
5. Durability: Robust construction for both indoor and outdoor use.
6. User-Friendly Controls: Compatible with advanced control systems for creative visual programming.

Applications:

• Concerts and Live Events: Enhances stage backdrops with dynamic visual content.
• Retail Displays: Creates attention-grabbing visuals to engage customers.
• Broadcasting: Ideal for immersive studio designs.
• Exhibitions and Trade Shows: Showcases products or information innovatively.
• Corporate Installations: Elevates presentations and branding.

• Pixel Pitch: 3.91mm (0.15”)
• LED: Kinglight Copper, 3-in-1 SMD 2121
• Drive IC: ICN2153AP
• Pixel Density: 65536 per square meter
• Size: 19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
• Module Quantity: 4
• Module Resolution: 128x32 pixels
• Panel Resolution: 128x128 pixels
• Weight: 15.6 lbs. / 7.06kg



Features:



• Memory on Module (MOM): Enhanced functionality for seamless operation
• Corner Protectors: Safeguards corners during transport, setup, and teardown
• Rear Serviceable: Easily replaceable video modules ensure continuous performance





Mechanical Ratings:



• Surface Flatness: Gaps<0.5mm for a smooth visual experience





Optical Ratings:



• Brightness: 800 NITS for vivid, clear visuals
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) for wide coverage
• Gray Scale: ≥14-bit for precise color representation.
• Display Color: 256 for vibrant images
• Brightness Adjustment: 0~100% with 100 Levels for customizable viewing
• Contrast Ratio: 5000:1 for enhanced contrast
• Processing: 16-bit ensures seamless performance
• Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage





Power Supply:



• Operation Power: 100~240V 50-60Hz for global compatibility.
• Max. Power Consumption: 120W/per panel, conserving energy.
• Ave. Power Consumption: 48W/per panel for efficient operation.
• Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.





Control System:



• Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.
• Frame Update Frequency: 50-75Hz for smooth playback.
• Scan Mode: 1/16 for seamless scanning.
• Refresh Rate: 3840Hz ensures flicker-free visuals.
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.
• Support VGA Mode: Various resolutions supported for compatibility.
• Brightness Correction: Pixel, Module, Cabinet for precise adjustment.





Environmental:



• Operating Temperature: -4° to 104°F (-20° to +40°C) for reliable performance in diverse conditions.
• Operating Humidity: 10 - 90% (No Condensation) ensures stable operation.
• Storage Temperature: -40° to 176°F (-40° to +80°C) for safe storage.
• Storage Humidity: 10-90% (No Condensation) for long-term preservation.





Optional Accessories:



• VSFC8 (VS8100): Flight Case – Fits 8 EVS3 Flex45 Video Panels for secure transportation.
• FLEX45RB: Rigging Bar – Hang up to 20 EVS3 Flex45 Video Panels vertically for versatile setups.





Processors and Playback Software:



• Novastar VX4S, Novastar MCTRL-300, Novastar Nova Pro HD: Video Processors.
• Arkaos Media Master, Arkaos GrandVJ 2.0: Video Software.





Cables:



• Cabinet to Cabinet Data Link Cables, Indoor Power Locking Link Cables, Indoor Power Locking Main Power Cables for efficient connectivity.





Certifications:



• cETLus (PENDING) ensures compliance with safety standards.





IP Rating:



• Protection Level: IP20 (Front and Back) for reliable performance in indoor environments.
