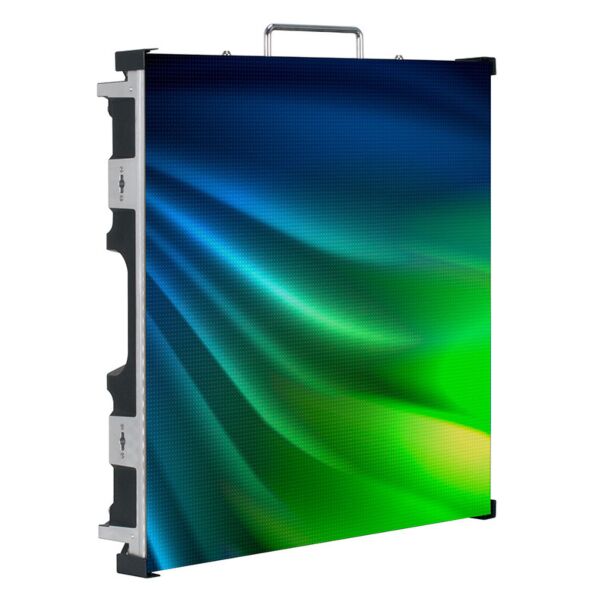

ADJ VS5 - 5.95mm Pixel Pitch LED Panel
Special Price $979.99 Regular Price $1,389.95
SKU
ADJ-VS5
| MPN (manufacturer part number) | VS5 |
|---|---|
| UPC (Universal Product Code) | 00818651028003 |
| Condition | New |
Frequently Bought Together
-
ADJ VS5 - 5.95mm Pixel Pitch LED PanelSpecial Price $979.99 Regular Price $1,389.95 -
American DJ Penta Pix - 15W RGBW LED 5-head beam effectSpecial Price $449.99 Regular Price $639.95 - ADJ Encore Profile Pro Color - RGBWAL EllipsoidalSpecial Price $1,299.99 Regular Price $1,899.95
- Chauvet Professional WELL STX 180 - Battery-Powered IP65 LED Tube KitSpecial Price $4,135.00 Regular Price $4,661.65
- JMAZ FIRESTORM F3 2 UNIT PACKAGE - Cold Spark MachineSpecial Price $2,199.99 Regular Price $3,079.99
- Total price
The VS5, part of the ADJ Vision Series Video Panels, has a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED. Each panel has four individual mini modules and is front and rear serviceable. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 Vision Series Video Panels vertically with the VSRB1 rigging bar.
ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.
The VS5 is a high-resolution video panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
VSseries
Specifications
SPECIFICATIONS:• Pixel Pitch: 5.95mm (0.23”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 84x84; 28224 per square meter
• Size :19.68” x 19.68” x 2.75” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.
FEATURES:
• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown
• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: cETLus (Pending)
OPTIONAL ACCESSORIES:
• VSFC8 (VS8100): Flight Case – Fits 8 VS Series Video Panels
• VSRB1 (VS1100): Rigging Bar – Hang up to 20 VS Series Video Panels vertically
• VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software
CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Power Locking Link Cables
• Power Locking Main Power Cables
