Special Price $499.00 Regular Price $599.00
Internal FX DuoPreTM EQ section USB audio flexibility SONAR LE - provided Free!

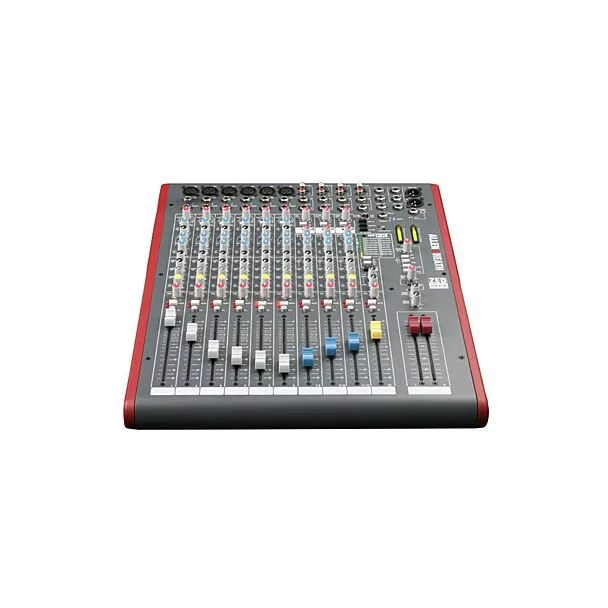

Allen & Heath ZED 12FX 12-Channel Recording Mixer with Effects In addition to the DuoPreTM mic pre-amps, 100mm faders and MusiQ EQ section which are shared with the whole ZED range, the ZED FX has 16 unique effects, designed by our DSP team, here in Cornwall. ZED FX ZED FX are easily controlled using 3 buttons and 9 LEDs. Quickly tap the ideal delay time or ‘dial-in’ the per fect amount of reverb on the lead vocal. One-stop navigation and editing… In fact, just as easy as your effects pedals. Hold down the TAP button and press the up or down button to alter the effects parameter, for example on patch (9) Plate, this would adjust the decay length. The ZED FX is designed to fulfil all the functions a small band would need without their own sound engineer. The layout and features have been arranged to be logical and instantly recognisable at a dark gig- a mixer you can trust to per form. The USB audio interface, with its uniquely flexible capability, allows different signals to be sent to USB, from LR or from selected aux buses. The USB return signal can be routed straight to the LR mix or to a stereo channel. The connectors are placed on the top surface for easy plugging & patching, and the construction, with individual circuit boards firmly nutted to the top panel, is as rock solid as Allen & Heath’s top of the range ML Series mixers.
|UPC (Universal Product Code)||06938122230828|
|MPN (manufacturer part number)||ZED12FX|
|Discount||INSTANT SAVINGS: 10% OFF|
|Features||Internal FX 16 separate effects have been crafted into the ZED-FX range. These include Delay and Reverb, Ping-Pong delay, a selection of reverbs with different room/hall/arena properties, a flanger and a chorus. All have been designed to complement the material the engineer is working with. Each of the effects has a parameter which can be altered: pre-delay can be adjusted, room sizes tweaked, and flanger speed dialled-in. Five of the effects can have their tempo tapped in, and the output auditioned by the FX PFL. Inputs One of the great things about the ZED series is the number and variety of things you can plug in. In addition to the six mono channels there are three dual stereo channels, each with a main stereo input on jack sockets, and with the ability to take additional stereo inputs from phono sockets or from the USB audio input, flexibility gives you control. 6 mic/line channels are provided on ZED-12FX - plenty for mics or DI boxes for a small band, duo or solo performer 4 stereo line inputs - dual inputs, both with gain and 2-band EQ DuoPreTM Based on the proven pre-amps from the hugely successful PA series, the ZED series has new DuoPreTM pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input. EQ section ZED-FX features a musical 3-band EQ derived from the acclaimed GL2400 mixer. The design utilises MusiQ - optimised slope (or Q factor) for equalising individual instruments. Auxiliary sends 4 aux sends are provided, of which 1&2 are prefade for foldback monitoring, and 3 & 4 post-fade for effects sends. A stereo signal can be sent from auxes via USB to computer to create 2 separate record feeds independent of the main LR mix (1&2) and or used as FX sends (3&4). USB audio flexibility Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way we have implemented this on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilising external FX. Build The ZED-12FX has been designed using individual vertically mounted circuit boards with each rotary control fixed with a metal nut to the front panel - making a much more robust product that will resist damage and give years of reliable use. ZED also has professional 100mm faders for ultimate control over your levels. SONAR LE - provided Free! We have teamed up with Cakewalk to bundle SONAR LE with this ZED mixer. The two team up together in many ways - for example straightforward recording of a stereo mix, recording tracks individually to build up a song, or for inserting a SONAR LE effects plug-in. Other features: Insert points High pass filter Stereo imaging control on every channel 3-band EQ with swept mid 4 auxiliary sends (2 pre, 2 post) Global 48V phantom power 3 dual stereo inputs with 2-band EQ Peak indication on every channel Configurable USB stereo audio in/out Master level controls on all outputs Easy to use layout – all connections and controls on top surface Cakewalk SONAR LE bundled with mixer channel mute switches stereo return 2-track return Advanced monitoring facilities ¼" and 3.5mm headphones outputs stereo record out alternative stereo out mono sum of LR output main LR 12-bar LR meters master controls for aux1&2 19" rack mounting kit available for ZED-12FX and ZED-14|
