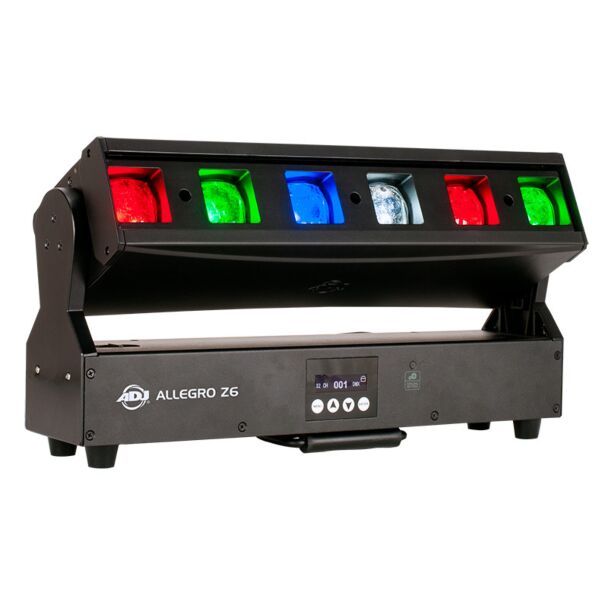

American DJ Allegro Z6 - 6x 30W LED Linear Fixture

Special Price $1,399.99 Regular Price $1,959.95


discount



SKU
ADJ-ALLEGRO Z6

-6 x 30W Quad 4-in-1 LEDs RGBW
-Motorized Zoom: 3.5 to 38°
-Motorized Tilt: 220°
-Flicker-Free Operation
-Strobe and Pulse Effects
-6 Individually Controlled Pixels

Quick moving linear fixture with 6 lenses with individual color control, motorized zoom (4 ~ 32-degrees), motorized tilt and strobe and pulse effects.

The ADJ Allegro Z6 is a linear fixture that features 6 lenses, motorized zoom and motorized tilt (220-degrees) on the X axis. It’s powered by six 30W Quad (4-IN-1) RGBW LEDs. Each LED’s color may be controlled individually. The fixture’s beam angle is adjustable between 4-degrees and 32-degrees.

The Allegro Z6 has a 4-button function display, 5-pin DMX In/Out to link data and locking power connectors to daisy chain power. The fixture also has RJ45 In/Out connections for Art-Net and Kling-Net control. There is a convenient USB input for updating the fixture’s firmware.

Specifications

Light Source:

• LED: 6x 30W QUAD (4-In-1) RGBW LEDs (30,000 hr.)

• Motorized Zoom: 4° ~ 32°

• LUX: 47,000 @ 2M, Zoomed in to 4°; 1,900 @ 2M, Zoomed out to 32°

Features:

• Motorized Zoom

• Tilt Lock for stable transporting

• USB Input for Updating Fixture Firmware

• Folding carrying handle

• Rubber feet so fixture can be set on the ground

• All metal construction with black housing

• Includes 2 Omega brackets for mounting to truss

• Flicker Free, 1200Hz PWM frequency

Construction:

• Display: OLED display with function buttons

• 5-pin DMX In/Out for data linking

• RJ45 In/Out for Art-Net & Kling-Net control

• Locking power In/Out to daisy chain up to 6 fixtures (@ 120V), 11 fixtures (@ 230V)

Control:

• Control Modes: DMX512, RDM, Art-Net & Kling-Net

• Multiple DMX channel modes

• Tilt & Tilt Fine: 220°

• Strobe & Pulse Effects

• 6 individually controlled Pixels

• 0-100% Dimming + 16-bit Fine Dimming

• 6 Preset Dim Curve Modes plus Dim Speed control

• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 240W max

Dimensions & Weight:

• Dimension (LxWxH): 19.6” x 4.5” x 11” / 500x113x278mm

• Weight: 21 lbs. / 9.5kg.

What's Included:

• Two Omega Brackets

• Locking power cord

More Information
SKU ADJ-ALLEGRO Z6
Freeshipping Free Shipping
UPC (Universal Product Code) 00818651026870
MPN (manufacturer part number) ALLEGRO Z6
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features No
Specs No
