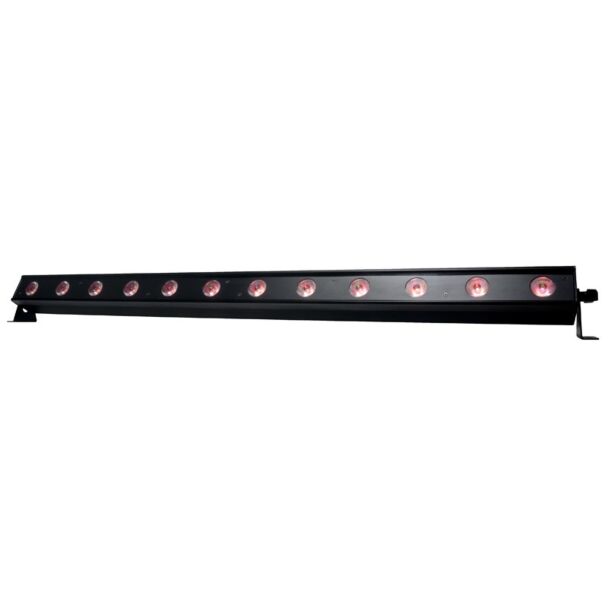

American DJ UB 12H - 1 Meter Linear Wash Light


-12 x 10W RGBAW+UV (6-In-1) HEX LEDs
-40° Beam Angle
-6 x DMX Channel Modes
-5 x Operation Modes
-35 x Built-In Color Macros
-LED Pulse & Strobe Effect
-3- or 6-Section Pixel Control
-4-Button LED Display
-Universal Auto-Sensing Power Supply
-Includes ADJ UC IR Wireless Remote

Special Price $309.99 Regular Price $349.95
Account manager

Have a Question? Ask an Account Manager

Professional grade indoor 1-meter linear fixture powered by twelve 6-Watt HEX LEDs. Includes UC IR wireless remote and magnetic interlocking end caps to attach fixtures together.

The ADJ UB 12H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by twelve 6-Watt HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

UB 12H features built-in Color Macros (built-in colors),  0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote included inside the box.


• 41.75-inch (1 meter) indoor Linear Bar with 12x 6W HEX LEDs (RGBAW+UV)

• Great for Stage or Wall Washing!

• 6 DMX Channel Modes: 3, 5, 6, 7, 8 or 20 channels

• 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode

• 3 or 6-Section Pixel control

• Patent Pending Quick Align (Magnetic)

• Beam Angle: 40 degrees

• Flicker Free

• 4-Button DMX LED Display

• 35 built-in Color Macros

• LED pulse & strobe effect

• Electronic Dimming: 0-100%

• Includes mounting brackets to mount on a wall

   or set on the ground

• Compatible with the ADJ UC IR wireless remote (included) and the Airstream IR APP

• Long Life LEDs (Rated at approximately

   50,000 hrs.)

• Power Draw: 43W

• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 13 UB 12H

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Dimensions (LxWxH): 41.75” x 2.5” x 3.75”/ 1060 x 63 x 90mm

• Weight: 6 lbs./ 2.7 kg.

More Information
MPN (manufacturer part number)UB 12H
UPC (Universal Product Code)00818651020441
