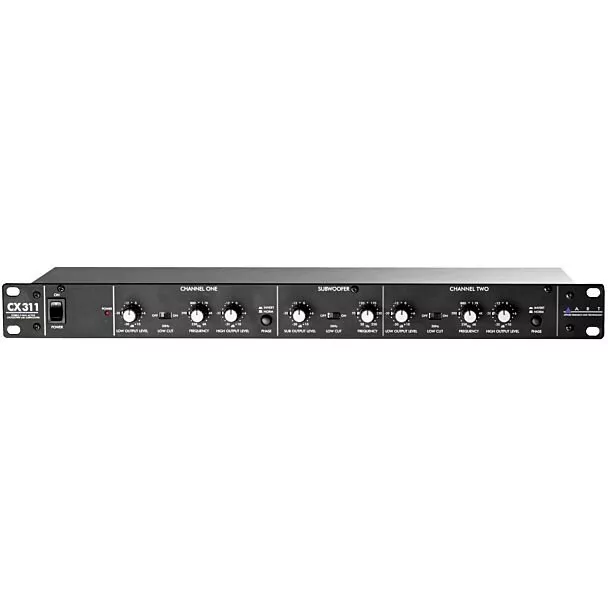

ART CX311 - 2-Way Crossover with Subwoofer Out

Special Price $109.00 Regular Price $169.00




SKU
ART-CX311

-Stereo 2-way crossover with subwoofer output -24dB/octave state-variable Fourth-order Linkwitz-Riley filters -Independent high and low output level controls

ART CX311 - 2-Way Crossover with Subwoofer Out

The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region.

Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz). All three outputs have a 30 cycle low cut switch to eliminate low-end rumble. The subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range.

More Information
SKU ART-CX311
Freeshipping Free Shipping
UPC (Universal Product Code) 00840402019183
MPN (manufacturer part number) CX311
Discount No
Condition New
Features -Stereo 2-way -Subwoofer output -30-cycle low-cut switch -24dB/octave state-variable, fourth order, Linwitz-Riley filters
Specs
Specification Detail
Number of Channels 2 Channels
Modes 2-way
Filter Types Linkwitz-Riley
Filters 24 dB/Octave
Crossover Frequencies - Stereo 250hz to 6khz
Inputs 2 x XLR, 2 x 1/4"
Outputs 4 x 1/4" 1 x 1/4" (Sub Out)
Rack Spaces 1U
Height 1.75 inches
Depth 6.5 inches
Width 19 inches
Weight 5 lbs.
Manufacturer Part Number CX311
Producut Video No
