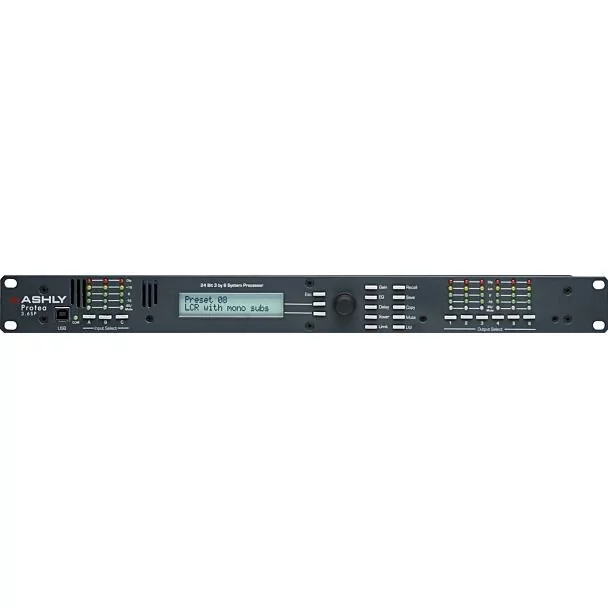

Ashly 3.6SP Protea 3x6 Speaker Processor

Special Price $749.00 Regular Price $985.00

discount



SKU
ASHLY-3.6SP

-3 Input, 6 Output -Extensive Digital Processing -24-Bit 49kHz A/D Converters -Built-in Limiter -Crossover, EQ and Delay -USB and RS-232 Interface
Ashly 3.6SP Protea 3x6 Speaker Processor The Ashly Protea 3.6SP 3-Input, 6-Output Digital Speaker Processor delivers enhanced DSP processing, superb audio quality and flexible control features for professional sound reinforcement in touring, venue installations, nightclubs, large theater sound systems and more. The Protea 3.6SP features 24-Bit A/D converters and an array of DSP functions that include crossover, time delay features, compression, limiting, feedback control features and much more. An intuitive back-lit LCD display helps navigate through the its extensive feature set and is also easy to see in dimly lit venues. The 3.6SP will store up to 30 total presets. A preset file takes a "snapshot" of all current settings and stores complete control data for all channels and all audio functions
More Information
SKU ASHLY-3.6SP
Freeshipping Free Shipping
UPC (Universal Product Code) 694970192362
MPN (manufacturer part number) 3.6SP
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features • One Rack Space • Three Inputs - Six Outputs • Extremely Intuitive User Interface • Crossover, EQ, Delay and Limiter Functions • Outputs Assignable to Any Input • Superior Sonic Quality • Front Panel or PC Programming and Control • USB and RS-232 Interface • Third Party Control Friendly • XLR Audio Connections • Balanced Inputs and Outputs • Parametric Filters and Comp/Limiter to Control Feedback Problems • Linkwitz-Riley, Bessel and Butterworth Filters • 12, 18, 24 and 48dB/Octave Slopes • Parametric EQ: 1/64th to 4 Octave Range • 682ms Input and Output Delay • Limiter on Each Output • Individual Input and OutputMetering • Four Levels of Security
Specs Input Active Balanced, 18 kohms Crossover High Pass Filter Type Linkwitz-Riley, Bessel, Butterworth Max Input Level +20dBu Crossover High Pass Filter Slope 12, 18, 24 and 48dB/Octave Input Gain Range +12/-40dB, 0.1dB Increments Crossover High Pass Filter Range Off to 21.98KHz, 245 step incr Output Active Servo Balanced, 100 ohms Crossover Low Pass Filter Type Linkwitz-Riley, Bessel, Butterworth Max Output Level +20dBu Crossover Low Pass Filter Slope 12, 18, 24 and 48dB/Octave Output Gain Range +12/-40dB, 0.1dB Increments Crossover Low Pass Filter Range Off to 21.98KHz, 245 step incr Polarity 0 or 180 degrees Compressor/Limiter Threshold -20dBu to +20dBu, 1dB incr Frequency Response 20 Hz-20kHz, ±0.25 dB Compressor/Limiter Ratio 1.2, 1.5, 2, 3, 4, 6, 10, 20:1, Infinite:1 THD <0.01% @1 kHz, +20 dBu Compressor/Limiter Attack 0.5ms to 50ms per dB Dynamic Range >110 dB (20 Hz-20 kHz) unweighted Compressor/Limiter Release 10ms to 1Sec per dB Output Noise <-90 dBu unweighted Compressor/Limiter Range 20Hz to 10.6KHz EQ Filters 6 per input | 4 per output Input A/D 24 bit Parametric EQ Bandwidth 1/64th Octave to 4 Octave Output A/D 24 bit Parametric EQ Range +15/-30dB, 0.1 dB incr Processor 24 bit, 56 bit accumulator Frequency Resolution 1/24th octave Sample Rate 48KHz High-Shelf EQ Slope 6 or 12dB/Octave Propogation Delay 1.46ms High-Shelf EQ Frequency Range 19.7Hz to 2Khz Power Requirements 90-240VAC, 30W High-Shelf EQ Range +/-15dB, 0.1dB incr Shipping Weight 13lbs (Maximum) Low-Shelf EQ Slope 6 or 12dB/Octave Dimensions 19.0”W x 3.5”H x 8.5”D Low-Shelf EQ Frequency Range 3.189Khz to 20.159KHz Connections XLR Low-Shelf EQ Range +/-15dB, 0.1dB incr Environmental 40-120 deg. F (4-49 deg. C) noncondensing Maximum Input Delay 682ms, 20uS incr Maximum Output Delay 682ms, 20uS incr Delay Increment 20uS
