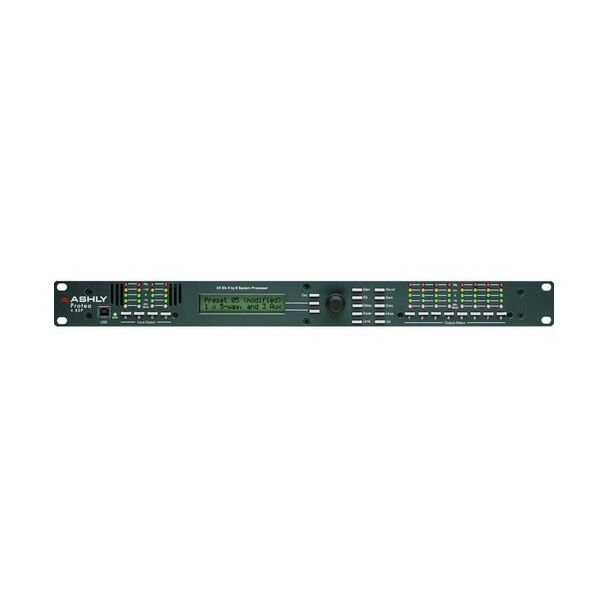

Ashly 4.8SP - Protea 4x8 Speaker Processor

Special Price $999.00 Regular Price $1,430.00

discount



SKU
ASHLY-4.8SP

-4 Input, 8 Output -Extensive Digital Processing -24-Bit 49kHz A/D Converters -Built-in Limiter -Crossover, EQ and Delay -USB and RS-232 Interface

Ashly 4.8SP - Protea 4x8 Speaker Processor

The Ashly Protea 4.8SP 4-Input, 8-Output Digital Speaker Processor delivers enhanced DSP processing, superb audio quality and flexible control features for professional sound reinforcement in touring, venue installations, nightclubs, large theater sound systems and more.

The Protea 4.8SP features 24-Bit A/D converters and an array of DSP functions that include crossover, time delay features, compression, limiting, feedback control features and much more.

An intuitive back-lit LCD display helps navigate through the its extensive feature set and is also easy to see in dimly lit venues. The 4.8SP will store up to 30 total presets. A preset file takes a "snapshot" of all current settings and stores complete control data for all channels and all audio functions.

More Information
SKU ASHLY-4.8SP
Freeshipping Free Shipping
UPC (Universal Product Code) 694970192362
MPN (manufacturer part number) 4.8SP
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features -One Rack Space -Four Inputs - Eight Outputs -Extremely Intuitive User Interface -Crossover, EQ, Delay and Limiter Functions -Outputs Assignable to Any Input -Superior Sonic Quality -Front Panel Or PC Programming and Control -USB and RS-232 Interface -Third Party Control Friendly -XLR Audio Connections -Balanced Inputs and Outputs -Parametric Filters and Comp/Limiter to Control Feedback Problems -Linkwitz-Riley, Bessel and Butterworth Filters -12, 18, 24 and 48dB/Octave Slopes -Parametric EQ: 1/64th to 4 Octave Range -682ms Input and Output Delay -Limiter on Each Output -Individual Input and Output Metering -Four Levels of Security
Specs
Filter Type Linkwitz-Riley, Bessel, Butterworth
Crossover Frequencies Off to 21.98KHz, 245 step incr
Gain Range +12/-40dB, 0.1dB Incr
Inputs 3-pin XLR Female x4
Outputs 3-pin XLR Male x8
Maximum Input Level +20dBu
Maximum Output Level +20dBu
Frequency Response 20Hz - 20KHz,+/-0.25dB
Dynamic Range >110dB (20Hz-20KHz) unweighted
Noise < - 90dBu unweighted
Dimensions (WxDxH) 19.0 x 3.5 x 8.5"
Weight 13 lbs (shipping)
