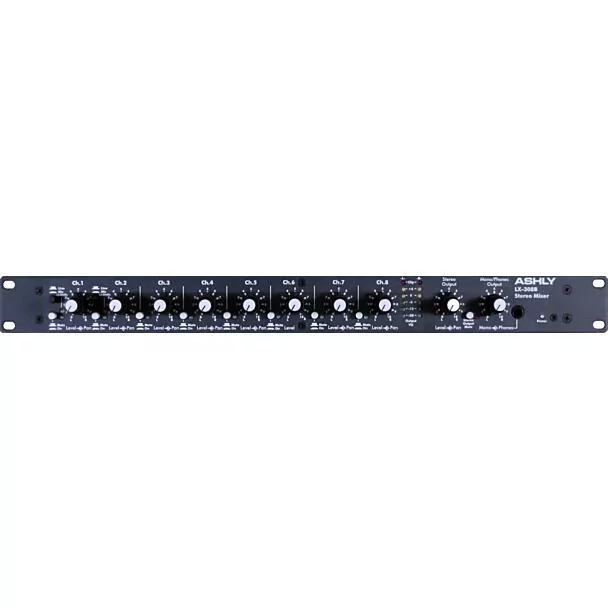

Ashly LX-308B (B-STOCK)

SKU
ASHLY-LX-308B-B
Special Price $799.00 Regular Price $899.00
Account manager

Have a Question? Ask an Account Manager

Ashly LX-308B 8-Input Stereo Line Mixer
The Ashly LX-308B is a true stereo eight channel line level mixer (it may also be used as a sixteen channel mono mixing unit). The LX-308B can be used on its own any time stereo line level sources need to be combined together. Some typical applications for the LX-308B would include boardroom sound systems, multimedia sound distribution, broadcast studios, mobile broadcast units, satellite downlink distribution, and live sound reinforcement or studio sessions.

Each input of the LX-308B has a pair of balanced 1/4" TRS line input jacks, with level and pan controls on the front panel. All inputs may be used either balanced or unbalanced. Channels one and two are switchable for mic or line level to allow the use of microphones directly into those inputs without the need for separate preamplification. An input on/off switch with LED status indicator provides for convenient channel muting when needed. Two five-segment LED meters indicate Left and Right stereo output. Green LED's are used below 0 VU, yellow above 0 VU, and red LED's indicate clipping. The Left and Right clip indicators monitor all internal amplifiers to warn of any possible overload distortion.

The LX-308B has both Left and Right outputs on 1/4" TRS phone jacks (all outputs may be used either balanced or unbalanced). Left and Right level controls, variable panning and stereo mute switch are found on the front panel, as is the overall level adjustment for the independent Mono summed output. Stereo headphones may be conveniently connected to the front of the mixer, and this output has its own level control. Pre-Master sub inputs and outputs may be used for linking the LX-308B to other mixers, such as the Ashly MM-508 eight input stereo microphone model.

The LX-308B provides precise line-level mixing control in a single space rack-mountable package. Rugged, versatile, and backed by Ashly's exclusive Five Year Worry-Free Warranty, the LX-308B will provide years of reliable performance in applications demanding the very finest in professional audio quality.

DISTORTION
THD at +20 dBu, 20Hz-20KHz, input switch at -40dB <0.02%
IMD (SMPTE) at +20dBu <0.01%

HUM & NOISE (20Hz-20Khz)
Residual output noise, all levels at minimum <-98dBu
MASTER OUT, MASTER LEVEL and one INPUT LEVEL at unity gain <-90dBu

VOLTAGE GAIN (dB ± 1)
INPUTS or SUB INPUTS to MASTER OUTPUTS (levels at nominal) 0dB
INPUT to MASTER OUTPUT (levels at max) 25dB
Ch.1 or Ch.2 INPUT in MIC position to MASTER OUTPUTS 56dB
SUB INPUTS to MASTER OUTPUTS (master level at max) 18dB

Frequency Response - 20Hz-20Khz ±0.2dB

INDICATORS
VU METERS - Two 6-segment LED meters 0VU = +4dBu

PEAK INDICATORS
Peak Clip indicators illuminate 3dB below clipping

SHIPPING WEIGHT 13 lbs. Maximum

POWER REQUIREMENTS 100-240 Volts, 50-60 Hz, 12 watts

DIMENSIONS:
19" wide x 1.75" high x 8.0" deep.

More Information
ConditionUsed
MPN (manufacturer part number)LX308B
UPC (Universal Product Code)0 844635000000
