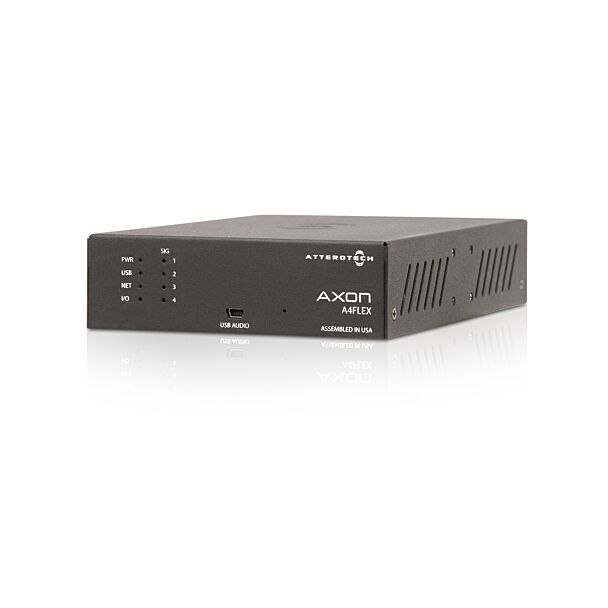

Attero Tech by QSC Axon A4FLEX - AES67 Networked Audio Interface

Account manager

Have a Question? Ask an Account Manager

The Attero Tech by QSC Axon A4FLEX is a compact and scalable mic/line connectivity solution for the Q-SYS™ Ecosystem and other third-party AES67 networked audio systems. It features four mic/line inputs (two of which are software-configurable as outputs), USB and AES67 audio and control interfaces, logic I/O and a two-channel power amplifier.

The Axon A4FLEX is equally suited to act as a standalone integration solution for the huddle space, small conference room or network audio I/O endpoint for a networked AV&C system in a wide range of applications.



Key Features

  • AES67 audio networking or standalone operation with network control
  • 4 x 0, 3 x 1, 2 x 2 mic/line analog audio I/O
  • 2 x 2 USB audio interface, configurable device name and terminal type
  • Available fixed architecture DSP
  • 2 x 10 W power amplifier output (2 x 5 W on PoE+)
  • 1/3 RU with table and rack mounting accessories
  • PoE+ powered
  • Configurable and network assignable logic I/O
  • Available Q-SYS control plugin – no programming required

Specifications:

Audio Inputs (Mic/Line)
Connector type3.81 mm Euro-block, 3 position (16-28 AWG)
Gain-8 dB to +34 dB gain, 1 dB increments
Maximum input level-8 dB Gain, max input = +16.5 dBu (+24 dBu w/pad)
Phantom power+48 V, software selectable per channel
Audio Outputs (mic/line)
Connector type3.81 mm Euro-block, 3 position (16-28 AWG)
Maximum output levels+24 dBu (-15.5 dBU w/pad)
Phantom power+48 V, software selectable per channel
Dynamic range100 dB
Network
Connector (s)Dual RJ-45
Cable qualityCAT-5e or better, UTP
Transmission speed1 Gbps
General
Dimensions (HWD)1.6 x 5.4 x 7.9 in
(41 x 137 x 200 mm)
Weight1.8 lb (0.83 kg)
Mounting optionsRack-mountable, 1 RU 1/3-rack width
Surface-mountable
*All mounting hardware offered as accessories

More Information
ConditionNew
MPN (manufacturer part number)A4FLEX
