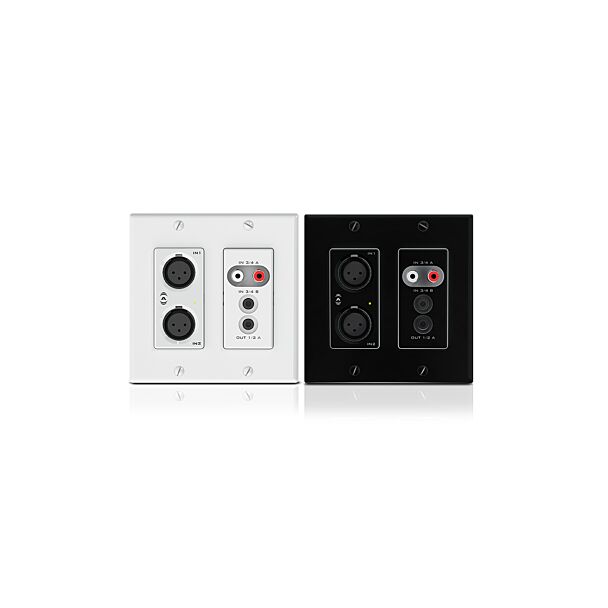

Attero Tech by QSC unD6IO - Dante Networked Audio Wall Plate
$1,100.00
SKU
ATQSC-UND6IO
-4x2 Channel Dual Gang US
-Dante/AES67 Wall Plate
-2 Mic/Line In (XLR), RCA, 3.5 mm I/O, PoE
-white and black faceplates included
| MPN (manufacturer part number) | unD6IO |
|---|---|
| Condition | New |
Frequently Bought Together
-
Attero Tech by QSC unD6IO - Dante Networked Audio Wall Plate$1,100.00 -
- Rane RAD26 - One Room RAD Remote$699.00
-
- DBX ZC2 Wall-Mounted Zone ControllerSpecial Price $69.00 Regular Price $71.00
- Total price
The Attero Tech unD6IO is a cost-effective, multi-IO Dante network audio wallplate, featuring XLR, RCA and 3.5 mm inputs along with one 3.5 mm and two balanced outputs in a dual-gang form factor. The unD6IO is PoE enabled, delivering all connectivity (power, control and audio data) with a single CAT-5e/6 cable. The size and I/O density of the unD6IO make it easy to put Dante connectivity wherever it is needed - near the audio source or sink - thereby eliminating costly and interference-prone analog wiring.
Features & Benefits
- 2 x balanced XLR mic/line inputs, 2 x RCA and 1 x 3.5 mm input
- 1 x 3.5 mm output and 2x balanced outputs on a side-mounted depluggable connector, with software-controllable volume
- Q-SYS control plugin enables easy integration into the Q-SYS Ecosystem
- PoE capable
- Three software-selectable gain levels are available on the XLR input to accommodate a wide variety of input levels and devices.
- +48 V phantom power
- Dante Domain Manager-ready
| Audio Inputs | |
| Input types | 2 x XLR (balanced and RF filtered) 2 x RCA (stereo unbalanced) 1 x 3.5 mm (stereo unbalanced) |
| Gain | -18 dB, -3 dB, +25 dB and +40 dB, software selectable (Inputs 1/2) |
| Maximum input levels | +20 dBu @ -18 dB gain, +6 dBu @ - 3 dB gain, -23 dBu @ +25 dB gain -38 dBu @ +40 dB gain (Inputs 1/2) +12 dBu ( Inputs 3/4 A & B) |
| Phantom power | +48 V (inputs 1 & 2 only) |
| Audio Outputs | |
| Output type | Two balanced line level with automatic muting on loss of Dante signal on 6-pin Depluggable Euroblock (Outputs 1/2 B) Two unbalanced line level outputs on stereo 3.5 mm TRS (Outputs 1/2 A) |
| Attenuation range | -60 dB to 0 dB (software-controlled) |
| Maximum output levels | +12 dBu at 0 dB attenuation (output 1/2 A) +20 dBu at 0 dB attenuation (output 1/2 B) |
| Dante Network | |
| Physical level | Standard Ethernet |
| Connector | Single RJ-45 |
| Cable type | CAT-5e or higher |
| Supported sample rates | 44.1 kHz, 48 kHz |
| General | |
| Power | PoE (802.3af) |
| Dimensions (HWD) | 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm) |
| Weight | 0.6 lb (.27 kg) |
| MPN (manufacturer part number) | unD6IO |
|---|---|
| Condition | New |
