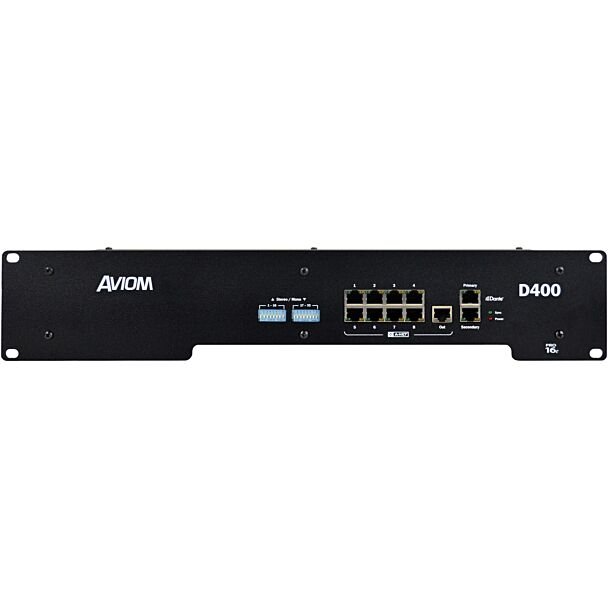

Aviom D400-Dante A-Net Distributor

Name: Aviom D400-Dante A-Net Distributor
Brand: Aviom
SKU: AVIOM-D400-DANTE
Price: 1199 USD
Availability: InStock

Be the first to review this product

Special Price $1,199.00 Regular Price $1,599.00

SKU

AVIOM-D400-DANTE

Manufacturer:

More Information
MPN (manufacturer part number)	D400-DANTE
Condition	New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

Aviom D400-Dante A-Net Distributor
Special Price $1,199.00 Regular Price $1,599.00
DBX 1261m ZonePRO 12x6 Digital Zone Processor
$1,050.00
Symetrix Jupiter 8 - 8x8 App Configurable DSP
$1,830.00
Allen & Heath AHM-16 - Audio Matrix Processor with 8x8 I/O
$1,199.00
DBX 1260 ZonePRO 12x6 Digital Zone Processor
$1,069.00

Total price

Details

The D400 and D400-Dante A-Net Distributors provide the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.

The standard D400 has an A-Net input, perfect for using with analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels (at 44.1/48kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.

The D400 and D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Building a System with the D400 and D400-Dante

Connecting to Analog or Digital Consoles

For personal mixing systems that use one or more analog input modules (AN-16/i v.2, AN-16/i-M, or legacy AN-16/i) or an A-Net console card (such as the Y1 A-Net Card for Yamaha digital consoles), use the standard D400.

With one Pro16 A-Net In and eight powered A-Net Outs, you can provide power and audio for up to eight Aviom Personal Mixers. And the D400 includes an unpowered A-Net Out as well, perfect for connecting additional A-Net Distributors for systems with more than eight Personal Mixers

Connecting to Dante

If your audio system uses Dante audio networking, the D400-Dante is a great choice for basic connectivity to a Dante network.

The D400-Dante allows you to select any 32 channels from your 44.1/48kHz Dante network and assign them to your Aviom Personal Mixers using the Dante Controller application from Audinate.

Grow your system

If you need more than eight Personal Mixers, both the D400 and the D400-Danteinclude an A-Net Out port—perfect for sending the incoming audio stream (regardless of its original source) to additional A-Net Distributors. There is no practical limit to the number of A-Net Distributors and Personal Mixers that you can use in a system

Technical Specifications

D400 and D400-Dante Common Specifications

A-Net Out to Personal Mixers	Eight RJ45 connectors, powered; Compatible with A-16II, A320, and A360 Personal Mixers
A-Net Out	Pro16e A-Net; RJ45 connector, unpowered Supports system expansion and the A-16II, A320, and A360 Personal Mixers
LEDs	Power On (red); Network Sync (green)
Stereo Link	Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers	24VDC, 0.5 amp; Transmitted over the Cat-5e cable
A-Net Cables	Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all other network connections
Power Supply	Internal, IEC connector
Input Voltage	100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
AC Fuse Types	115V range: T2.5AL/250V, slow-acting 230V range: T1.25AL/250V; slow-acting
Dimensions	19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
Weight	12.0 lbs (5.44 kg)

D400-Dante Specifications

Dante Interface	32 channels (44.1/48kHz Sample Rate only)
Dante Primary I/O	RJ45 connector
Dante Secondary I/O	RJ45 connector
Dante LEDs	Network Activity (green); 1GB Network Connection Active (yellow)
Static IP support	Yes
AES67 Support	Yes

D400 A-Net Distributor Specifications

A-Net Input	Pro16e A-Net; RJ45 connector
A-Net Offset Base Slot	3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
