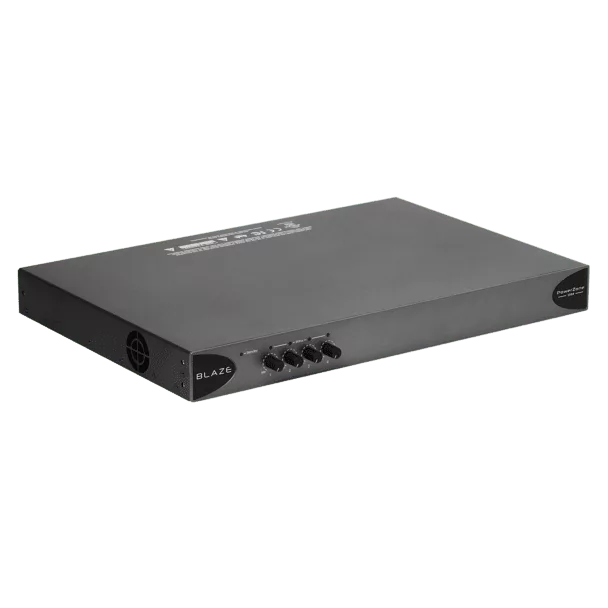

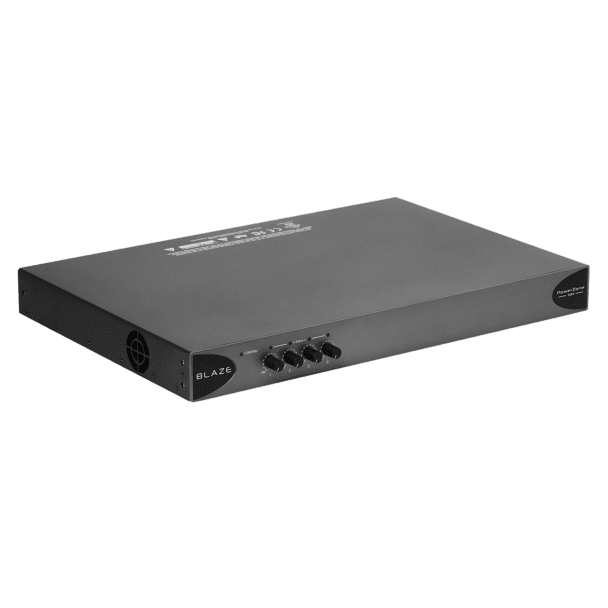

BLAZE PowerZone 1004 - 4-Channel 1000W Class-D Amplifier

The Blaze Audio PowerZone™ 1004 is a high-performance, 4-channel commercial amplifier designed for professional audio installations. It belongs to the PowerZone series by Blaze Audio, which is known for offering flexible, reliable, and powerful audio amplification solutions for various applications.

Key Features:
4-Channel Configuration:

Delivers up to 4 x 1000W at 4Ω/8Ω, and 4 x 1250W at 70V/100V.
Provides flexibility to power multiple zones or areas simultaneously.
Direct Drive for 70V/100V:

Supports high-impedance (70V/100V) as well as low-impedance (4Ω/8Ω) configurations, making it suitable for large-scale audio distribution in commercial venues.
Energy Efficiency:

Class-D amplification ensures high efficiency and minimal heat generation.
Auto-standby mode to save energy when not in use.
DSP Control:

Built-in DSP (Digital Signal Processing) allows precise tuning of audio output, including features like equalization, delay, and crossover settings.
Remote configuration and control via a web-based interface or Blaze Audio’s PowerZone Connectsoftware.
Flexible Input/Output Options:

Equipped with Euroblock connectors for easy wiring in professional installations.
Offers line-level inputs and outputs for integration with existing audio systems.
Compact Design:

1U rack-mountable design for easy integration into AV racks, making it ideal for tight spaces in commercial installations.
Use Cases:

Suitable for a wide range of applications, including restaurants, bars, retail stores, corporate AV, hotels, houses of worship, and educational institutions.
This amplifier offers robust performance, versatile input/output options, and easy control, making it an excellent choice for professionals handling multi-zone audio distribution.

Let me know if you need more technical details or specifics on installation.

Features
Compact 1U form factor.
Hybrid power distribution in both Lo-Z and Hi-Z.
Powered by Pascal UMAC™ Class-D technology.
Eight-position DIP switch for operational configuration, including locking front panel gain control.
GPIO interface for remote volume and standby.
ErP and Energy Star compliant.
UL listed audio equipment.

Output Power @ 4/8Ω    4 x 250 W
Output Power @ 70/100V*    4 x 250 W
Total System Power    1000 W
Power Consumption    300 W
Dimensions    44.5 x 440 x 292 mm
1.75 x 17.32 x 11.50 in
Weight    3.6 kg | 7.9 lbs
