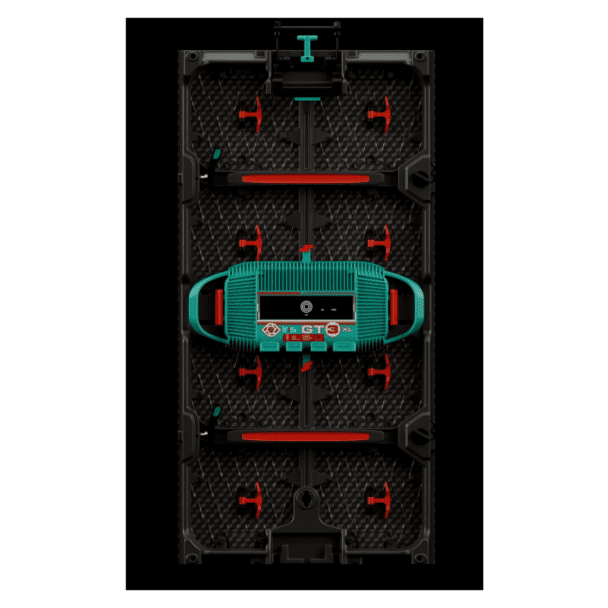

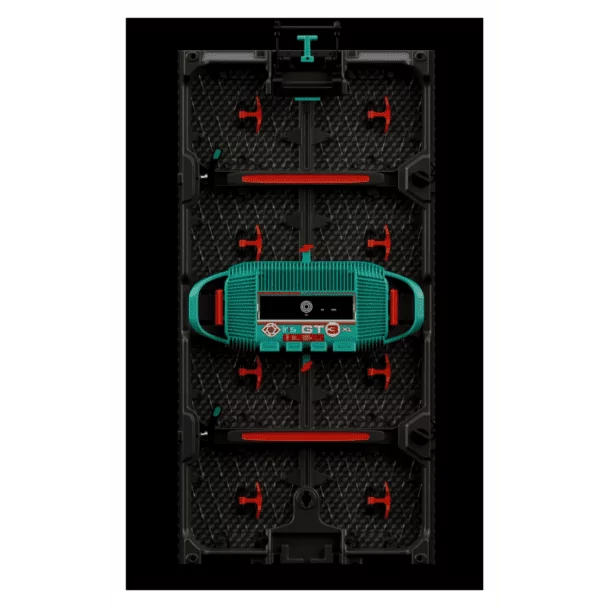

Blizzard IRIS-GT3-XL -Outdoor rated LED video panel

Combine 500mm GT3™ & 1m GT3™ XL panels in the same display for ultimate flexibility.

ANY TOUR, ANY STAGE
Form perfectly linear or curved displays (±10°) with the GT Series' two-step locking system – panel mechanics that work with you, not against you.

PANEL INFO
SPECS
BRIGHTNESS
4500 Nit

CERTIFICATIONS
FCC, ETL, CE, RoHS

COLOR DEPTH
14 Bit

CURVATURE
±10°

GRAYSCALE
22 bit+ / Clearview

HDR
HDR10-Optima / HLG

IP RATING
IP65 (front) / IP54 (rear)

INPUT POWER
1,000 W/m2

LED CONFIGURATION
SMD 1921 3-in-1

LIFESPAN
100,000 Hours

MAX POWER USAGE
400W

MODULE QUANTITY
2 x 2

PANEL DIMENSIONS
500 x 1000 x 80.6 mm

20.5 lbs.

PANEL RESOLUTION
128 x 128

PIXEL DENSITY
65,536 Dots/m2

PIXEL PITCH
3.9 mm

RECEIVING CARD
NovaStar™ A8s-N

(Customizable with Brompton processing)

REFRESH RATE
≥3,840 Hz

SCAN MODE
1/16

PRIMARY USAGE
Touring

SERVICEABILITY
Front and Back

SPECIAL FEATURES
Two-Step Locking, Tour Cart

WARRANTY
7 Year

WORKING HUMIDITY
10% - 90% RH

WORKING TEMP
-20° ~+50℃
