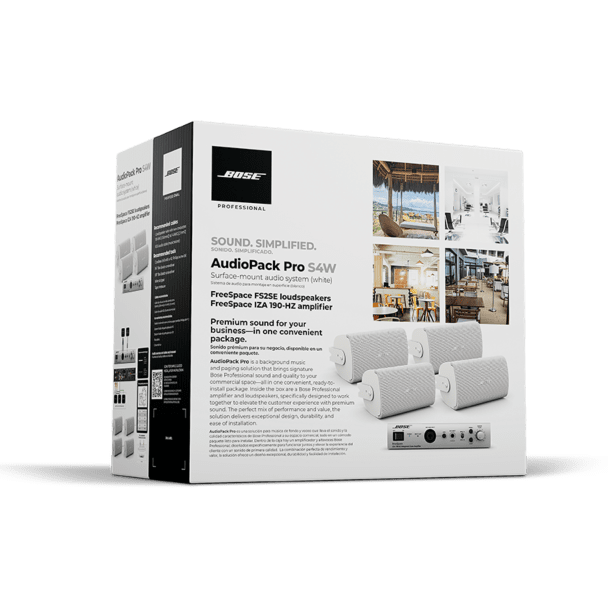

Bose Professional AudioPack Pro S4W- 4x Surface-Mount Audio System
Applications
Designed for a wide range of applications, including:
-
Small businesses
-
Cafés and coffee shops
-
Retail stores
-
Restaurants
-
Offices
-
Salons and spas
-
Schools
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
The Bose Professional AudioPack Pro S4W likely refers to a packaged solution or a component from Bose's professional audio lineup, specifically designed for high-quality sound in commercial and professional settings. The "S4W" may indicate a surface-mounted loudspeaker model or similar product. While specifics on this exact model aren't readily available, here's a breakdown based on Bose's typical offerings and naming conventions:
General Features of Bose Audio Solutions:
-
S4W Specifications (Hypothetical):
- Type: Surface-mount loudspeaker, suitable for wall or ceiling installation.
- Power Handling: Compatible with 70V/100V systems and low-impedance (direct-drive) configurations.
- Driver Configuration: Likely includes a high-performance full-range or coaxial driver for smooth sound reproduction.
-
Professional Applications:
- Designed for distributed audio systems.
- Ideal for background music, paging systems, or foreground sound in retail spaces, corporate settings, hospitality venues, and public areas.
-
Ease of Installation:
- Includes versatile mounting hardware for wall or ceiling installation.
- Tool-less connections for faster setup.
-
Design:
- Compact and modern aesthetic to blend seamlessly with commercial décor.
- Typically available in black or white finishes.
-
Audio Quality:
- Bose’s proprietary speaker technologies ensure clear, consistent sound across a wide coverage area.
Technical Specification
AMPLIFICATION
-
Channel Separation (Crosstalk)
-
≤ -60 dBV below rated power, 1 kHz
-
Dynamic Range
-
88 dB
-
Frequency Response
-
60 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
-
Number of Channels
-
2
-
Power Class
-
Class D
-
Rated Power, Symmetrical
-
90 W at 70V, 100V
-
THD+N
-
≤ 1% at full rated power
AUDIO INPUTS, ANALOG
-
Adjustment Range
-
-20 dB to +20 dB, line / 0 dB to +50 dB, mic/line / 0 dB to +50 dB, page / fixed, auxiliary
-
Input Channels
-
2 unbalanced, line + 1 balanced, mic/line + 1 balanced, mic (page) + 1 unbalanced, line (auxiliary)
-
Connectors
-
(1) RCA stereo pair, (1) XLR-1/4-in combo, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
-
Input Impedance
-
20 kΩ, line / 2 kΩ, mic/line / 2 kΩ, page / 20 kΩ, auxiliary
-
Input Range
-
-10 dBV to +10 dBV, line / -60 dBV to +10 dBV, mic/line / -60 dBV to +10 dBV, page / 0 dBV to +10 dBV, auxiliary
-
Maximum Input Level
-
+10 dBV
-
Nominal Input Level
-
0 dBV, line / -40 dBV, mic/line / -40 dBV, page / 0 dBV, auxiliary
-
Sensitivity
-
0 dBV, auxiliary / N/A, line, mic/line, page
AUDIO OUTPUTS, ANALOG
-
Channels
-
1
-
Connectors
-
(1) 3-pin inverted Euroblock, (1) RCA stereo pair
-
Output Impedance
-
N/A (amplifier) / 400 Ω (auxiliary)
PHYSICAL
-
Colors
-
White (similar to RAL 9003)
-
Cooling System
-
Natural convection
-
Enclosure Material
-
Engineered plastics, highly UV fade-resistant
-
Grille
-
Perforated steel, powder-coated finish, tamper-resistant design
-
Ingress Protection
-
IP55 (loudspeakers only)
-
Logo
-
Removable
-
Net Weight
-
3.2 lb (1.4 kg), loudspeaker with grille & bracket (single) / 7.0 lb (3.2 kg), amplifier
-
Operating Temperature Range
-
-25 °C to 70 °C (-13 °F to 158 °F)
-
Rack Spaces
-
1 RU high, half rack wide
COMPLIANCE
-
EN 54-24 Certified
-
Yes
ELECTRICAL
-
Current Draw, Inrush
-
7.6 A at 120 VAC, 60 Hz / 13.9 A at 230 VAC, 50 Hz
-
Mains Connector
-
IEC C14 inlet
-
Mains Voltage
-
100–240 VAC (±10%), 50/60 Hz
-
Protections
-
High temperature, short circuit
-
AC Power Consumption
-
15 W idle, 200 W maximum
INDICATORS AND CONTROLS
-
Controls, Front Panel
-
(1) power switch, (1) input selection switch, (1) treble knob, (1) bass knob, (1) mic/line gain knob, (1) master level knob
-
Controls, Rear Panel
-
Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim
-
LED Status Indicators
-
(1) power LED, (1) input clip LED
INTEGRATED DSP
-
A/D and D/A Converters
-
48 kHz / 24-bit
-
Audio Latency
-
10.4 ms (analog input to analog output)
-
Presets
-
High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE)
-
Processing Functions
-
Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
PERFORMANCE
-
Frequency Range (-10 dB)
-
83 – 19,000 Hz
-
Coverage, Horizontal
-
145°
-
Calculated Maximum SPL @ 1 m
-
99 dB
-
Nominal Impedance
-
16 Ω (transformer bypass)
-
Power Handling, long-term continuous
-
16 W
-
Power Handling, Peak
-
64 W
-
Sensitivity (SPL/1 W at 1 m)
-
87 dB
-
Transformer Taps, 100V
-
2, 4, 8, 16 W, bypass
-
Transformer Taps, 70V
-
1 W, 2 W, 4 W, 8 W, 16 W, bypass
-
Coverage, Vertical
-
140°
TRANSDUCERS
-
Driver Protection
-
Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
-
Low-Frequency
-
1 × 2.25 in (57 mm) woofer
| Condition | New |
|---|---|
| MPN (manufacturer part number) | 892256-1210 |
