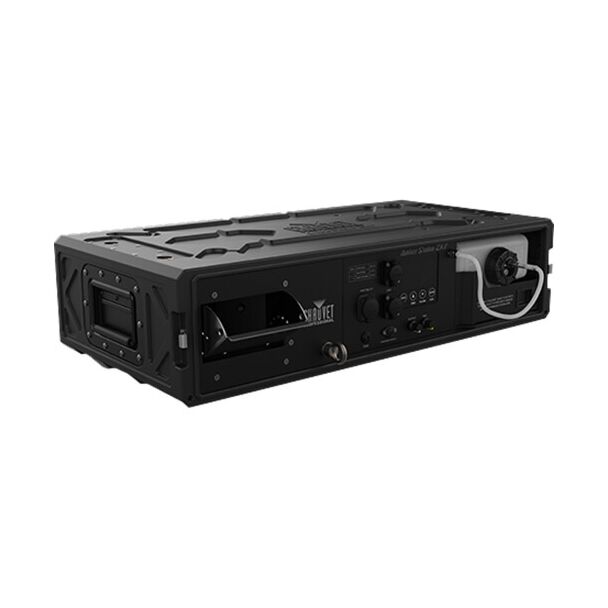

Chauvet Professional Amhaze Stadium 2X IP - Outdoor-Rated Haze Machine
- For Professional Applications
- Integrated Case
- Water-Based Haze Machine; 165 cfm
- 6 Min Heat-Up Time
- Continuous Output for 8 Hours
- DMX, RDM; 2 Channels
- Onboard Controls
- Includes IP65 Seetronic Power Cord
- Includes 2 Omega Brackets + Front Cover
- Includes Output Nozzle Assembly
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
The Chauvet Professional Amhaze Stadium 2X IP is a rugged, high-performance outdoor haze machine designed to deliver consistent, long-lasting atmospheric effects in stadiums, arenas, and large-scale outdoor events. Engineered with IP-rated protection, it withstands the elements while producing ultra-fine haze that enhances lighting, lasers, and stage visuals.
Equipped with dual high-efficiency heating elements and advanced fluid delivery, the Amhaze Stadium 2X IP generates continuous haze with precise control over output and density. Its intuitive DMX control and built-in wireless capabilities allow easy integration into complex lighting rigs, while the robust enclosure ensures reliable performance in demanding environments.
Perfect for concerts, sports arenas, festivals, and outdoor performances, the Amhaze Stadium 2X IP creates professional-grade atmospheric effects that elevate any large-scale production.
Perfect For: Stadiums, arenas, outdoor concerts, festivals, large-scale live events, and professional stage productions.
At a Glance
-
Compact, professional hazer gives high quality haze for live lighting applications
-
Suitable for temporary outdoor/wet use
-
Continuous operation produces haze for medium to large applications
-
Our innovative, fully serviceable heater assembly is designed for maximum efficiency and longevity. Enjoy easy internal servicing and cleaning, ensuring optimal performance with minimal downtime. Plus, the replaceable heater core extends the product’s lifespan while reducing waste—delivering cost savings and sustainability without compromising on reliability.
-
Our innovative heater design significantly reduces clogging, ensuring smooth operation, minimal maintenance, and enhanced reliability for long-term performance
-
Adjustable vent louver for directional haze flow
-
Ships in integrated, rugged flight case, suitable for rental/touring applications with removeable front cover with storage for accessories
-
Designed for seamless compatibility, this unit utilizes Chauvet’s standard 140D Omega Mounting Brackets, allowing for easy integration with standard mounting hardware for quick and secure installation.
-
Experience precise control with continuous variable haze output and adjustable blower speed, easily fine-tuned via DMX integration or intuitive manual knobs for seamless customization.
Specifications
Dynamic Effects
- Fan Performance: 164 cfm
- Low Fluid Shutdown: Yes
Construction / Physical
- Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
- Weight: 48.8 lb (22.13 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
- Tank Capacity: 1.32 gal (5 l)
- Fluid Consumption: 9.5 ml/min
- Maximum Runtime: 8 hrs
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
- Firmware upgrades: USB type-C
Control
- Control Protocol: DMX, RDM
- DMX Channels: 2
- Modes/Personalities: 1 personality (2ch)
- On-Board Control: Yes
Electrical
- Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
- Power and Current: 511 W, 4.26 A @ 120 V, 60 Hz
- Power and Current: 722 W, 3.14 A @ 230 V, 50 Hz [1.2 A inrush]
- Heat-up Time: 6 min
- Fuse (120V model): F8 A, 250 V
- Fuse (230V model): F5 A, 250 V
Certifications / Qualifications
- CE, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Amhaze Stadium II IP
- Seetronic IP 65 Powerkon power cord
- 2x Mounting brackets
- Output nozzle assembly
- Front Cover
Required Accessories
- Accessories (required): Fog Fluid-PHF
- Compatible Mounting Options: M12 / ½” hole with mounting brackets (clamps)
Optional Accessories
- Neutrik powerKON cables
- DMX Cables
| Condition | New |
|---|---|
| MPN (manufacturer part number) | AMHAZESTADIUM2XIP |
| UPC (Universal Product Code) | 781462229412 |
