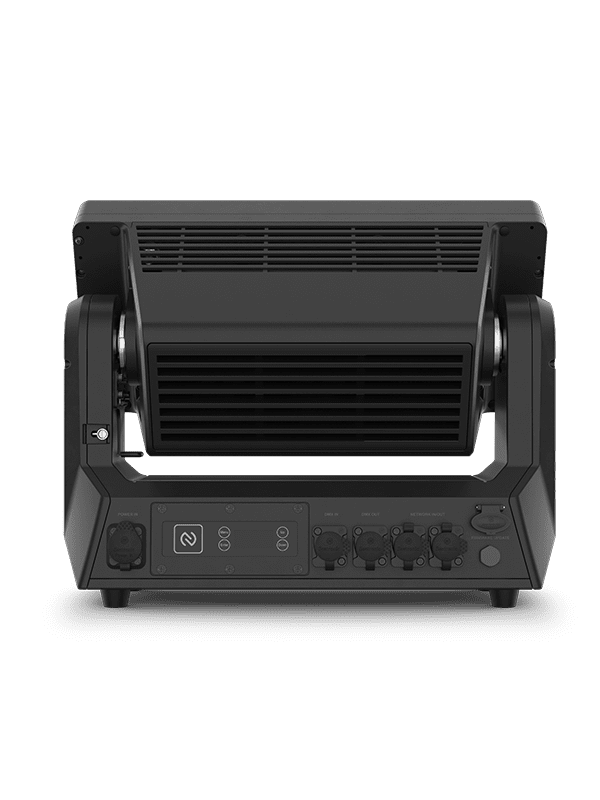

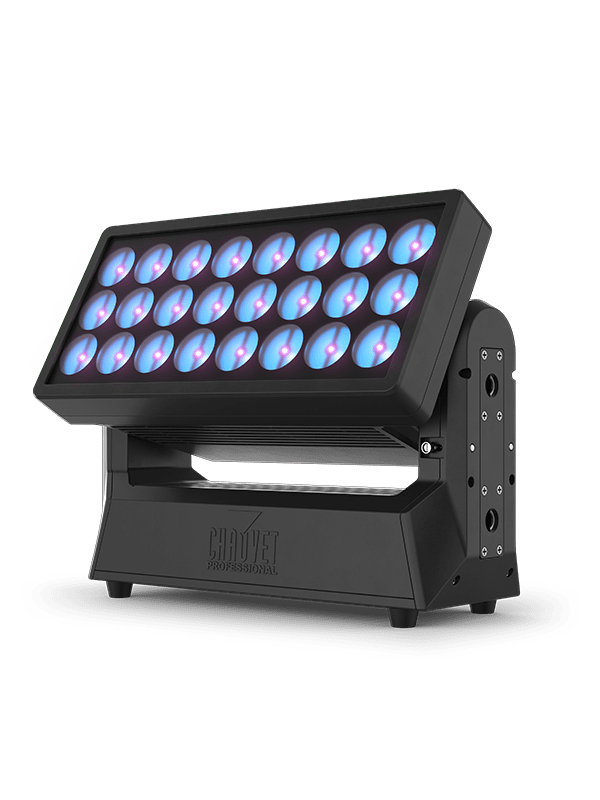

Chauvet Professional Strike V - Dual Layer Pixel Effects Device

The CHAUVET Professional STRIKE V is a cutting-edge, IP65-rated hybrid strobe and wash fixture designed for dynamic lighting applications in both indoor and outdoor environments. It features dual-layer pixel effects, offering advanced creative possibilities for lighting designers.

Key Features

• Dual-Layer Pixel Effects: Equipped with two layers of 24 RGBW LEDs each, totaling 48 individually controllable pixels. This allows for intricate pixel mapping and dynamic visual effects. ​

• Variable Electronic Frost Plate: An adjustable frost mechanism enables instant changes in beam angles, providing flexibility between sharp beams and soft washes. ​

• Motorized 180° Tilt: The fixture's head can tilt up to 180°, allowing for versatile positioning and dynamic movement during performances. ​

• High Output: Delivers up to 19,589 lumens in combined mode, ensuring powerful illumination suitable for large venues and events

• Rugged Design: Built with a magnesium die-cast housing, the STRIKE V is designed to withstand harsh conditions, making it ideal for touring and outdoor events.

Technical Specifications

• Light Sources:

  • Top Plate: 24 x 6W RGBW LEDs

  • Bottom Plate: 24 x 50W RGBW LEDs​

• Beam Angles:

  • Without Frost: 9.9° (combined)

  • With Frost: Up to 50.3° (combined)​

• Control Protocols: DMX, Art-Net, sACN, and RDM​

• DMX Channel Modes:

  • Single Mode: 29, 222, 314 channels

  • Dual Mode Movement: 30 channels

  • Dual Mode Pixels: 144, 192, 240, 288 channels

  • Multi-Layer Control Movement: 30 channels

  • Multi-Layer Control Dot Pixels: 72, 96, 120, 144 channels

  • Multi-Layer Control Cell Pixels: 72, 96, 120, 144 channels​

• Power Consumption: Approximately 747W at 120V​

• Dimensions: 16 x 7.3 x 12.2 inches (407 x 187.4 x 310 mm)

• Weight: 36 lbs (16.3 kg)​

• IP Rating: IP65, suitable for temporary outdoor use​
