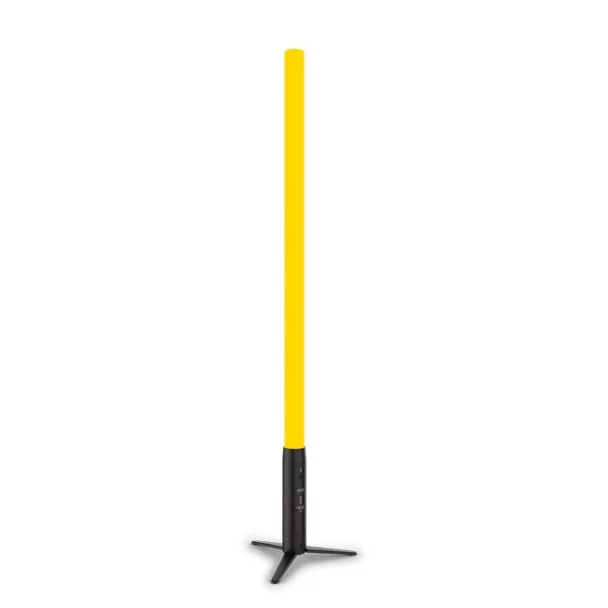

Chauvet Professional WELL STX 360 - Battery-Powered IP65 LED Tube Kit
WHAT'S INCLUDED
- (4) WELL STX 360
- True 1 style power cord with Edison plug (EU bare end)
- Charging flight case
- (4) tripod stands
- (4) hanging eye bolts
- (1) IR Remote
- Quick Reference Guide
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Email us: [email protected]
The Chauvet Professional WELL STX 360 is a versatile and powerful LED tube kit designed for both indoor and outdoor use. With its rechargeable battery and IP65 rating, this lighting solution is perfect for a variety of applications such as concerts, events, architectural lighting, and more.
The kit consists of six 1-meter-long LED tubes that can produce millions of colors and can be controlled individually or as a group. This makes it perfect for creating dynamic and engaging lighting displays for any event or application. The tubes are powered by a rechargeable battery, which makes them easy to set up and use in any location without the need for power outlets or cables.
One of the key features of the WELL STX 360 is its IP65 rating, which means that it is protected against dust and water spray from any direction, making it suitable for use in all kinds of weather conditions. This makes it ideal for use in outdoor environments, such as festivals or outdoor concerts, where weather conditions can be unpredictable.
The kit also features a wireless remote control that allows users to easily adjust settings and colors on the fly, making it perfect for live events or situations where quick adjustments are needed. Additionally, the kit can be controlled via DMX for more advanced programming and control options.
The WELL STX 360 kit is also designed with ease of use in mind. It comes with a quick-connect system that allows users to easily link multiple kits together, making it easy to create larger and more complex lighting displays. The kit also features a magnetic mounting system, which allows for quick and easy installation on a variety of surfaces.
Overall, the Chauvet Professional WELL STX 360 LED tube kit is a versatile and powerful lighting solution that offers a wide range of features and capabilities for any event or application. With its rugged construction, battery-powered operation, and endless color options, it is the perfect choice for anyone looking to create stunning lighting displays both indoors and outdoors.
AT A GLANCE
(4) Pixel-mapping, battery operated, 1.5 meter, IP65 rated LED sticks with 360 degree viewing angle, including (4) mounting stands, (4) hanging eye bolts, (1) IR remote, and (1) charging case
16 individual zones of control for pixel mapping effects
High CRI LEDs for fantastic skin tone rendering
Simple and complex operational modes
Built in editable pre-programmed effects that are controllable from the menu and over DMX
3, 5, 8, and 12 hour settings for optimizing performance time
Included accessories for several mounting options
Included charging flight case for easy transportation and charging of fixtures
Update software over USB-C connection in flight case (upload all 4 fixtures at once)
Works in both stand-alone modes as well as under DMX over W-DMX
Works perfectly with the WELL-COM controller and app
SPECIFICATIONS
OPTICAL
- Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 9670 K
- CRI: 91.9 @ 4000 K
- Beam Angle: 360°
- Field Angle: 360°
- Illuminance (total): 5 lux @ 5 m – 3 hr run time
- Lumens – Output : 1,718 lm – 3 hr run time
- PWM Frequency: Scrambled PWM
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 28 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)
- Dimensions (charging case): 69.8 x 19.5 x 6.4 in 1773 x 495 x 163 mm)
- Weight: 9 lb (4.1 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Plastic
CONNECTIONS
- Power Connection (single charger): Edison (Local) plug to Seetronic Powerkon IP65
- Power Connection (charging case): Edison (Local) plug to Seetronic Powerkon IP65
- Power Input (single charger): Seetronic Powerkon IP65
- Power Input (charging case): Seetronic Powerkon IP65
- Power Output (charging case): Seetronic Powerkon IP65
- Cable Length power (single charger): 5 ft (1.5 m)
- Cable Length power (charging case): 5 ft (1.5 m)
CONTROL
- Control Protocol: W-DMX
- DMX Channels: 4, 15, 64 or 67
- Modes/Personalities: 4 personalities
ELECTRICAL
- Input Voltage (charging case): 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Input Voltage (single charger): 24 VDC, 2.5 A, 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking (charging case): 8 units @ 100 V; 10 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 units @ 230 V
- Power and Current (single charger): 41 W, 0.403 A @ 100 V, 60 Hz
- Power and Current (charging case): 164 W, 1.612A @ 100 V, 60 Hz
- Power and Current (single charger): 40 W, 0.331 A @ 120 V, 60 Hz
- Power and Current (charging case): 160 W, 1.324 A @ 120 V, 60 Hz
- Power and Current (single charger): 66 W, 0.315 A @ 208 V, 60 Hz
- Power and Current (charging case): 264 W, 1.260 A @ 208V, 60 Hz
- Power and Current (single charger): 67 W, 0.291 A @ 230 V, 50 Hz
- Power and Current (charging case): 268 W, 1.188 A @ 230 V, 50 Hz
- Power and Current (single charger): 67 W, 0.281 A @ 240 V, 50 Hz
- Power and Current (charging case): 268 W, 1.124 A @ 240 V, 50 Hz
- Power and Current (resting w/single charger): 3 W, 0.035 A @ 100 V, 60 Hz
- Power and Current (resting w/charging case): 12 W, 0.140 A @ 100 V, 60 Hz
- Power and Current (resting w/single charger): 4 W, 0.036 A @ 120 V, 60 Hz
- Power and Current (resting w/charging case): 16 W, 0.144 A @ 120 V, 60 Hz
- Power and Current (resting w/single charger): 9 W, 0.043 A @ 208 V, 60 Hz
- Power and Current (resting w/charging case): 36 W, 0.172 A @ 208 V, 60 Hz
- Power and Current (resting w/single charger): 9 W, 0.041 A @ 230 V, 50 Hz
- Power and Current (resting w/charging case): 36 W, 0.164 A @ 230 V, 50 Hz
- Power and Current (resting w/single charger): 10 W, 0.042 A @ 240 V, 50 Hz
- Power and Current (resting w/charging case): 40 W, 0.168 A @ 240 V, 50 Hz
BATTERY
- Battery type: Lithium Ion
- Quantity of cells: 5 cells
- Rechargeable: Yes
- Watt Hours: 185.9 Wh
- Battery Charge Time: 4 hours
- Battery Life: 3,5,8,12 hours
- Battery Power: 18.5 V, 10.05 Ah
CERTIFICATIONS / QUALIFICATIONS
- CE, FCC
- IP Rating: IP65, for temporary outdoor use
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
- (4) WELL STX 360
- True 1 style power cord with Edison plug (EU bare end)
- Charging flight case
- (4) tripod stands
- (4) hanging eye bolts
- (1) IR Remote
- Quick Reference Guide
OPTIONAL ACCESSORIES
- Safety Cable: SC-07
- IP Rated Seetronic® Powerkon Extensions
| Condition | New |
|---|---|
| MPN (manufacturer part number) | WELLSTX360X4 |
| UPC (Universal Product Code) | 781462221249 |
