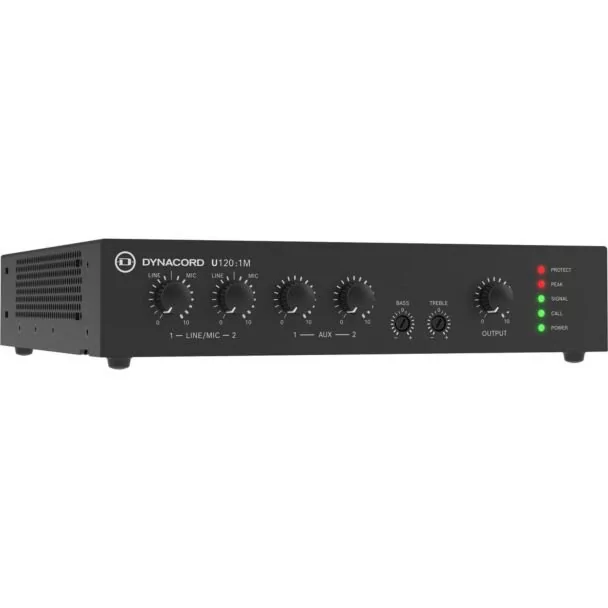

Dynacord U120:1 - 120W Single-Channel Power Amplifier
- For Small to Medium-Sized Installations
- Quality, Performance, Ultra-Reliable
- Great for Background Music
- Clear Voice Announcement Applications
- Selectable 120 Hz High-Pass Filter
- EMG Override for Critical Messaging
- Table Top and Bracket Hardware Included
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
Dynacord U120:1 – 120W Single-Channel Power Amplifier
The Dynacord U120:1 is a compact, high-performance single-channel 120W power amplifier designed for commercial audio installations and professional sound reinforcement systems. With rock-solid reliability, flexible connectivity, and efficient Class-D amplification, the U120:1 delivers clean, consistent audio in a wide range of fixed installations—from conference rooms and retail spaces to houses of worship and educational facilities.
This amplifier is part of Dynacord’s renowned U Series, known for its installer-friendly design, energy efficiency, and seamless integration into commercial AV systems.
Key Features
-
120W of Continuous Power
Offers 120 watts (RMS) output into 4 ohms, 8 ohms, 70V, or 100V lines, making it ideal for both low-impedance and constant-voltage speaker systems. -
Compact & Fanless Design
The convection-cooled, half-rack chassis ensures silent operation and easy installation in tight or noise-sensitive spaces. -
Flexible Input Options
Equipped with balanced Phoenix-style connectors for analog audio input, and remote volume control via external potentiometer or wall panel. -
Energy-Efficient Class-D Amplification
Advanced Class-D technology provides high-efficiency operation with low power consumption and minimal heat generation. -
Auto Standby Mode
Intelligent power management automatically reduces energy usage when the amplifier is not in use, helping meet energy-saving requirements. -
Protection Circuitry
Includes overload, over-temperature, and short-circuit protection for reliable long-term operation.
Technical Specifications
| Specification | Details |
|---|---|
| Output Power | 120W @ 4/8Ω, 70V or 100V lines |
| Amplifier Type | Class-D |
| Input | Balanced Line Input (Phoenix connector) |
| Output | Euroblock/Phoenix-style connectors |
| Remote Volume Control | 10kΩ potentiometer compatible |
| Cooling | Fanless (convection) |
| Dimensions (W × H × D) | 8.27" × 1.73" × 9.06" (210 × 44 × 230 mm) |
| Weight | 4.4 lbs (2 kg) |
| Power Supply | Universal AC 100–240V, 50/60 Hz |
Ideal For:
-
Corporate Boardrooms & Conference Spaces
-
Retail Environments & Restaurants
-
Classrooms & Educational Campuses
-
Houses of Worship & Public Buildings
-
Healthcare & Hospitality Installations
Why Choose the Dynacord U120:1?
If you need reliable amplification in a compact, energy-efficient form factor, the Dynacord U120:1 delivers. It’s built for integrators who demand flexibility, durability, and sound quality without complexity—making it a top choice for small to mid-sized commercial audio applications.
| MPN (manufacturer part number) | U120:1 |
|---|---|
| UPC (Universal Product Code) | 800549752282 |
