Dynacord V600:2 -2-Channel 600W Power Amplifier for Commercial Installations
- For Background Music and Announcements
- 2 x 300W Amplifier Channels
- 600W Total powerTANK Capacity
- Drive at 4 or 8 Ohms & 70 or 100V Loads
- Variable Load Drive to All Channels
- ecoRAIL for Reduced Power Consumption
- dualCOOL Convection + Fan Cooling
- Includes Euroblock Connectors
- Includes Rackmount Hardware
- Includes IEC Power Cord
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us

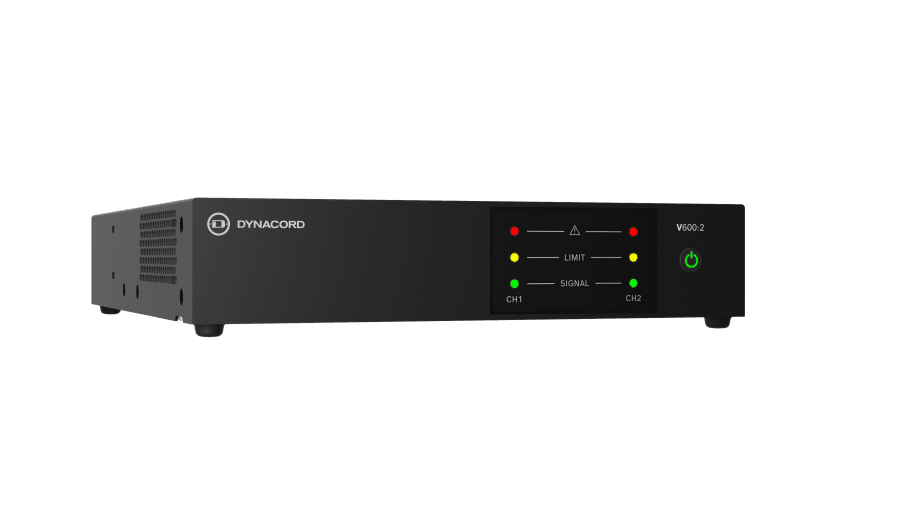

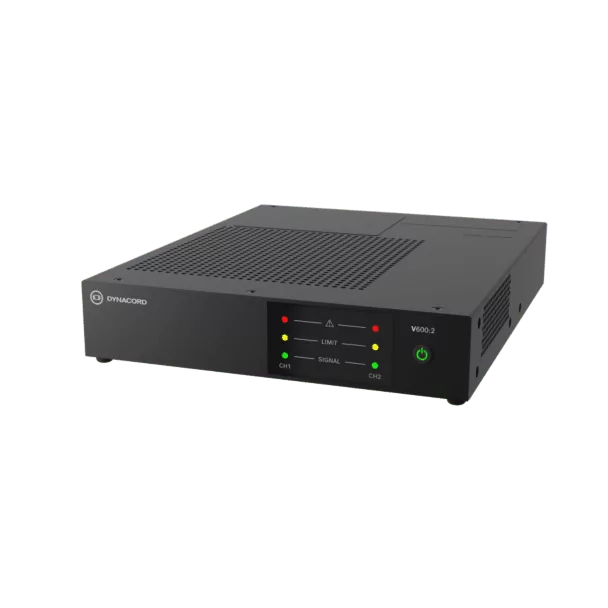

Dynacord V600:2 – Dual-Channel 600W Power Amplifier for Commercial Installations
The Dynacord V600:2 is a high-efficiency, dual-channel 600-watt power amplifier designed specifically for commercial audio installations requiring reliable performance, energy efficiency, and flexible configuration. Delivering 2 × 600W into 4 ohms (or 1 × 1200W in bridged mode), the V600:2 is ideal for background music, paging, and low-impedance loudspeaker systems in applications such as retail, hospitality, education, and houses of worship.
Combining robust output power with advanced safety features and low standby consumption, the V600:2 provides professional-grade amplification with Dynacord’s signature quality and durability.
Key Features
-
2 × 600W Channels or 1 × 1200W Bridged Output
Flexible output power makes the V600:2 suitable for both stereo and high-power mono applications, with stable performance at 4-ohm and 8-ohm loads. -
Low-Z Operation
Optimized for 4- and 8-ohm speaker systems, making it ideal for driving distributed loudspeakers or high-performance zone speakers in commercial environments. -
Energy-Efficient Class-D Topology
The V600:2 uses Class-D amplification for high efficiency, low heat generation, and reduced energy costs—especially important for 24/7 operation. -
Auto Power Save Mode
Built-in energy-saving features include automatic power-down when no signal is present, minimizing power consumption in idle state (<1 W in Eco standby). -
Comprehensive Protection Circuitry
Includes protection against thermal overload, short circuit, DC, and overcurrent, ensuring long-term reliability and safe operation. -
Easy Integration with Commercial Audio Systems
Phoenix-style connectors for audio input and output simplify wiring in installed sound systems. Rear-panel DIP switches allow configuration of gain, limiter, and high-pass filter settings. -
Compact 1RU Form Factor
The slim 1RU chassis fits neatly in standard equipment racks, making it perfect for AV closets and central equipment rooms.
Technical Specifications
| Feature | Details |
|---|---|
| Output Power | 2 × 600W @ 4Ω, 2 × 350W @ 8Ω, 1 × 1200W bridged |
| Frequency Response | 20 Hz – 20 kHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 100 dB |
| Inputs | 2 × Balanced (Phoenix connectors) |
| Outputs | 2 × Speaker outputs (Phoenix connectors) |
| Controls | DIP switches for gain, HPF, limiter |
| Cooling | Variable-speed fan |
| Power Consumption | < 1 W standby (Eco Mode) |
| Dimensions (H x W x D) | 1RU – 44 mm x 482 mm x 340 mm |
| Weight | Approx. 6.6 lbs (3.0 kg) |
Ideal For:
-
Hospitality & Hotels – Discreet and efficient BGM and paging systems
-
Education Facilities – Reliable power for classrooms, halls, and common areas
-
Retail Stores & Malls – Clean, consistent audio throughout large spaces
-
Houses of Worship – Clear speech reinforcement and zone audio control
-
Corporate Offices – Scalable amplifier for meeting rooms and lobbies
Why Choose the Dynacord V600:2?
The Dynacord V600:2 combines professional-grade amplification, low power consumption, and installation-friendly features in a compact, rackmountable package. Whether you’re upgrading an existing system or designing a new audio infrastructure, this amplifier delivers the power, efficiency, and reliability needed for today’s commercial audio environments.
| Condition | New |
|---|---|
| MPN (manufacturer part number) | V600:2 |
| UPC (Universal Product Code) | 800549373098 |
