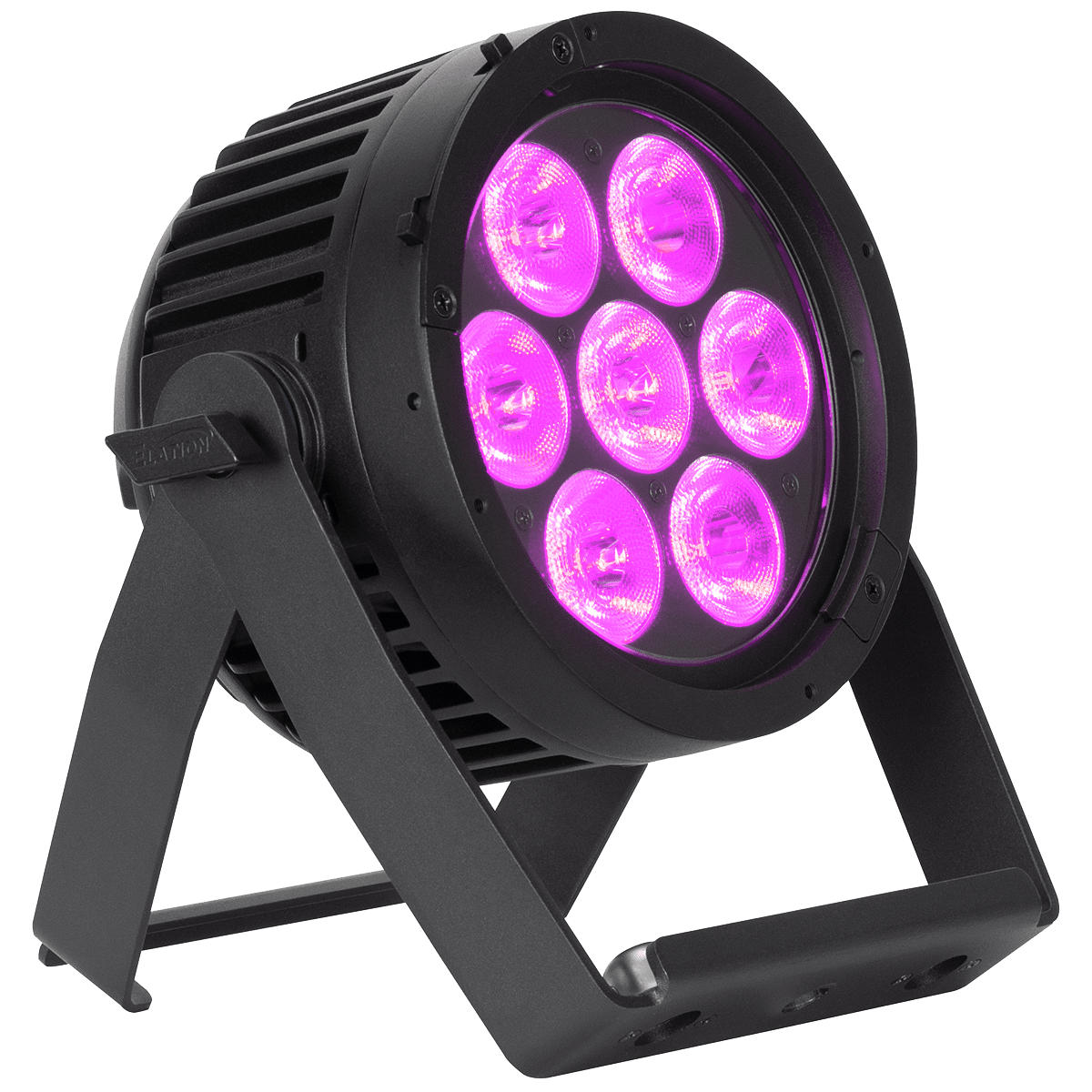

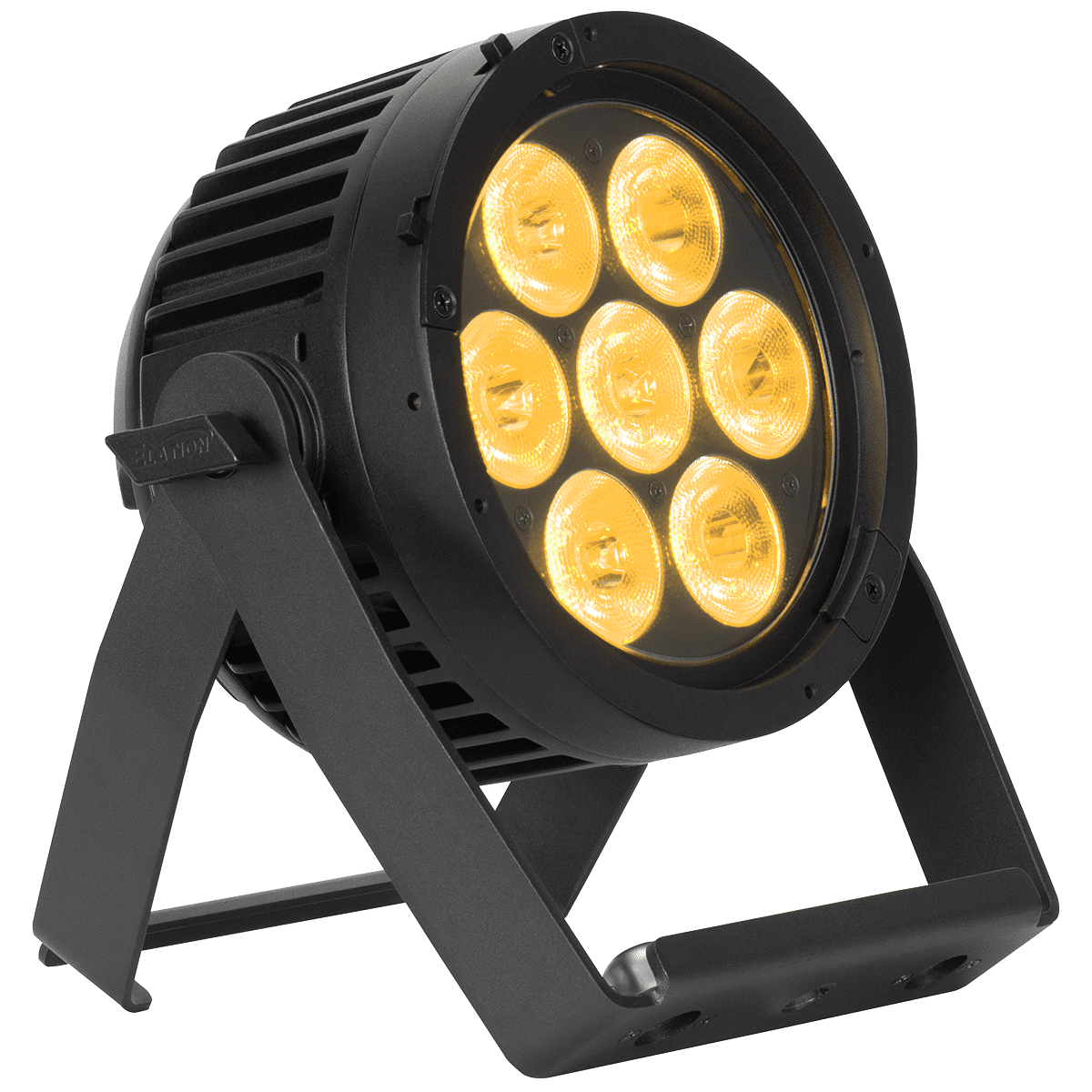

Elation SIX+ PAR S -7x 20W RGBLA+UV LED Par Wash

The Elation SIX+ PAR S is a compact LED par fixture designed for professional lighting applications. Here's an overview of its features based on the provided information:

LED Technology: Like its larger counterpart, the SIX+ PAR L, the fixture utilizes LED technology, offering energy efficiency, long lifespan, and a wide range of color options.
RGBLA+UV LEDs: The SIX+ PAR S features 7 LEDs with a combination of Red, Green, Blue, Lime (Amber), and UV (Ultraviolet) colors. This combination allows for versatile color mixing options and the creation of vibrant hues, subtle pastel shades, and blacklight effects.
High Power Output: Each LED is rated at 20 watts, providing a considerable level of brightness suitable for various lighting applications, including stage performances, events, and architectural lighting.
Compact Design: The "S" in the name likely stands for "Small" or "Slim," indicating that the fixture has a compact form factor. This makes it ideal for installations where space is limited or for creating discreet lighting setups.
Versatility: Similar to the larger fixture, the SIX+ PAR S is likely versatile, offering multiple control options such as DMX, wireless DMX, and standalone modes. This versatility allows for seamless integration into different lighting setups and control systems.
Beam Angle: The fixture may offer a variable beam angle, allowing users to adjust the spread of light according to their specific needs, from wide washes to more focused beams.
Silent Operation: LED fixtures often feature silent operation, making them suitable for use in noise-sensitive environments such as theaters and television studios.
Flicker-Free Performance: The fixture likely offers flicker-free performance, ensuring smooth and consistent lighting, especially when used for video recording and broadcasting applications.
Built-in Effects: The SIX+ PAR S may include built-in color macros, strobe effects, and pre-programmed chase patterns, providing users with creative lighting options without the need for external controllers.
Overall, the Elation SIX+ PAR S 7x 20W RGBLA+UV LED Par is a versatile and compact lighting fixture suitable for a wide range of professional applications, offering high-quality color mixing, brightness, and control options in a small form factor.

Features
(7) 20W RGBLA+UV LED Array

4300 Lumens, 91.7 CRI
12° Beam Angle, 20° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 7.5” Accessory Holder
IP65 Rated
Resources
Specification information
 Six+ Par S - Specification Sheet
Guides/ Manuals
 Six+ Par S - User Manual
PHOTOMETRIC DATA
 Six+ Par S- Photometric Report
 Six+ Par S- Photometric IES Files
DMX/ RDM Traits
 Six+ Par S - DMX Traits
Drawings
 Six+ Par S - Dimensional Drawing
CAD File
 Six+ Par S - 3D Cad Drawing
 Six+ Par S - 2D Cad Drawing
Related Categories
Par | Wash
New Products
SIX+
Exterior-Static
Specifications
SOURCE
(7) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
4300 Total Lumen Output
CRI - 91.7

EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS
9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT
Length: 7.4" (188mm)
Width: 9.7” (247.1mm)
Vertical Height: 9.1” (230mm)
Weight: 9.48 lbs / 4.30kg

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
100W Max Power Consumption
Power Thru Capacity: 12 units @110V, 28 units @240V
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 341

INCLUDED ITEMS
20° Lens
Safety Cable
IP65 Locking Power Cable

OPTIONAL ITEMS
60° Lens (SIX+S WFL)
100° Lens (SIX+S XFL)
1°x 40° Lens (SIX+S L140)
10°x 60° Lens (SIX+S L1060)
Gel Frame & Holder Kit (SIX+S GFK)
7.5" Barndoor (KLP959)
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)
# 8050000053 - Omega Bracket

APPROVALS / RATINGS
CE | cETLus | UL | IP65c| FCC | UKCA

FIRMWARE UPDATE
Current Update: V1.0.3
Click HERE for software update
