Special Price $749.00 Regular Price $945.00
-Highly weather-resistant IP56 rating -Consistent 90° x 90° broadband pattern control -U-Bracket included. -Gray or black

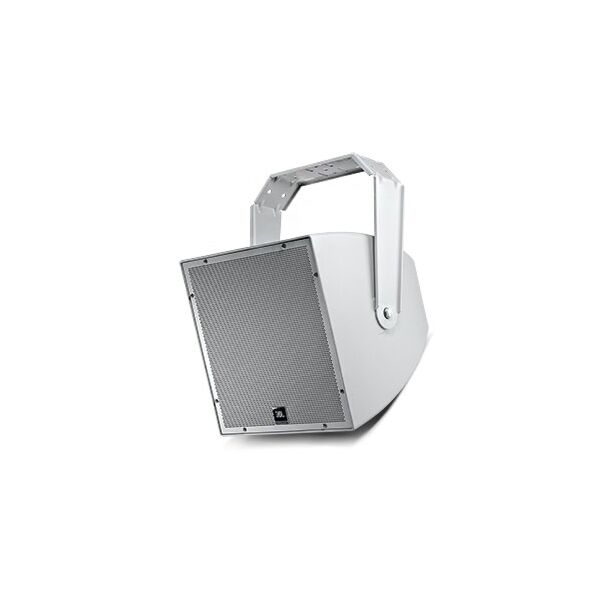

JBL AWC129 12” 2-Way All-Weather Compact Co-axial Loudspeaker The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
|UPC (Universal Product Code)||050036 904193|
|MPN (manufacturer part number)||AWC129|
|Discount||INSTANT SAVINGS: 10% OFF|
|Features||-Highly weather-resistant IP56 rating -Consistent 90° x 90° broadband pattern control -Components: • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented de|
|Specs||Frequency Range (-10 dB) : 55 Hz – 20 kHz Frequency Response (±3 dB) : 80 Hz – 20 kHz Coverage Pattern : 90° x 90° Directivity Factor (Q) : 10.1 (1 k – 16 kHz) Directivity Index (DI) : 9.5 dB (1k – 16 kHz) Long-Term System Power Rating (IEC) : 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs Sensitivity (2.83V @ 1m) : 96 dB (Ave. 80 Hz – 20 kHz) Maximum SPL : Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB Crossover Network : 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF Nominal Impedance : 8 ohms Transformer Taps : 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W Low Frequency Driver : Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil. High Frequency Driver : 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling. HF Driver Protection : Minimum audibility SonicGuard™ HF overload protection Enclosure : ABS with Glass enclosure, heavily braced Attachment : Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Grille : Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing. Input Connection : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") Environmental : IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs). Dimensions : 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back Colors : Available in gray (similar to Pantone 420C) and black (-BK) Net Weight : 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket Shipping Weight : 23.4 kg (51.5 lbs) Included Accessories : U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel|
