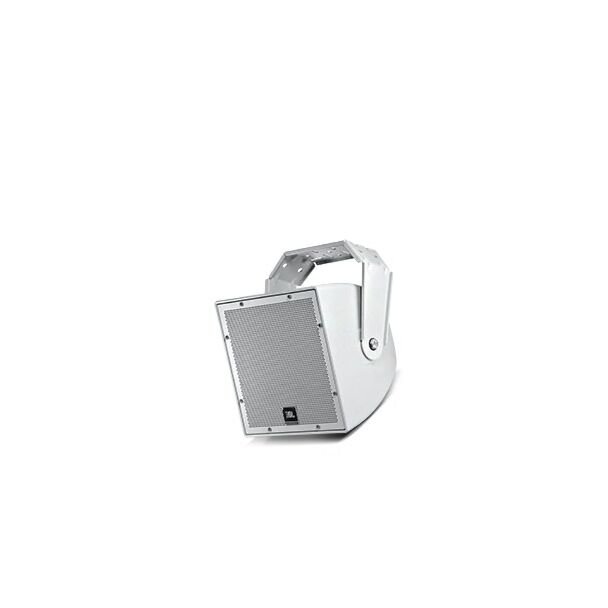

JBL AWC82 8” 2-Way All-Weather Compact Co-axial Loudspeaker The AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
|UPC (Universal Product Code)||050036 904179|
|MPN (manufacturer part number)||AWC82|
|Discount||INSTANT SAVINGS: 10% OFF|
|Features||-Highly weather-resistant IP56 rating -Consistent 120° x 120° broadband pattern control -Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented|
|Specs||Frequency Range (-10 dB) : 80 Hz – 20 kHz Frequency Response (±3 dB) : 100 Hz – 20 kHz Coverage Pattern : 120° x 120° Directivity Factor (Q) : 8.1 (1 k – 16 kHz) Directivity Index (DI) : 8.4 dB (1 k – 16 kHz) Long-Term System Power Rating (IEC) : 250 W 2 hrs. 200 W 100 hrs Sensitivity (2.83V @ 1m) : 94 dB (Ave. 100 Hz – 20 kHz) Maximum SPL : Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB Crossover Network : 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF Nominal Impedance : 8 ohms Transformer Taps : 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W Low Frequency Driver : Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil. High Frequency Driver : 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling. HF Driver Protection : Minimum audibility SonicGuard™ HF overload protection Enclosure : ABS with Glass enclosure, heavily braced Attachment : Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Grille : Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. Input Connection : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") Environmental : IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs). Dimensions : 300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back Colors : Available in gray (similar to Pantone 420C) and black (-BK) Net Weight : 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket Shipping Weight : 14.1 kg (31.0 lb) Included Accessories : U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.|
