-16 x 2" Drivers -Indoor or Outdoor -Constant Beamwidth Technology -Dynamic SonicGuard
MPN (manufacturer part number) | CBT 100LA-1 |
---|---|
UPC (Universal Product Code) | 0 50036 90427 8 |
Condition | New |
Specs | Components : Sixteen 50 mm (2 in) Full-Range Frequency Range (-10 dB) : 80 Hz – 20 kHz Vertical Coverage : Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) Sensitivity (2.83V@ 1m) : Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz) Nominal Impedance : 8 ohms (in Thru mode) Power Capacity (8 ohm setting) : 325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs Max SPL : Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak) 70V/100V Transformer Taps : 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch Enclosure : Fiberglass reinforced ABS cabinet, painted aluminum grille Outdoor Capability : IP-54 rated, per IEC529. UV, moisture and salt-spray resistant Colors : Black or White (-WH) Insert Points : 18 M6 insert points on back panel. Mounting : Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. Dimensions (H x W x D) : 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in) Net Weight : 7.2 kg (15.8 lb) Included Accessories : Swivel (pan) / tilt wall bracket Optional Accessories : MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |

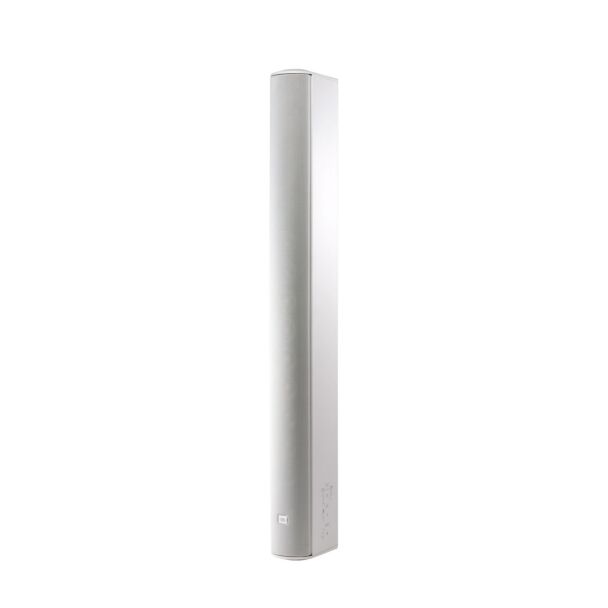

JBL CBT 100LA-1 Line Array Column Loudspeaker Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility. The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
