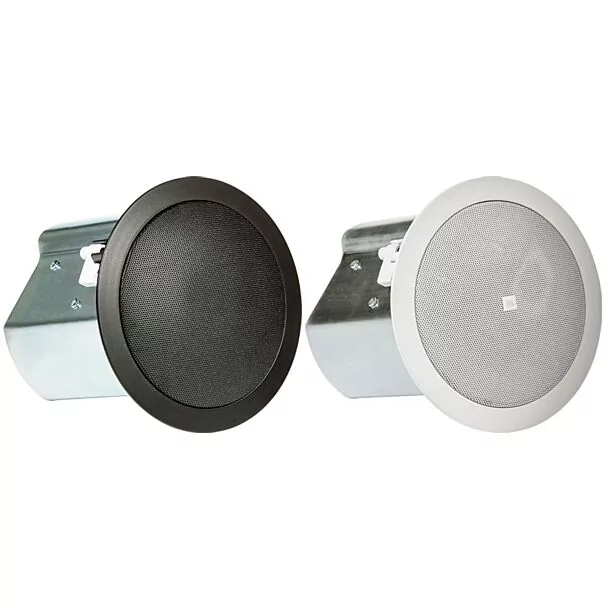

JBL Control 14C/T- 4" 40W Compact Ceiling Loudspeaker (Pair)

Special Price $182.00 Regular Price $233.00

discount



SKU
JBL-C14CT

-Blind-mount backcan for quick and easy install -Dual conduit/cable clamps -Black or White

JBL Control 14C/T- 4" 40W Compact Ceiling Loudspeaker (Pair)

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.  The 120° coverage delivers consistent sound quality for listeners located both off and on axis.  The high technology 100 mm (4.0 in) low frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions.  The butyl rubber surround provides longterm durability and excellent sonic damping while the polypropylene cone is water and  humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allows for a smooth frequency response and more consistent off-axis performance. The 19 mm (3/4 in) high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.  The removable locking  connector has screw terminals for secure wire termination and “loop through” terminals. A dual strain relief  assembly provides clamping for use with cable or flex conduit.  Ideal for a wide variety of projects, the Control 14C/T is switchable for use as either an 8 ohm low-impedance speaker or as part of a 70V or 100V distributed loudspeaker system with a 25 Watt multi-tap transformer.  The speaker comes complete with two tile rail

supports, one C-ring support backing plate, cutout template, paint shield and grille. A safety seismic attachment ring is provided on the top surface. Available in white or black (-BK).

More Information
SKU JBL-C14CT
Freeshipping Free Shipping
UPC (Universal Product Code) 050036 904551
MPN (manufacturer part number) CONTROL 14C/T
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features -100 mm (4.0 in) high output driver with polypropylene cone and butyl rubber surround -19 mm (0.75 in) soft-dome liquid-cooled tweeter -Blind-mount backcan for quick and easy install -Dual conduit/cable clamps -Combined 70V/100V and low impedance direct operation -30 Watts at 8Ω nominal setting -25W multi-tap at 70V/100V -74 Hz – 20 kHz bandwidth with wide 120° coverage -White or black (-BK)
Specs



Frequency Range (-10 dB)   :   74 Hz – 20 kHz
Power Capacity (at low-Z)   :   60 Watts Continuous Program Power
30 Watts Continuous Pink Noise
Transformer Taps   :   25 W, 12.5 W, 6.3 W @ 70V or 100V
(plus 3.2 W @ 70V only)
Frequency Response (±3 dB)   :   100 Hz – 20 kHz
Nominal Sensitivity   :   87 dB
Nominal Coverage Angle   :   120° conical coverage
Directivity Factor (Q)   :   7.6
Directivity Index (DI)   :   8.1 dB
Rated Maximum SPL   :   102 dB @ 1 m (3.3 ft) average, 108 dB peak
Nominal Impedance   :   8 ohms (in direct/bypass 8Ω setting)
Crossover Network   :   12 dB/oct (2nd order) low-pass to LF driver,
12 dB/oct (2nd order) high-pass to HF driver
LF Driver   :   100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver   :   19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
Input Connector   :   Removable locking 4-pin connector with
screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring   :   Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru;
Pin 4 = - Loop Thru
Strain Reliefs   :   Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials   :   ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency   :   UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions   :   196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
Ceiling Cutout Size   :   Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range   :   Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment   :   One point, top surface
Net Weight   :   2.2 kg (4.8 lbs, one speaker)
Shipping Weight   :   8.2 kg (17.9 lbs, pair in master carton)
Included Accessories   :   C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories   :   MTC-24NC new construction bracket
MTC-24MR mud-ring construction bracket
MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers)
MTC-48TR tile rail for 1200 mm (4 ft) tile spans
