JBL Control 419CS/T - 8" Ceiling Subwoofer (Pair)
- For Installed Sound in Commercial Spaces
- 8" Woofer with 1.5" Copper Voice Coil
- 160W RMS, 640W Peak Power Handling
- 60W Transformer for 70/100V Systems
- 8-Ohm Low-Impedance Direct Mode
- Extended Bass via Dual Port Design
- Bass Extension to 47 Hz via LPF
- IP33 Rated for Water Resistance
- Stylish Full-Face Grille
- Includes Grille, C-Ring, and Tile Rails
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us

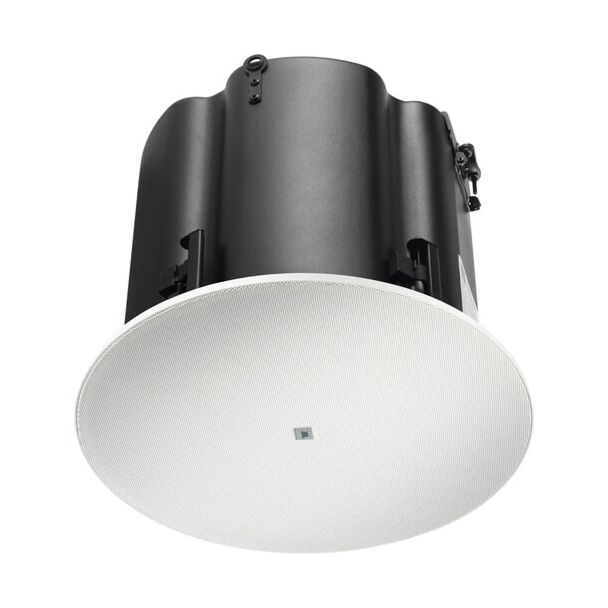

JBL Control 419CS/T – 8" In-Ceiling Subwoofer for Distributed Audio Systems
The JBL Control 419CS/T is a high-performance 8-inch ceiling subwoofer designed to extend low-frequency response in background music and distributed audio systems. Engineered for seamless integration into commercial, retail, hospitality, and office environments, this passive subwoofer adds deep, rich bass to ceiling speaker systems without compromising on aesthetics or installation flexibility.
Key Features
-
Deep, Clean Bass Response
The 8" (200 mm) long-excursion low-frequency driver delivers powerful, extended bass—ideal for enhancing music playback and creating a fuller listening experience in ceiling-mounted speaker systems. -
Discreet In-Ceiling Design
The low-profile form factor blends invisibly into ceiling architecture, making it perfect for venues where visual impact must be minimized but audio performance matters. -
70V/100V Transformer Built-In
Equipped with a high-quality multitap transformer, the Control 419CS/T supports distributed audio systems with 70V or 100V lines, and also supports low-impedance (8-ohm) operation for flexible system design. -
High Power Handling
Rated for 100W continuous power handling, the 419CS/T provides strong, reliable low-end reinforcement without distortion—suitable for both background music and foreground sound enhancement. -
Easy Installation & Compatibility
Designed to work in tandem with JBL Control 47C/T or Control 24/26 ceiling speakers using an external low-pass crossover (like JBL’s MTC-210-SAT), the 419CS/T installs easily using JBL’s proven C-ring and tile bridge accessories.
Technical Specifications
| Feature | Details |
|---|---|
| Woofer | 8" (200 mm) Long-Excursion Driver |
| Frequency Response | 42 Hz – 200 Hz (-10 dB) |
| Power Handling | 100W Continuous, 400W Peak |
| Nominal Impedance | 8 ohms |
| Transformer Taps (70V/100V) | 100W, 50W, 25W, 12.5W, 6.3W |
| Input Connectors | Screw-Down Terminal Strip |
| Dimensions (Dia x Depth) | 12.5" x 10.3" (318 mm x 262 mm) |
| Cutout Size | 11.25" (286 mm) diameter |
| Weight | ~13.5 lbs (6.1 kg) |
| Grille | Paintable, included |
Ideal Applications
-
Retail & Restaurants – Enhance customer experience with subtle but effective bass
-
Corporate & Office Spaces – Add depth to distributed music or AV audio
-
Hospitality & Hotels – Create immersive atmospheres in lobbies or lounges
-
Commercial Installations – Reliable, scalable bass reinforcement for ceiling systems
Why Choose the JBL Control 419CS/T?
With powerful bass, flexible mounting, and seamless compatibility with JBL’s Control series ceiling speakers, the Control 419CS/T is the perfect choice for AV integrators who need discreet, high-performance low-end reinforcement in distributed sound systems. Whether you're designing a premium retail space or a background music system for a hotel, this ceiling subwoofer delivers smooth, room-filling bass with trusted JBL reliability.
| Condition | New |
|---|---|
| MPN (manufacturer part number) | C419CS/T |
| UPC (Universal Product Code) | 691991042607 |
