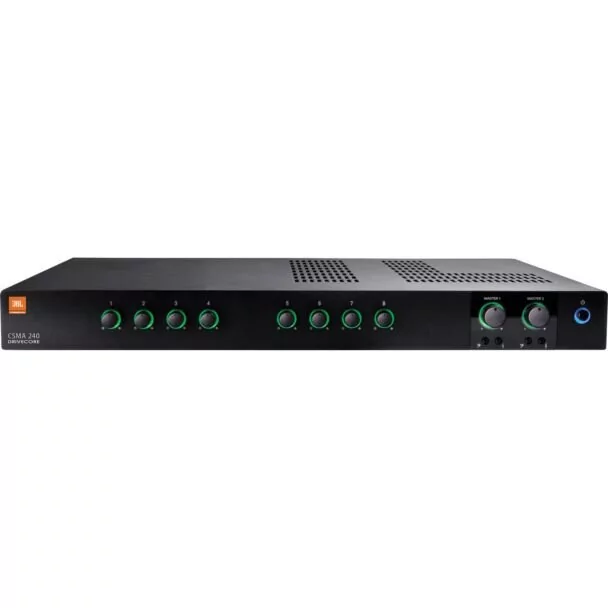

JBL CSMA240 - 8x2 40W Commercial Series Mixer/Amplifier
-For Commercial and Industrial Use
-40W into 8 or 4 Ohm Loads
-5W Per Channel
-8 Input Channels, 2 Output Channel
-Usable with 70 & 100V Systems
-Euroblock Mic/Line & RCA Inputs
-Hi-Z & 27V Phantom Power Switches
-Sleep Mode & 2 Auxiliary Outputs
-Voice Activated Ducking & Priority Mute
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Email us: [email protected]
The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.
The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
JBL Commercial mixer/amps are manufactured under HARMAN’s GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation – up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.
- 8 inputs with 2 outputs of 40,80, 120-watts of power
- Ideal for commercial and industrial use
- Fanless, space-saving 1U design
- Sleek industrial look with illuminated rings, making them easy to see and operate
- Euro-block type mic/line input connectors and output connectors
- Independent Bass and Treble controls for each output channel
- Supports 70V and 100V distributed audio systems without the need for a separate transformer
- Remote volume control capability using JBL CSR-V module and standard Ethernet cable
- Priority muting
- Configurable output routing
- Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
- Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
- Includes rack mounting kit
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
- Energy Star® Certified
Output | 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%) |
Frequency Response | +/- 1dB (@1W into 4 or 8 Ohms) |
Load Impedance | Stable from 2 - 16 Ohms |
Sensitivity | 1.4Vrms |
Signal to Noise Ratio | -weighted |
Input Impedance | Balanced 20K Ohms/Unbalanced 10K Ohms |
Max Input | +20dBu Typical |
Dimensions | 1.7" x 17.2" x 11.9" (43.3 mm x 436.9 mm x 303.4 mm) |
Shipping Weight | 240: 13.9 lbs (6.3 kg); 280: 15.2 lbs (6.9 kg); 2120: 15.5 lbs (7.0 kg) |
Condition | New |
---|---|
MPN (manufacturer part number) | CSMA240 |
UPC (Universal Product Code) | 00871015007342 |
