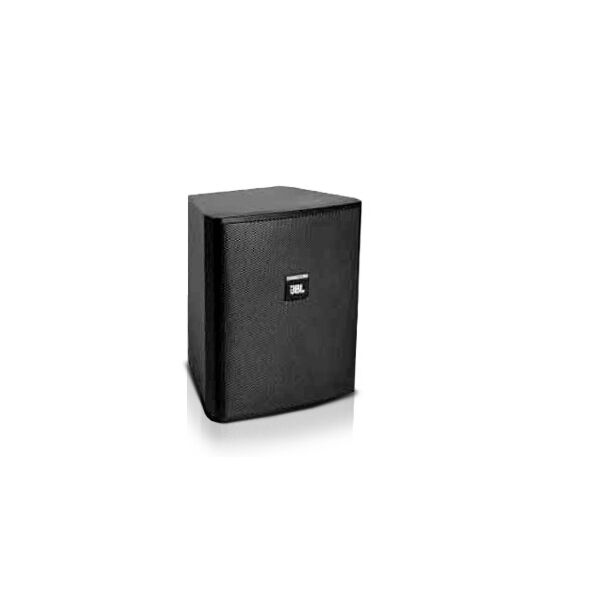

JBL Control 25AV-LS 5" Life Safety Surface-Mount Loudspeaker (Pair)
Special Price $370.00 Regular Price $488.00
UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems Video shielded for use near video monitors. Extremely smooth frequency response. Aluminum Grille with Polyester Powder Coating for enduring reliability. 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
JBL Pro Control 25AV-LS 5" Life Safety Surface-Mount Loudspeaker (Pair) The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.
|UPC (Universal Product Code)||0 50036 90527 5|
|MPN (manufacturer part number)||C25AV-LS|
|Discount||INSTANT SAVINGS: 10% OFF|
|Features||UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems Video shielded for use near video monitors. Extremely smooth frequency response. Aluminum Grille with Polyester Powder Coating for enduring reliability. 60 W transformer for 70 V or 100 V lines, with 8 ohms thru. SonicGuard™ overload protection. 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter. Includes InvisiBall® mounting hardware and sealed input panel cover. Screw-down input terminals. 105° x 85° high frequency horn.|
|Specs||Freq. Range (-10 dB) : 90 Hz - 20 kHz Power Capacity : 200 Watts Continuous Program Power100 Watts ContinuousPink Noise Transformer Taps : 60W, 30W, 15W(& 7.5W @ 70V) Nominal Sensitivity : 87 dB Nominal Coverage Angle : 105° x 85° (1kHz to 16kHz) Directivity Factor (Q) : 4.8 (500 Hz to 4kHz) Directivity Index (DI) : 107 dB @ 1 m (3.3 ft) average, 113 dB peak Rated Maximum SPL : 8 ohms (in bypass mode) LF Driver : 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF Driver : 20mm (.75 in) titanium coated PEI Termination : Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm) Cabinet Material : High Impact Polystyrene, (materials rated UL-94HB) Grille : Aluminum with polyester powder coating Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating Environmental : Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition Safety Agency : UL1480-UUMW Listed, UL2043, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849 Dimensions (H x W x D) : 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in) Net Weight : 3.8 kg (8.4 lbs) ea Shipping Weight : 8.6 kg (19 lbs) pair Included Accessories : 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench Optional Accessories : MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook.|
