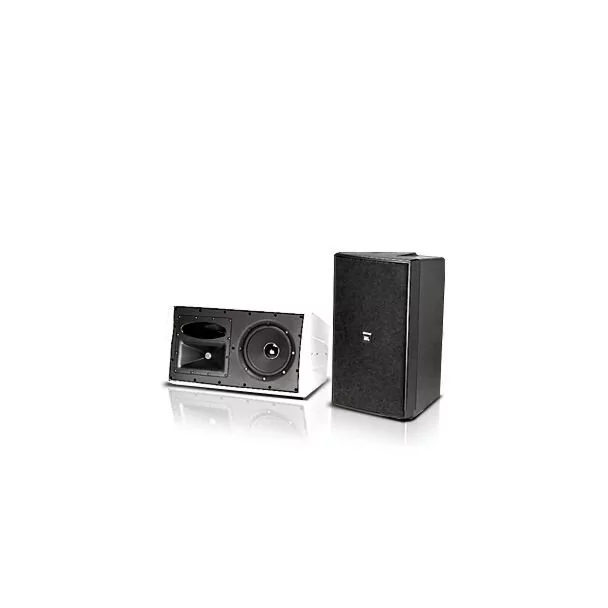

JBL Control 29AV-1 8" Surface-Mount Monitor Speaker
Special Price $465.00 Regular Price $549.73
SKU
JBL-C29AV-1
Extended bandwidth, extremely smooth frequency response. 110° x 85° HF coverage, rotatable horn. 110 W transformer for 70 V or 100 V lines, with 8 W thru. SonicGuard™ overload protection.
| MPN (manufacturer part number) | C29AV-1 |
|---|---|
| UPC (Universal Product Code) | 0 50036 90338 7 |
| Condition | New |
| Specs | Frequency Range : 40 Hz –18 kHz (-10 dB) Power Capacity : 300 W Continuous Program Power 150 W Continuous Pink Noise Transformer Taps : 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W Thru Position: 8 nominal Frequency Response : 45 Hz – 18 kHz ( ± 3 dB) Maximum SPL @ 1m : Short-Term: 120 dB; Long-Term: 114 dB Nominal Sensitivity : 90 dB (2.83V / 1m) Nominal Coverage Angle : 110° H x 85° V, rotatable Directivity Factor (Q) : 7.2 dB, averaged 500 Hz to 16 kHz Directivity Index (DI) : 8.6 dB, averaged 500 Hz to 16 kHz Nominal Impedance : 8 ohms Minimum Impedance : 6.3 ohms @ 230 Hz Crossover Network : 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency Low Frequency : 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround Enclosure Material : High impact polystyrene Grille : Thermoset composite coated steel, WeatherMax multi-layer foam Overload Protection : Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). Safety Agency Rating : Transformer is listed per UL1876 Colors : Black or white (-WH) Dimensions (H x W x D) : 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.) Net Weight (ea) : 12.2 kg (26.8 lb.) Shipping Weight (ea) : 14.0 kg (30.8 lb.) Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. Optional Accessories : MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket |
Frequently Bought Together
-
JBL Control 29AV-1 8" Surface-Mount Monitor SpeakerSpecial Price $465.00 Regular Price $549.73 - RCF COMPACT M 08 - 8" 2-Way Passive Installation SpeakerSpecial Price $549.00 Regular Price $799.00
-
-
- JBL Control 25-1 - 5" 2-Way Indoor/Outdoor Mount Speaker (Pair)Special Price $370.00 Regular Price $437.22
.png)
.jpg)
- Total price
JBL Pro Control 29AV-1 8" Surface-Mount Monitor Speaker The Control® 29AV-1 provides improved voicing for extremely fl at, high fi delity performance, extended bandwidth and well-controlled defi ned coverage from a compact loudspeaker.
| MPN (manufacturer part number) | C29AV-1 |
|---|---|
| UPC (Universal Product Code) | 0 50036 90338 7 |
| Condition | New |
| Specs | Frequency Range : 40 Hz –18 kHz (-10 dB) Power Capacity : 300 W Continuous Program Power 150 W Continuous Pink Noise Transformer Taps : 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W Thru Position: 8 nominal Frequency Response : 45 Hz – 18 kHz ( ± 3 dB) Maximum SPL @ 1m : Short-Term: 120 dB; Long-Term: 114 dB Nominal Sensitivity : 90 dB (2.83V / 1m) Nominal Coverage Angle : 110° H x 85° V, rotatable Directivity Factor (Q) : 7.2 dB, averaged 500 Hz to 16 kHz Directivity Index (DI) : 8.6 dB, averaged 500 Hz to 16 kHz Nominal Impedance : 8 ohms Minimum Impedance : 6.3 ohms @ 230 Hz Crossover Network : 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency Low Frequency : 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround Enclosure Material : High impact polystyrene Grille : Thermoset composite coated steel, WeatherMax multi-layer foam Overload Protection : Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). Safety Agency Rating : Transformer is listed per UL1876 Colors : Black or white (-WH) Dimensions (H x W x D) : 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.) Net Weight (ea) : 12.2 kg (26.8 lb.) Shipping Weight (ea) : 14.0 kg (30.8 lb.) Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. Optional Accessories : MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket |
