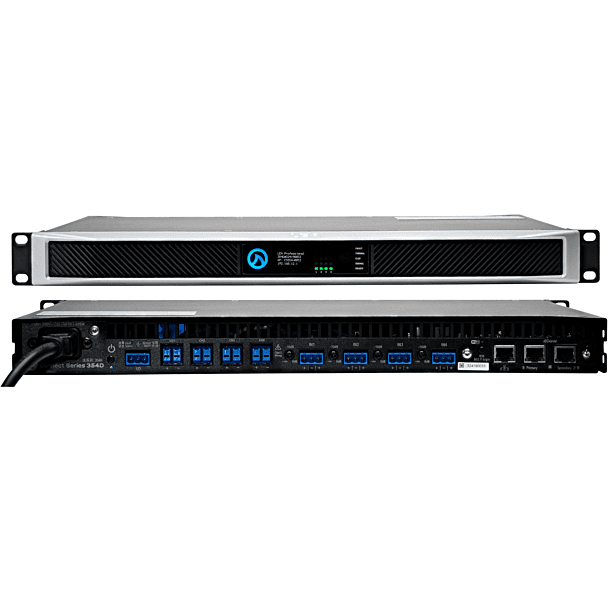

LEA Professional Connect 354D

SKU
LEA-CONNECT354D
$3,160.00
Account manager

Have a Question? Ask an Account Manager

4 Channel x 350 watt @ 4Ohm, 8Ohm, 70V and 100V pe

Introducing the world’s first Internet of Things- (IoT) enabled, professional-grade amplifier family – the Dante Connect Series. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in WiFi access point, connect to the venue’s WiFi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

  • Web Browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  •  96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  •  Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  •  Analog fully routable inputs
  •  External I/O Port for Remote On/Off and fault monitoring
  •  Highly Efficient Class D Output Stage for low AC Current draw

  • Web Browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

SPECIFICATIONS

Audio SpecInputsAnalog: Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity (2CH = 2 inputs, 4CH = 4 inputs, 8CH = 8 inputs)
THD+N0.1% (20Hz to 20kHz)
Frequency Response20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
Signal to Noise Level105dB (20Hz to 20kHz referenced to 8Ω)
Crosstalk70dB (20Hz to 20kHz)
Amplifier Output ClassificationClass D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSPDSP ArchitectureAnalog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input MatrixRoutable matrix; any input to any output with primary and secondary input priority
CrossoversUp to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ8 Band Parametric EQ per channel
Output Delay100ms per channel
Output ProtectionDC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable LimitingPeak Voltage and RMS Voltage
Load MonitoringRealtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
Control, Monitoring, NetworkUser InterfaceWeb Browser User Interface, 3rd Party API control, or CLOUD control
External I/OExternal I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
OperationAC Mains100VAC - 240VAC +/- 15% 50Hz or 60Hz
Power SupplyUniversal Switch Mode Power Supply with Power Factor Correction (No PFC in 84, 164, 88, & 168)
Physical SpecDimensions (L x W x H)Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
Weight352 & 702: 10lbs / 3.4kg | Shipping: 17.4lbs / 7.9kg
354 & 704: 14lbs / 4kg | Shipping: 18.7lbs / 8.5kg
84 & 164: 12.25lbs / 5.56kg | Shipping: 16.55lbs / 7.51kg
88 & 168: 13.55lbs / 6.15kg | Shipping: 17.95lbs / 8.14kg
CoolingFront to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
More Information
ConditionNew
MPN (manufacturer part number)CONNECT354D
