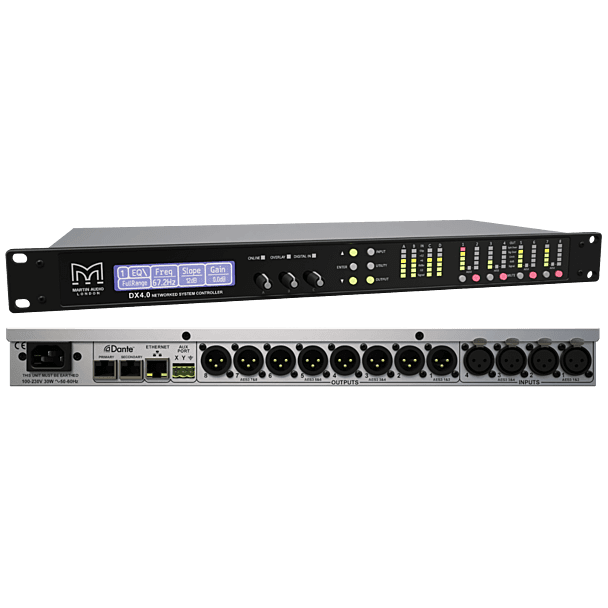

Martin Audio DX4.0 - Digital Loudspeaker Processors and Network Interface

Account manager

Have a Question? Ask an Account Manager

4-Input, 8-Output 96kHz Loudspeaker Processor and Matrix. Supports networked audio via DANTE and control via Martin Audio's VuNet software, allowing supporting products to be placed under VuNet control along with larger systems being driven by iKon amplifiers.

The Martin Audio DX4.0 is an advanced loudspeaker controller and system matrix with four input and eight output channels. Class-leading sonic performance is achieved by state-of-the-art audio converters and DSP algorithms, with a 96kHz sampling frequency delivering a nominally flat response beyond 40kHz.

Features

  • Four input channels and eight output channels loudspeaker processor and matrix
  • Analogue, AES3 and Dante™ digital audio inputs
  • High performance 96kHz DSP
  • Remote control and monitoring over Ethernet via Martin Audio VU-NET software
  • FIR optimisation for Martin Audio’s O-Line
  • VX limiting allows a passive enclosure the same protection as a fully active unit.
  • Comprehensive suite of EQ’s, delays and all pass filters.
  • Global mains operation 100-240V, 50-60Hz

Applications

  • Loudspeaker system digital controller
  • Front-of-house matrix to feed Dante digital audio to iKON amplifiers powering Martin Audio loudspeaker systems
  • Use with Martin Audio O-Line for FIR Optimisation
  • Use with Martin Audio U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable
Specification
GENERAL
TYPE4 input/8 output digital loudspeaker processor
OPERATING TEMPERATURE0 to 45°C
HUMIDITY RANGE0 to 80% RH (non-condensing)
AUDIO PERFORMANCE
INPUT IMPEDANCE>10kΩ balanced
OUTPUT IMPEDANCE<100Ω balanced
MAX INPUT LEVEL+20dBu
MAX OUTPUT LEVEL+18dBu into 600Ω
FREQUENCY RESPONSE10Hz - 40kHz
INPUT DYNAMIC RANGE>120dBa typ.
OUTPUT DYNAMIC RANGE>118dBa typ.
TOTAL HARMONIC DISTORTION<0.008% typ. 20Hz-20kHz
DIGITAL SIGNAL PROCESSING
SAMPLE RATE96kHz
AES3 INPUT SAMPLE RATE28kHz – 108kHz
AES3 OUTPUT SAMPLE RATE96kHz
POWER SUPPLY
AC OPERATING RANGE100-240V +/-10%
POWER CONSUMPTION30W
CONTROL AND MONITORING
PROTOCOLEthernet
CONTROL APPLICATIONMartin Audio VU-NET™
CONNECTORS
AUDIO INPUT4 x 3 pin female XLR for analogue or AES3 pairs
AUDIO OUTPUT8 x 3 pin male XLR for analogue or AES3 pairs
ETHERNET1 x shielded RJ45
DANTE™ NETWORK2 x shielded RJ45, primary and secondary
AUX PORTPhoenix connector for contact closure
MAINS POWER3 pin IEC
PHYSICAL
DIMENSIONS
  • (W) 482mm x (H) 1U/44mm x (D) 184mm
  • (W) 19in x (H) 1U/1.75in x (D) 7.2in
WEIGHT2.7Kg (6lbs)
