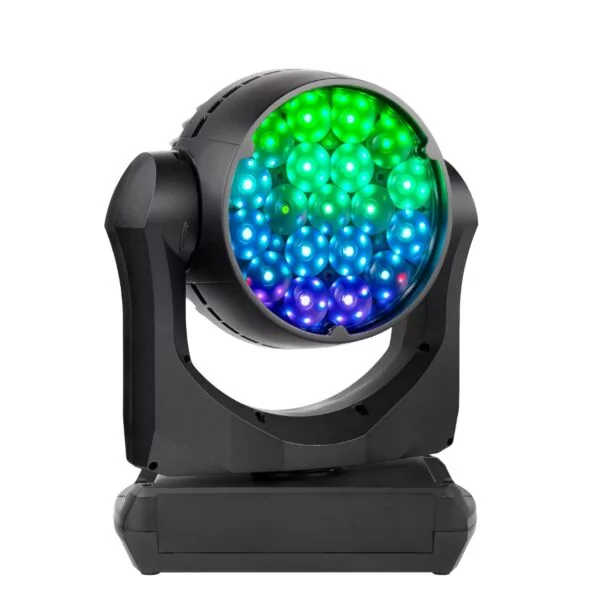

Length: 232mm (9.1in.)Width: 410mm (16.1 in.)Height:
* 516mm (20.3in.) maximum
* 488.4mm (19.2in.) head straight upWeight: 15.6kg (34.4lbs)Minimum center-to-center distance in side-by-side installation: 440mm (17.4 in.)
Beam color mixing: RGBW, independently variable 0 - 100%.Pre-programmed effects: Two ranges of FXZoom: Motorized with 1:8 Zoom RatioPan: 540°, coarse & fine control and speedTilt: 268°, coarse & fine control and speedPosition correction system: Absolute position monitoringAura Color mixing: RGB, independently variable 0-100%Beam and Aura Color wheel: Virtual color wheel. Open, indexing, continuous rotation, random color. 48 pre-programmed solid colorsBeam and Aura Color temperature control: Variable 2000 - 10000 KBeam and Aura Dimmer/shutter: 0 - 100% continuous electronic dimming, Choice of four dimming curves
Control options: DMX-512, Art-Net, sACN, P3, RDM16-bit control: Dimming, Color Mixing, Pan and TiltSetting and addressing: Control panel with backlit LCD display and 4 buttons, RDM or P3DMX channels: Compact Mode 17; Basic Mode 32; Extended Mode 89, Ludicrous Mode 512Fixture Identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20DMX/RDM Transceiver: Opto-isolated RS-485Ethernet Transceiver: 10/100MbitFixture software update: USB memory device, over DMX link or over Ethernet link
Zoom range: 1:8,Full Zoom Range at Half Peak: Narrow 6 ° Medium 21° Wide 40°Full Zoom Range at Tenth Peak: Narrow 7° Medium 33° Wide 59°Light source: Main Beam LED: 19* 40W RGBW LED; Aura LED: 141*0.3W RGB LEDBinning: Tight color and flux binningCalibration: Full Gamut Color CalibrationMinimum LED lifetime: 50000 hours (to >70% luminous output)Max total Primary LED engine power:: approx. 570W; Max total Aura LED engine power: approx. 50WColor Modes: Extended Mode and Calibrated Mode
Light engine luminous output: 19000 lumensFixture luminous output:
Wide beam: 10500 lumens
Narrow beam: 8500 lumensFixture Center intensity::
Narrow beam: 730000 cd
Wide beam: 30000 cdCRI (Color Rendering Index) : >73CQS (Color Quality Scale): 85TM-30 Rf (IES TM-30-15 Fidelity Index): 77TM-30 Rg (IES TM-30-15 Gamut Index): 117TLCI (Television Lighting Consistency Index): 61CCT: 6500 KelvinLED refresh rate - Standard Mode: Beam LED 1200 Hz Aura LED 1200 HzLED refresh rate - Low Noise LED Mode: Beam LED 19200 Hz Aura LED 4004 Hz
Housing: High-impact flame-retardant thermoplastic
Color: BlackProtection rating: IP 20
Orientation: AnyMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 2.4 m (95 in.)Installation mounting points: Two quarter-turn brackets for rigging
AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector) \DMX and RDM data in/out: 5-pin locking XLREthernet data: Neutrik Ether Con in/out
AC power: 100-240V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeMaximum total power consumption: 560 WMaximum total current at 100-120V: 6.4AMaximum total current at 200-240V: 2.8AIdle Consumption: 81 W (all effects static, zero light output)Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9A
Typical power data, calibrated mode, full intensity at 6500 K: 100 V, 60 Hz: 5.0A, 500 W, PF 0.99
120 V, 60 Hz: 4.1A, 500W, PF 0.99
208 V, 60 Hz: 2.4A, 500W, PF 0.97
230 V, 50 Hz: 2.2 A, 500W, PF 0.97
240 V, 50 Hz: 2.1A, 500 W, PF 0.97
Measurements made at nominal voltage with all effects active & LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
Cooling: Forced air (temperature regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F)Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Safety and Installation Manual
Transport and Storage
Three-unit Flightcase for MAC Aura PXL: P/N 91515052
Additional SIP Foam Flightcase Insert for MAC Aura PXL: P/N 91611860HU
Consumables
CR123A 3-volt lithium battery: P/N 05801011
Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174
Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors
Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU
Installation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
