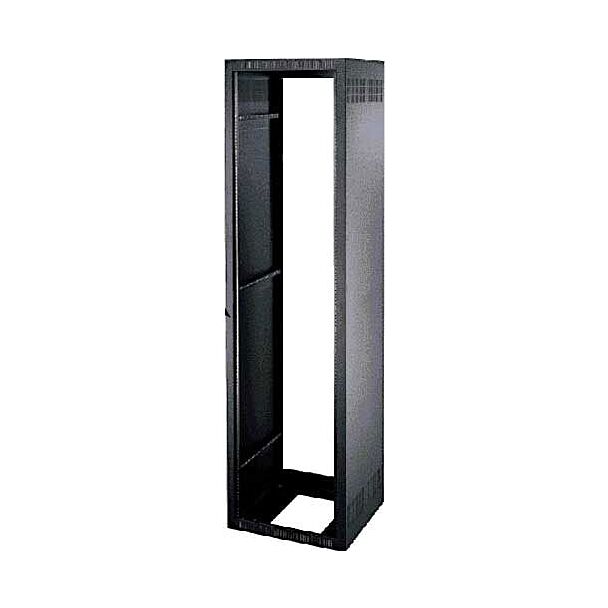

Middle Atlantic ERK-2720LRD ERK Series 27-Space 20"D, w/o Rear Door

Special Price $515.00 Regular Price $703.00




SKU
MIDD-ERK-2720LRD


An economical standalone rack with solid sides, the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control, future growth or other purposes. Seismic certified to protect your components.

Features

  • Fully welded construction for strength
  • Enclosure sides include top and bottom venting
  • Convenient lacing points and slotted rail brackets for cable management
  • Standard front adjustable 10-32 threaded rackrail with numbered spaces

Key Specifications

General Info

finish: Textured Black Powder Coat

UL Standards Tested: UL2416

Listing Agencies/Third Party Information

ASC E: 7-10

RoHS: Yes

Greenguard: Yes

UL Listing No: E173107

Seismic Rating: Yes

Dimensions

Usable Depth: 18.47

Usable Height: 47.375

Capacity Weight U S: 10000

Depth U S: 20

Height U S: 51.375

Width U S: 22

Primary Package Weight U S: 89

Rack Units: 27

Technical Information

Rackrail Type: 10-32

Seismic Load Capacity: 600

U L Load Capacity: 2500

Material: Steel

Mounting: Horizontal

EIA compliant 19” stand-alone / gangable equipment rack shall be Middle Atlantic Products model # ERK-2720LRD. Overall dimensions of rack shall be 51-3/8”H x 22”W x 20”D. Useable height shall be 27 rackspaces, useable depth shall be 18.47”. Rack shall be of fully welded construction. Weight capacity shall be 2,500 lbs. Rack shall be constructed of the following materials: top and bottom shall be 16-gauge steel, horizontal braces shall be 16-gauge steel welded to integral structural side panels of 16-gauge steel giving an 1/8” thick structure, all structural elements shall be finished in a durable black powder coat. Rack shall come equipped with one pair of fully adjustable 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces. Rack shall include solid side panels with vertical slotted vent pattern at top and bottom. Top and bottom of rack shall feature vertical slotted vent pattern. Rack shall have removable split rear knockout panels with 1/2”, 3/4”, 1”, and 1-1/2” electrical knockouts installed in base and a removable rear knockout panel with 1/2”, 3/4”, 1”, and 1-1/2” electrical knockouts and BNC knockouts for UHF/VHF antennae installed in top. Grounding and bonding stud shall be 1/4-20 threaded, installed in base of enclosure. ERK Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity, Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) “D” with lateral force requirements for protecting 600 lbs. of essential equipment in locations with the highest level of seismicity and top floor or rooftop installations with an Importance factor (Ip) of 1.5 when used with ERK-Z4 seismic floor anchor bracket. Rack shall be UL Listed in the US and Canada. Rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Rack shall be RoHS EU Directive 2002/95/EC compliant. Rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
More Information
SKU MIDD-ERK-2720LRD
Freeshipping Free Shipping
UPC (Universal Product Code) 00656747006289
MPN (manufacturer part number) ERK-2720LRD
Discount N/A
Condition New
Features N/A
Specs N/A
Producut Video N/A
