-Two Microphone Preamps with +48V
-AVB Up to 256 Thunderbolt Channels
-48-Channel Software Mixer with DSP
-Remote Control Using Web Application
-8-Channel ADAT Optical
-USB 3.0 Audio Compatibility
-DSP-Modeled EQ and Compression
-Digital Routing Through CAT-5e or CAT-6
-Standalone Mixer Operation
| MPN (manufacturer part number) | 9355 |
|---|---|
| UPC (Universal Product Code) | 00839128006034 |
| Condition | New |

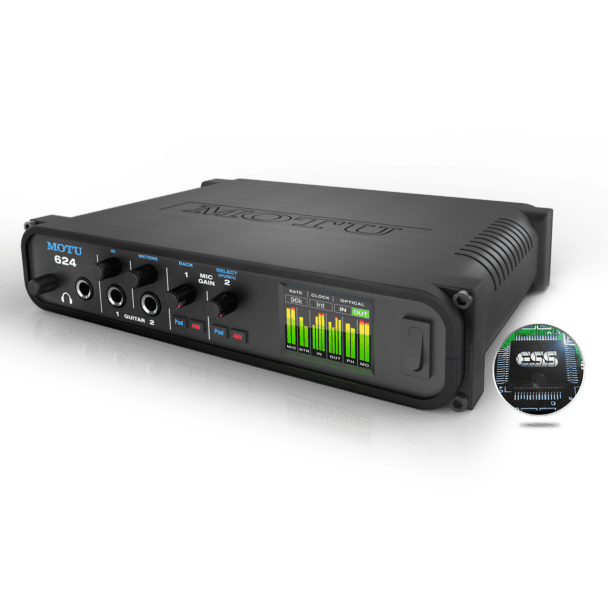

16 x 16 Thunderbolt™ / USB3 audio interface with renowned ESS Sabre32 Ultra™ DAC technology
You get 2 mic inputs, 2 guitar inputs, 4 x 6 balanced analog with dedicated main outs, 8-channel ADAT optical and independent headphone out for 16 inputs and 16 outputs. The optical ports also support stereo TOSLink (optical S/PDIF).
The 624 delivers round-trip latency (RTL) performance as low as 1.6 ms at 96kHz
over Thunderbolt™ — and an astonishing 1.9 ms over USB — with high-performance DAW hosts
Connects to your computer with Thunderbolt™, super-speed USB 3.0 or AVB/TSN Ethernet — with support for up to 256 audio channels (128 in and 128 out). USB audio class-compliant firmware and high-performance, industry-standard drivers work with any audio apps. Connects to your iPad™ with a standard camera connection kit (adapter).
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Mic inputs | 2 x XLR mic inputs Preamp gain: 0 to +63 dB (digitally controlled) |
| Analog inputs | 2 x 1/4" hi-Z guitar inputs (front panel) 4 x 1/4" TRS line inputs (balanced/unbalanced) Max level: +24 dBu (range -96 to +22) |
| Analog outputs | 6 x 1/4" TRS line out (balanced, DC coupled 5v) Max level: +20 dBu (range -4 to +20) 1 x 1/4" TRS stereo headphone |
| Digital I/O | 1 bank (8 ch) of ADAT optical at 1x sample rates 1 bank (4 ch) of SMUX optical at 2x sample rates Switchable to stereo TOSLink (optical S/PDIF) |
| Total I/O | 16 inputs / 16 outputs (32 total) at 1x sample rates 12 inputs / 12 outputs (24 total) at 2x sample rates 8 inputs / 8 outputs (16 total) at 4x sample rates |
| Computer I/O | 1 x Thunderbolt 2 (Mac and Win) Thunderbolt 1 & 3 compatible 1 x USB 3.0 (Mac and Win) USB 2.0 and iOS compatible (class compliant) 1 x AVB/TSN Ethernet (Mac only) Requires OS X 10.11 or later |
| Computer I/O channels | Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 3.0 (44.1 to 96 kHz): 128 in/out USB 3.0 (176.4 to 192 kHz): 64 in/out AVB/TSN Ethernet: 16 to 128 in/out depends on host computer speed |
| Headphone | 1 x 1/4" TRS stereo phone (assignable) |
| Phantom power | 2 x individual +48V |
| Front panel | 1 x 1/4" TRS headphone output 2 x TRS hi-Z guitar input 1 x digital rotary encoder • main/phone volume 2 x digital rotary encoders • guitar gain 2 x digital rotary encoders • mic preamp gain 4 x switches • (2) Pad and (2) 48V Phantom 160 x 128 pixel RGB LCD for level meters / menu nav Power switch |
| Power | External 12-18V DC power supply 1.0A max • tip pos or neg |
| Dimensions and weight | (width x depth x height, enclosure only) 8.6 x 7 x 1.75 inches 22 x 17.75 x 4.5 cm 2.2 lbs / 1.0 kg |
