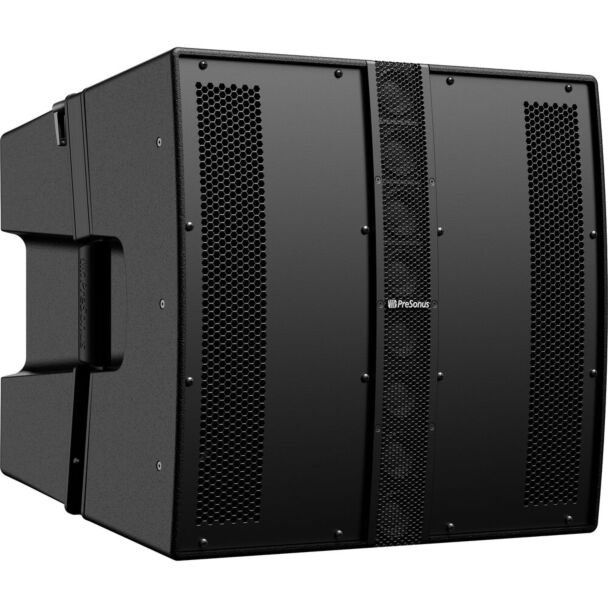

Presonus CDL12P - Constant Directivity Sound Reinforcement Loudspeaker

he CDL12P is a 12″ hybrid point-source/line‑array, constant-directivity loudspeaker from PreSonus. It’s designed to deliver wide, consistent coverage with focused energy—ideal for touring bands, mobile DJs, corporate AV, and installations

Key Specs & Highlights

• Power: 500 W LF + 500 W HF Class D amps (1,000 W total) for high SPL and headroom

• Drivers: 12″ long‑throw woofer and an 8‑element, 2″ HF array arranged in a 15° constant curvature arc

• Coverage: 120° horizontal dispersion; stacking up to 6 units expands vertical reach to ~90°

• DSP Presets: Rear-panel interface supports 1–6 box array modes, 90 Hz high‑pass filter, plus subwoofer integration. Clip/limiter indicators ensure safe operation

• Build & Rigging: Weighs ~63 lb, features robust plastic enclosure with steel grille; integrated flyware and pin‑loaded rigging hardware for safe suspension

• Pole Mount: Dual-angle 0°/7.5° socket lets you mount one or two units on tripods or subs

• Loop‑thru Power: PowerCON IN/OUT lets you chain up to six speakers from one outlet

• Price: MSRP around $1,049.99 per unit

Benefits

1. Consistent coverage – Uniform sound with minimal off-axis loss over wide and tall spaces.

2. Modular array flexibility – Works alone, stacked, or flown up to six units for scalable vertical control.

3. User‑friendly deployment – Intelligent presets simplify setup; loop‑thru power and rigging options make touring setups smoother.

4. Robust and portable – Durable build yet lightweight enough for road use.

Use Cases

• Single unit: Great for standalone use on a pole or sub.

• Hand‑stack: Pair two on a tripod for 30° vertical coverage.

• Flown array: Rig 3–6 for controlled vertical beams (up to ~90°).

• Enhanced low end: Add a CDL18s, ULT18, or AIR18s sub for full-range output.
