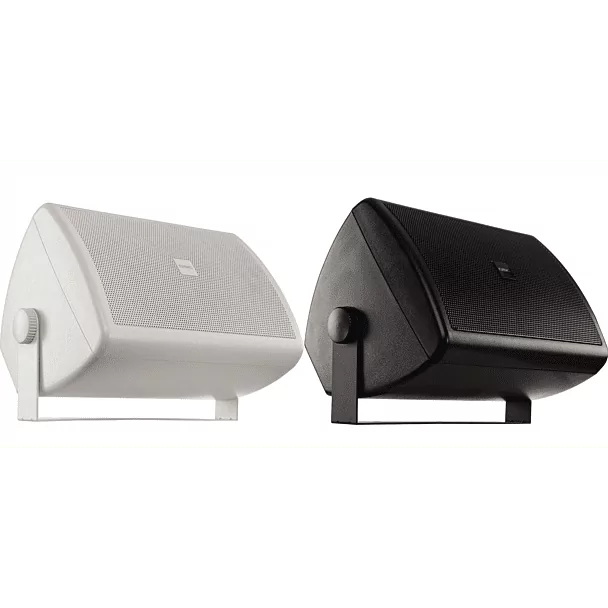

QSC AC-S6T - 6.5" 70/100V Surface Mount Loudspeaker (Pair)

SKU
QSC-AC-S6T

-Black or White
-Improved musicality often not seen in typical BGM class products.
-Ported baffle for increased low frequency extension down to 70 Hz.
-Low saturation 70/100V transformers with 8 ohm bypass.
-4-pole Euroblock connector eases system wiring.

$350.00
Account manager

Have a Question? Ask an Account Manager

AcousticCoverage™ is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.  Applications for AcousticCoverage™ speakers include wide area paging systems, background music, office buildings, healthcare facilities, concourses, transportation terminals and more.

Features



  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 70 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™, applied using Q-SYS processing or CXD amplifier platforms.
  • Available in black (RAL 9011) or white (RAL 9010).
  • Complete EASE, CAD & BIM information available online.
SpecificationsAC-S6T
Effective frequency range160 Hz–20 kHz
Rated noise power / voltage230 watts / 15.5 volts rms
Broad-band sensitivity386 dB SPL
Coverage angle (-6 dB)130° conical (500 Hz–5 kHz)
Directivity factor (Q)6
Directivity Index8 dB
Maximum continuous SPL4101 dB
Maximum peak SPL4107 dB
Rated impedance8 ohms
Recommended amplifier power60 watts into 8 ohms
Transformer taps70V: 30, 15, 7.5, 3.7, 1.9 watts
100V: 30, 15, 7.5, 3.8 watts
8 ohm bypass
LF transducer165 mm (6.5 in) Polypropylene woofer with 25 mm (1 in) voice coil
HF transducer25 mm (1 in) Aluminium dome tweeter with 25 mm (1 in) voice coil
Input connector typeEuroblock connector with parallel output
Enclosure materialUV treated, high impact ABS polymer
Grille materialPowder coated steel
Yoke materialPowder coated steel with brass inserts
Enclosure Details
  • Ingress protection
  • Operating environment
  • Operating Temperature Range

IP-44
Designed for indoor use
-20 to 50° C (-4 to 122° F)
Product Dimensions (HWD) inches11.9 x 8.5 x 7.8
Product Dimensions (HWD) mm303 × 215 × 197
Net Weight8.3 lb / 3.8 kg
Shipping weight8.4 kg (18.6 lb)
pair packed
Shipping Dimensions (HWD) inches14.1 × 10.5 × 18.5
pair packed
Shipping Dimensions (HWD) mm359 x 267 x 470
pair packed
Included accessoriesYoke mount system, euroblock connector
More Information
ConditionNew
MPN (manufacturer part number)AC-S6T
UPC (Universal Product Code)684284066824
