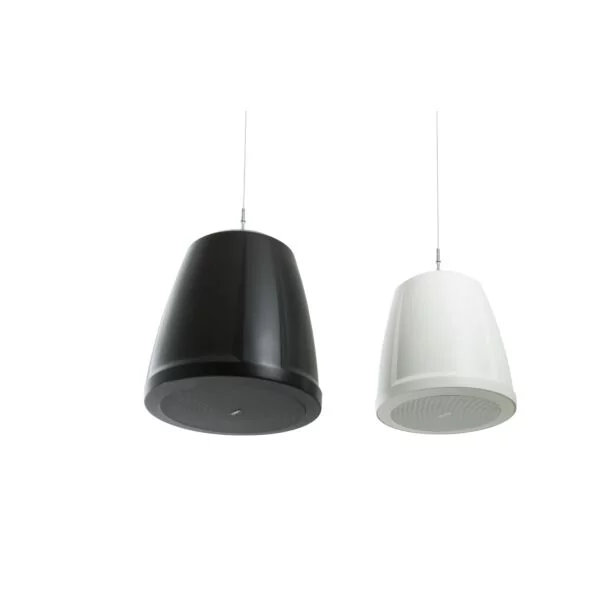

QSC AD-P6T - 6.5" 2-way Pendant Loudspeaker

$280.00

discount



SKU
QSC-AD-P6T


-Black or White

- 70/100V transformers

-Included mounting hardware

The QSC AcousticDesign™ AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

Features

  • Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 2x quick-link suspension cables and slip-lock fasteners provided
  • Intrinsic Correction™ voicings available via Q-SYS Platform and CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16Ω bypass
  • Blemish-free removable logo
  • Sealable input cover to prevent moisture from entering the input terminal block
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online

System Details

AD-P6T

Effective frequency range 2

55 Hz – 20 kHz

Rated noise power / voltage 1

60 watts / 31 volts (rms)

Sensitivity [dB] 3
Sensitivity at 4m, 100V maximum tap

88
TBD

Rated coverage (-6 dB) 4

135° conical DMT™

One-third octave frequency band contribution at full power using 100V maximum tap at 4m. (Hz / dB)

500 / TBD; 630 / TBD; 800 / TBD
1000 / TBD; 1250 / TBD; 1600 / TBD
2000 / TBD; 2500 / TBD; 3150 / TBD
4000 / TBD

Directivity factor 4

6.5

Directivity index [dB] 4

8

Maximum continuous SPL [dB] 5

106

Maximum peak SPL [dB] 5

112

Nominal impedance [ohms]

16

Recommended amplifier

120 watts

Transformer taps / impedance

16Ω (in bypass setting)
7.5W (70V); 15W (100V) Tap: 667Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω

LF transducer

165 mm [6.5 in] weather treated paper cone woofer

HF transducer

19 mm [0.75" in] aluminum dome tweeter

Input connector type

Euroblock connector with parallel output

Enclosure material

Impact Resistant ABS

Grille material

Powder coated steel

Ingress protection

IP-34

Operating environment

Designed for indoor use

Operating temperature range

-20 to 50° C [-4 to 122° F]

Net weight

4.1 kg [9 lb]

Product dimensions (Diameter x Height)

Ø 287 x 323 mm [Ø 11.3 x 12.7 in.]

Shipping weight

5.4 kg [11.8 lb]

Shipping dimensions (H x W x D)

343 x 406 x 356 mm [13.5 x 16 x 14 in]

Included mounting hardware

Two quick-link cable assemblies (length 3.25m / 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille.

Safety Agency

UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.

More Information
SKU QSC-AD-P6T
Freeshipping Free Shipping
UPC (Universal Product Code) 684284067609
MPN (manufacturer part number) AD-P6T
Discount INSTANT SAVINGS: 10% OFF
Condition New
Features N/A
Specs N/A
Producut Video N/A
