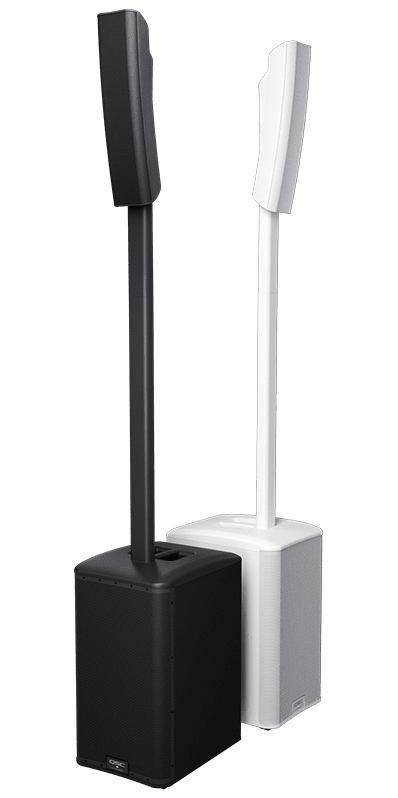

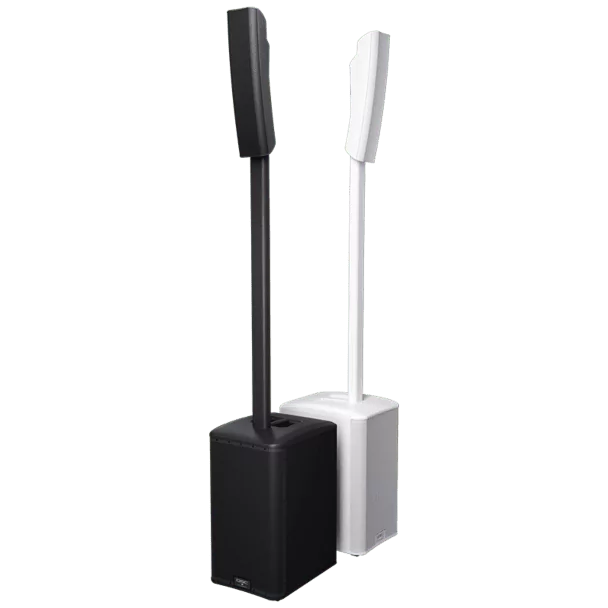

QSC KC12 - 3-Way Powered Column loudspeaker System
SKU
QSC-KC12
- For DJs, Bands, Singer/Songwriters
- Bluetooth Audio w/ TWS Stereo Streaming
- Powered 12" Subwoofer Module
- 3000W Amplifier + Integrated DSP
- Two 4" Midrange Drivers
- 1" Compression Driver w/ LEAF Waveguide
- 145 x 35° Coverage
- Two Combo XLR-1/4" + 3.5mm TRS Inputs
- Includes 32" Column Speaker Pole
- Includes Power Cord
$2,199.99
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
The QSC KC12 is a powered 3-way column loudspeaker system designed for high-performance sound reinforcement. It's ideal for live sound, DJs, corporate events, and more. Here are some key features and highlights:
Key Features:
- 3-Way Design: Combines high, mid, and low-frequency drivers for clear, full-range audio.
- Integrated Amplification: Built-in high-powered amplifier ensures consistent performance without the need for external amps.
- Column Format: Slim and lightweight design allows for a sleek appearance and easy portability.
- Wide Dispersion: Provides broad coverage, ensuring consistent sound across large spaces.
- DSP Control: Advanced Digital Signal Processing optimizes sound quality and offers presets for various applications.
- Multiple Inputs: Includes versatile connectivity options, such as XLR, TRS, and RCA inputs, for integration with different audio sources.
- Durability: Rugged construction for reliability in demanding live sound environments.
Applications:
- Live Performances: Crystal-clear vocals and instruments for musicians and bands.
- Mobile DJs: Compact design with rich bass and smooth highs.
- Corporate Events: Clear and professional sound for presentations and conferences.
- Houses of Worship: Balanced audio for sermons and music.
Why Choose the QSC KC12?
- High-quality sound with professional-grade components.
- Portable and easy to set up for various venues.
- Built-in protection circuitry to prevent overloading and ensure long-term durability.
Specifications
| Model | KC12 |
|---|---|
| Configuration | Active 3-Way Column Loudspeaker System |
| LF Transducer | 305 mm (12-inch), cone |
| MF Transducer | 2 x 102 mm (4-inch), cone |
| HF Transducer | 25.4 mm (1-inch), compression driver |
| Frequency Response (-6 dB) | 45 Hz - 18.5 kHz |
| Frequency Range (-10 dB) | 40 Hz - 20 kHz |
| Nominal Coverage Angle | 145° H x 35° V |
| Maximum Rated SPL1 (peak) | 132 dB @ 1 m |
| Amplification (peak) | Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W) |
| Cooling | Low noise, variable speed fan |
| Controls | 1 x Rotary encoder and 2 x Push buttons 3 x Rotary level potentiometers 1 x AC power switch |
| Indicators | Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch) 2 × Power LEDs (blue), Subwoofer front and rear 1 x Standby LED (yellow) 1 x Limiter LED (red) 3 × Input Signal/Clip LEDs (Signal: green / Clipping: red) Input A: Mic/Line with assignable Hi-Z selected LED Input B: Mic/Line with assignable +48 V selected LED Input C: Bluetooth selected LED |
| Connectors | 2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V) 2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP) 1 × 3.5 mm TRS (Stereo Input) 1 x USB-C (Output: 5V/3A) 1 × locking IEC power connector |
| AC Power Input | Universal power supply, 100-240 VAC, 50/60 Hz |
| AC Power Consumption2 | 1100-240 VAC ~ 3.7-1.8 A |
| System Components | KC12T 145° Dual 4-inch Column System Loudspeaker KC-SP32 32-inch Column System Pole KC12S 3kW Active12-inch Column System Subwoofer |
| Enclosure Materials | Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum |
| Color | Black (RAL 9011), White (RAL 9010) |
| Grille | Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge) |
| System Height | Tall Deployment: 2270 mm / 89.4 in (with KC-SP32) Short Deployment: 1463 mm / 57.6 in (without KC-SP32) |
| Dimensions (H x W x D) | KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 in |
| Net Weight | Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32) KC12T: 4.0 kg / 8.9 lb KC-SP32: 1.3 kg / 2.9 lb KC12S: 22.0 kg / 48.5 lb |
| Supplied Accessory | KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32 |
| Accessory | KC12 CVR: Cover for KC12S |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Condition | New |
|---|---|
| MPN (manufacturer part number) | KC12-BK |
| UPC (Universal Product Code) | 684284085788 |
