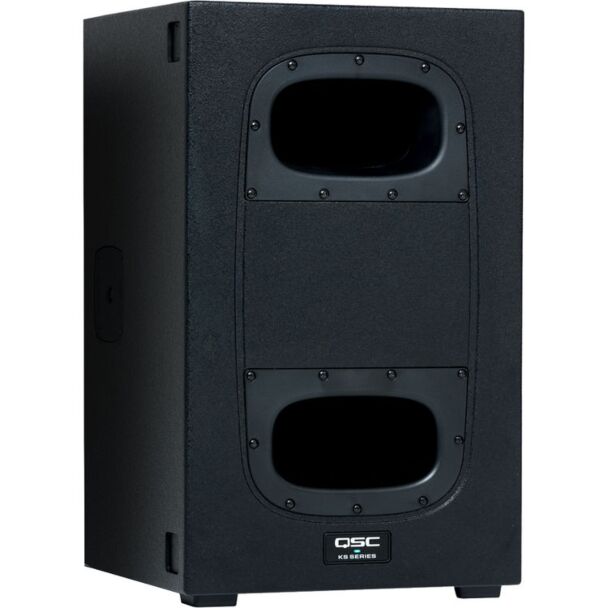

QSC KS112 - 12" 2000W Powered Subwoofer With DSP
-For Bands, Bars, and Mobile Entertainers
-Compact, High-Output Design
-Woofer: 12"
-Frequency Response: 41 to 108 Hz
-2000 Watt Class-D Power Module
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
Musicians/Bands ∙ Clubs/Venues ∙ DJs/Dance · AV Rental/Production
The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. K2series
The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D ampli er module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
KEY FEATURES
-
High Output in an ultra-compact form factor
-
2000 Watt class D ampli er module
-
12-inch, long-excursion driver; 6th order bandpass design
-
Variable crossover and savable/recallable Scenes for commonly-used applications
-
Intrinsic CorrectionTM tuning and loudspeaker management
-
Re ned, professional appearance looks great in any application
-
Rugged painted wood enclosure for long life and lasting durability
-
Deployment in either vertical or horizontal positions with dual M20 speaker pole ttings
-
Optional KS-LOC security cover prevents unauthorized tampering of controls
-
Complete EASE & CAD information available online
-
6-Year Warranty*
|
KS112 |
|
Con guration: 6th-Order Bandpass Subwoofer |
|
LF Transducer: 12-inch (305 mm), Cone |
|
Frequency Response (-6 dB): 41 Hz - 108 Hz |
|
Frequency Range (-10 dB): 38 - 121 Hz |
|
Maximum Rated SPL1: 128 dB @ 1 m (peak) |
|
Ampli er: Class D |
|
Cooling: Low-noise, variable speed fan |
|
Controls: Power On/Off Gain Control Rotary encoder |
|
Indicators: 2 x Power LED (front and rear) Input Signal LED Limiter active LED |
|
Connectors: 2 x locking XLR/F 1⁄4” combo 2 x XLR/M (Loop-thru Output) 1 x locking IEC power connector |
|
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz |
|
AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A |
|
Enclosure Details |
|
Enclosure: 15 mm Birch Plywood |
|
Color: Black (RAL 9011) |
|
Grille: Internal woofer cover |
|
Dimensions (HxWxD): 24.5 x 15.5 x 24.25 inches 622 x 394 x 616 mm |
|
Net Weight: (including casters) 28.4 kg (62.6 lbs) |
|
Shipping Weight: 34.5 kg (76 lbs) |
|
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
|
Included Accessories: 4 x Low-Noise, Heavy Duty Casters |
|
Optional Accessories: KS112 Cover, KS-LOC Lock-Out Cover SP-16X Extension Pole, SP-36 Extension Pole |
| Condition | New |
|---|---|
| MPN (manufacturer part number) | KS112-NA |
| UPC (Universal Product Code) | 00684284071163 |
