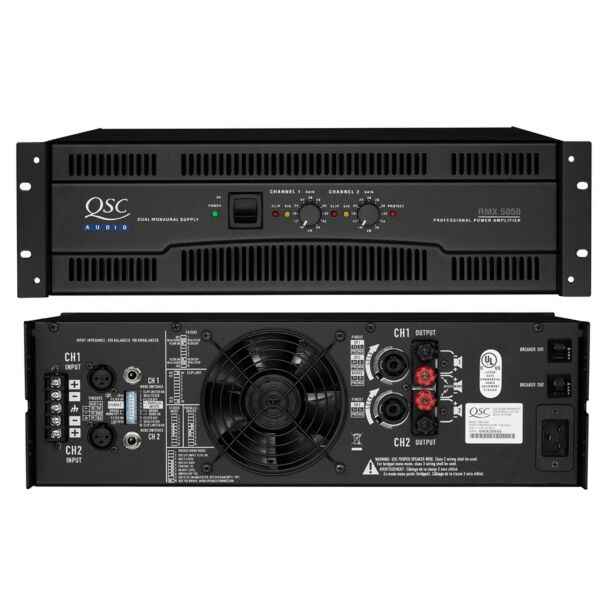

QSC RMX5050A 1100W RMX Series Power Amplifier QSC's RMX 5050A power amplifier represents the state-of-the-art in professional quality performance at an affordable price. Perfectly suited for a wide range of sound reinforcement applications including professional touring, performing musicians, and mobile entertainers, the RMX 5050 is optimized to deliver high levels of sustained power, extraordinary audio performance and road-proven reliability. Like its smaller sibling (the RMX 4050HD), the RMX 5050 features a three-tier, Class H design. The RMX 5050 is extremely efficient at real world power levels. Less AC current is wasted and more goes into producing useful audio power. The RMX 5050 uses the best available component upgrades to increase peak power by 25% over the RMX 4050HD. Like all RMX amps, the RMX 5050 features balanced 1/4" TRS, XLR and barrier strip inputs, binding posts and Neutrik Speakon® outputs, front-mounted gain controls, plus signal and clip LED indicators to monitor performance.
|UPC (Universal Product Code)||00684284003935|
|MPN (manufacturer part number)||RMX5050A|
|Discount||INSTANT SAVINGS: 10% OFF|
|Features||2 channels, 1100 watts/ch at 8Ω, 1800 watts/ch at 4Ω, 2500 watts/ch at 2Ω, 5000 watts/ch at 4Ω (bridged) The new flagship of the RMX line, the RMX 5050 provides extremely high power and represents tremendous value The RMX 5050A provides advanced thermal performance, delivering higher continuous power in 2-ohms stereo or 4-ohms bridged applications Dual mono, high current power supply for increased reliability and performance 3RU chassis only 16" deep Professional quality performance - incorporates road-proven QSC designs High-current toroidal transformers for greater two-ohm power and low noise Independent user-defeatable clip limiters reduce distortion Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs for maximum flexibility Binding post and Neutrik Speakon outputs Front mounted gain controls for easy access Signal and Clip LED indicators to monitor performance 3-year warranty. An optional 3-year extended service contract is available. Ask your dealer for details.|
|Specs||STEREO MODE, Both Channels Driven 8 ohms FTC 20 Hz - 20 kHz, 0.1% THD EIA 1 kHz, 0.1% THD 1050 W 1100 W 4 ohms FTC 20 Hz - 20 kHz, 0.1% THD EIA 1 kHz, 0.1% THD 1600 W 1800 W 2 ohms FTC 20 Hz-20 kHz 0.1% THD EIA 1 kHz 1% THD 2000 W 2500 W BRIDGE-MONO MODE 8 ohms FTC 20 Hz-20 kHz 0.1% THD EIA 1 kHz 0.1% THD 3200 W 3600 W 4 ohms EIA 1 kHz 1% THD 5000 W Distortion (SMPTE-IM) Less than 0.02% Distortion (Typical) 20 Hz - 20 kHz: 10 dB below rated power 1 kHz and below: full rated power Less than 0.02% Less than 0.02% Frequency Response 20 Hz - 20 kHz, 8 ohms, LF filter bypassed, +0/-1 dB 5 Hz - 50 kHz, 8 ohms, LF filter bypassed, +0/-3 dB Damping Factor Greater than 250 @ 8 ohm Noise (unweighted) 100 dB below rated output (20 Hz - 20 kHz, 8 ohm load) Input Sensitivity 1.42 Vrms for 1050 watts into 8 ohms Voltage Gain 64x (36 dB) for 8 ohm load Input Impedance 20k ohm balanced, 10k ohm unbalanced Controls Front: Controls Rear: AC power switch, Ch. 1 and Ch. 2 gain control 10-pole DIP switch featuring LF filter on/off, LF filter 30/50 Hz, Clip Limiter on/off controls for each channel and switches for selecting Stereo, Parallel, or Bridge mode. Push-button circuit breaker for each channel. Indicators Power-On: Green LED, Protect: Red LED Signal -30dB: Yellow LED, Clip: Red LED Connectors Input: Connectors Output: XLR female, TRS (1/4"), and barrier-strip screw terminals, each channel Binding posts and Speakon® outputs (Ch. 1 Speakon wired for biamp) Cooling Continuously variable-speed fan, rear-to-front air flow Amplifier Protection Short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads Load Protection On/off muting, DC fault output crowbar Power Requirements 100, 120 or 240 Volts AC (±10%) 50-60 Hz (factory configured) 120V models require 20 Amp service and are supplied with a NEMA 5-20 plug on the cordset. Dimensions 19" (48.3 cm) wide, 5.25" (13.3 cm) tall, 15.9" (40.39 cm) overall depth Weight 75 lbs (34.02 kg) net, 87 lbs (39.46 kg) shipping|
