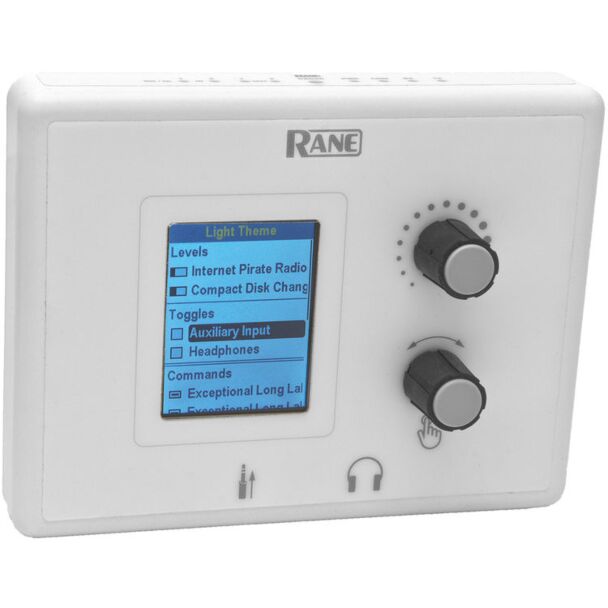

Rane RAD26 - One Room RAD Remote




Using one shielded category cable drop, the RAD26 provides any room with a dual 4-watt amp, end user control via a color custom LCD display & encoders, a dual universal audio I/O interface, plus headphone output and line-level input jacks for local needs. Three logic closure inputs and three active-low outputs add to the control capabilities. The amplifier permits a single channel option at 8 watts into 8 ohms. A RAD26 provides enough I/O and control to support one room in a HAL audio system which may require these features:

Source and level behave like a DR3 remote, but with any combination of Levels, Toggles, Selections or Commands.

On the back there are 2 balanced Euroblock Mic / Line / Line-Plus audio inputs with the mode set in Halogen software. The Line-Plus inputs accept unbalanced left and right signals and sums them to mono. 24V phantom power is available for condenser mics. For end users, there is a 3.5 mm Aux input on the underside of the front, accepting the output of a smartphone, laptop or other consumer device.

A built-in 4-watt stereo amplifier powers a small stereo pair of room speakers, or this amp can be switched in software to power a single 8-watt speaker. Balanced line outputs can drive an external amplifier or powered subwoofer for more output.

Software logic senses an inserted connector at the Aux In or Headphone jacks to optionally override the rear connections.

The RAD26 fits with most decor in a matte white metal box. A programmable ambient light sensor automatically dims the display and status LEDs in darkened rooms.


Hotels with small meeting rooms and spa rooms require local inputs and control, but must also receive paging or music from elsewhere in the building. Many offices and campuses provide meeting and conference rooms for small groups with in-room A/V presentations, but must also receive emergency announcements. Other RADs and DRs can provide these functions, but require more than one shielded CAT 5 cable. The RAD26 provides all the features required in a single RAD.

More Information
Freeshipping Free Shipping
UPC (Universal Product Code) 00687499177132
MPN (manufacturer part number) RAD26
Condition New
Features N/A
Specs N/A
Producut Video N/A
