RANE SYSTEM ONE - Standalone DJ controller with motorized platters
- Motorized Platters
- 7" Touchscreen
- Dynamic Internal FX Suite with 29 FX
- MAG FOUR Crossfader + Channel FX
- USB-C and 3 x USB-A
- Dedicated Loop Controls + 3-Band EQ
- XLR and RCA Main Output + 1/4" Booth Out
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us

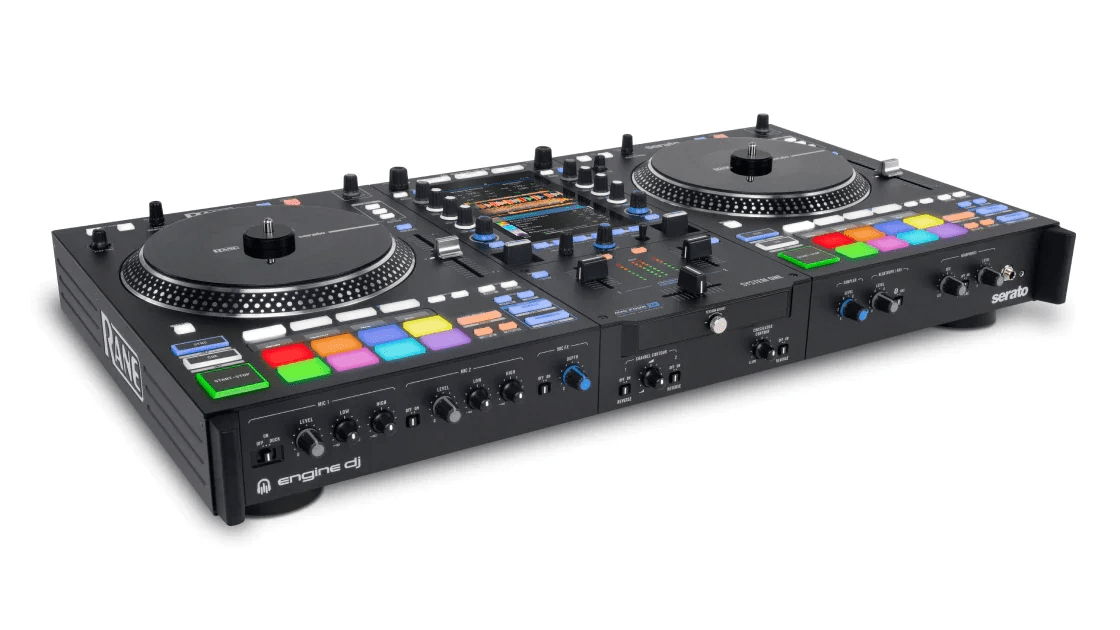

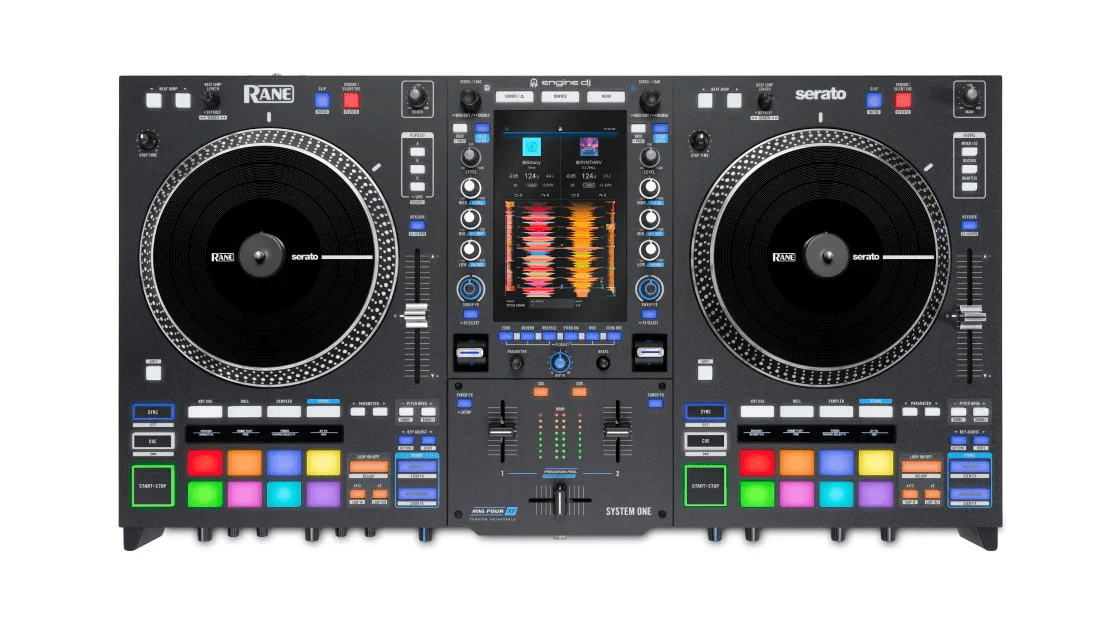

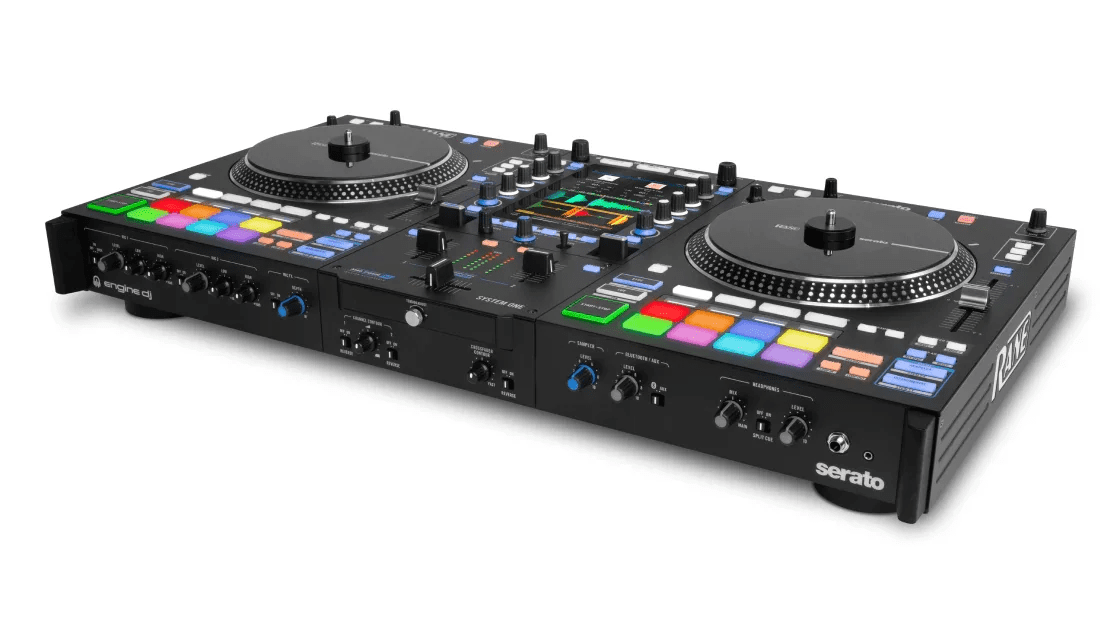

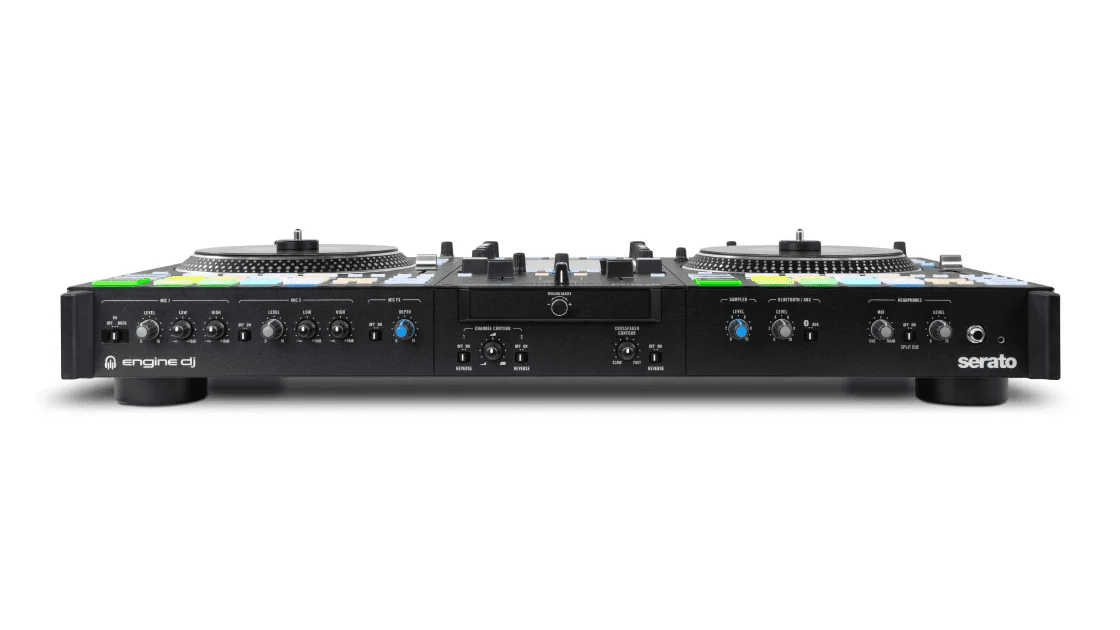

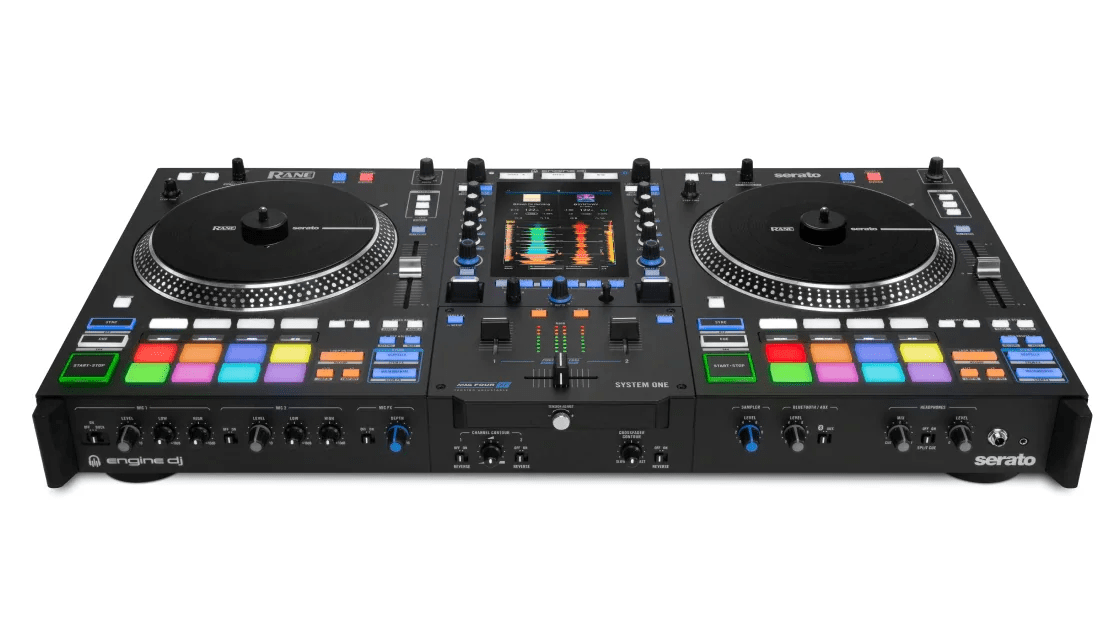

The RANE SYSTEM ONE is the world’s first all-in-one standalone DJ system with motorized platters.1 This professional 2-channel unit combines the tactile, high-torque feel of traditional vinyl with the laptop-free freedom of the Engine DJ operating system. Designed for open-format DJs and scratch artists, it features authentic 7.2-inch aluminum motorized platters that deliver the precision of a classic turntable setup in a single, road-ready chassis.2
Key Features of the RANE SYSTEM ONE
-
Standalone Motorized Performance: The first RANE hardware to feature the Engine DJ OS, allowing you to perform without a laptop using music from USB, SD cards, or an internal SATA drive.
-
Authentic Vinyl Feel: Dual 7.2-inch high-torque motorized platters with quick-release acrylic disks and adjustable torque settings to match your personal scratching style.3
-
Advanced Stems Control: Execute real-time remixes with standalone Stems, including dedicated buttons for Instant Acapella and Instrumental isolation.4
-
Pro-Grade Mixer & Faders: Equipped with RANE’s legendary MAG FOUR tension-adjustable crossfader and smooth Precision Feel channel faders for flawless cuts.
-
OmniSource Connectivity: Seamlessly switch between standalone mode and software like Serato DJ Pro without rebooting the unit—perfect for back-to-back performances.
-

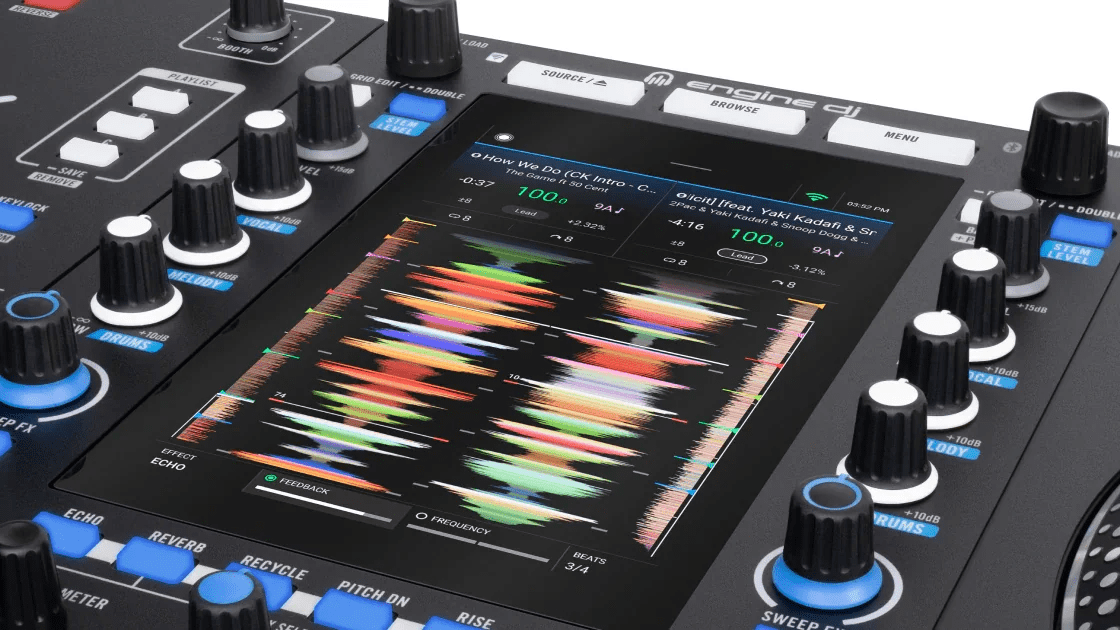

High-Definition Interface: A vibrant 7-inch HD multi-touch screen provides instant visual feedback for waveforms, library navigation, and FX control.
Technical Specifications
| Feature | Detail |
| System Type | 2-Channel Standalone DJ System |
| Platters | 7.2" Motorized Aluminum with Vinyl Tops |
| Operating System | Engine DJ (Built-in) / Serato DJ Pro (Included) |
| Storage Inputs | 3 USB-A, 1 USB-C, 1 SD Card, 2.5" SATA Drive Bay |
| Audio I/O | XLR Main/Booth, RCA Master, 2 XLR-Combo Mic Inputs |
| Weight | 29.4 lbs (13.3 kg) |
Technical Specifications
Digital Audio
Converters
Cirrus Logic, 24-bit PCM, 44.1 kHz
Digital Signal Processing
32-bit, Floating Point, Double Precision
Audio Outputs
Main Output
(XLR, RCA stereo pair)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Balanced XLR
Max Output Level (XLR):
8 Vrms
Max Output Level (RCA):
4 Vrms
Frequency Response:
20 Hz–20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Booth Output
(1/4” [6.35 mm] TRS)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Balanced TRS
Max Output Level:
8 Vrms
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N:
0.002% @ 1 kHz, 4 Vrms
Channel Separation:
> 80 dB
Input Gain Trim Range:
Off to +12 dB
Output Level Range:
Off to 0 dB
Headphone Output
(1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)
DAC:
24-bit
Dynamic Range:
117 dB
Output Type:
Stereo TRS (1/8” and 1/4” jacks)
Cue Features:
Cue / Split Cue
Max Output Level (No Load):
4 Vrms
Max Power Output @ 50 Ω:
150 mW
Frequency Response:
20 Hz – 20 kHz: +0, -1 dB
THD+N @ 1 kHz, 4 Vrms (No Load):
0.002%
THD+N @ 1 kHz, Full Power @ 50 Ω:
0.08%
Channel Separation:
> 80 dB
Level Control Range:
Off to 0 dB
Inputs (Combo XLR/1/4” [6.35 mm] TRS)
ADC:
24-bit, 115 dB DR
Input Type:
Balanced XLR/TRS combo
Max Input Level:
110 mV
Analog Gain:
25 dB
Max System Gain:
60 dB
Frequency Response @ 20 Hz:
-2.5 dB
Frequency Response @ 20 kHz:
-5 dB
THD+N @ 0.1 Vin, Gain = 25 dB:
0.015% (100 Hz–20 kHz)
DR (A-weighted), Gain = 25 dB:
102 dB
DR (A-weighted), Gain = 60 dB:
72 dB
IRN (A-weighted), Gain = 60 dB:
-132 dB
IRN (20 Hz–20 kHz), Gain = 60 dB:
-130 dB
Auxiliary Input
(RCA stereo pair)
ADC:
24-bit, 115 dB DR (A-weighted)
Input Type:
Unbalanced RCA
Max Input Level:
4 Vrms
Frequency Response:
20 Hz –20 kHz: +0, -1 dB
THD+N @ 3 Vrms, Unity Gain:
0.005% (20 Hz–20 kHz)
Gain Range:
Off to +12 dB
DR (A-weighted), Unity Gain:
108 dB
Crosstalk:
≤ -90 dB
Performance Pads
Pads:
16 total, on/off multi-color back-lit (8 per deck)
Faders
Channel Faders:
2 PRECISION FEEL tension-adjustable with contour and reverse
Crossfader:
1 MAG FOUR tension-adjustable with contour and reverse
Displays
Main Display:
7"/178 mm (diagonal) full-color LED-backlit display with touch interface
Pad Displays:
(8) 128 x 32 monochrome OLEDs
CPU
Processor:
Quad-core ARM®
RAM:
4 GB
Wi-Fi & Bluetooth
Wi-Fi:
- 2.4GHz/5GHz
- 802.11a/b/g/n/ac
- Wi-Fi 5
Bluetooth:
v5.4
Supported Media
File Systems
- exFAT (recommended)
- FAT32
Playable Formats
- AAC/M4A
- AIF/AIFF (44.1–192 kHz, 16–32-bit)
- ALAC
- FLAC
- MP3 (32–320 kbps)
- MP4
- Ogg Vorbis
- WAV (44.1–192 kHz, 16–32-bit)
Streaming Services
- Onboard Streaming Services (subscription required)
- Amazon Music Unlimited
- Apple Music
- Beatport
- Beatsource
- SoundCloud Go+
- TIDAL
Lighting
Onboard Smart Lighting
- Philips Hue
- Nanoleaf
Supported DMX
- SoundSwitch DMX Micro
- SoundSwitch Control One
Power
(Internal with locking IEC)
Input Type:
Locking IEC
Input Voltage:
100–240 VAC
Frequency:
50/60 Hz
Power Consumption:
150 W
General
Dimensions (W x D x H):
Inches: 29.00 x 15.87 x 5.70
Centimeters: 73.66 x 40.30 x 14.47
Weight:
29.4 lbs (13.33 kg)

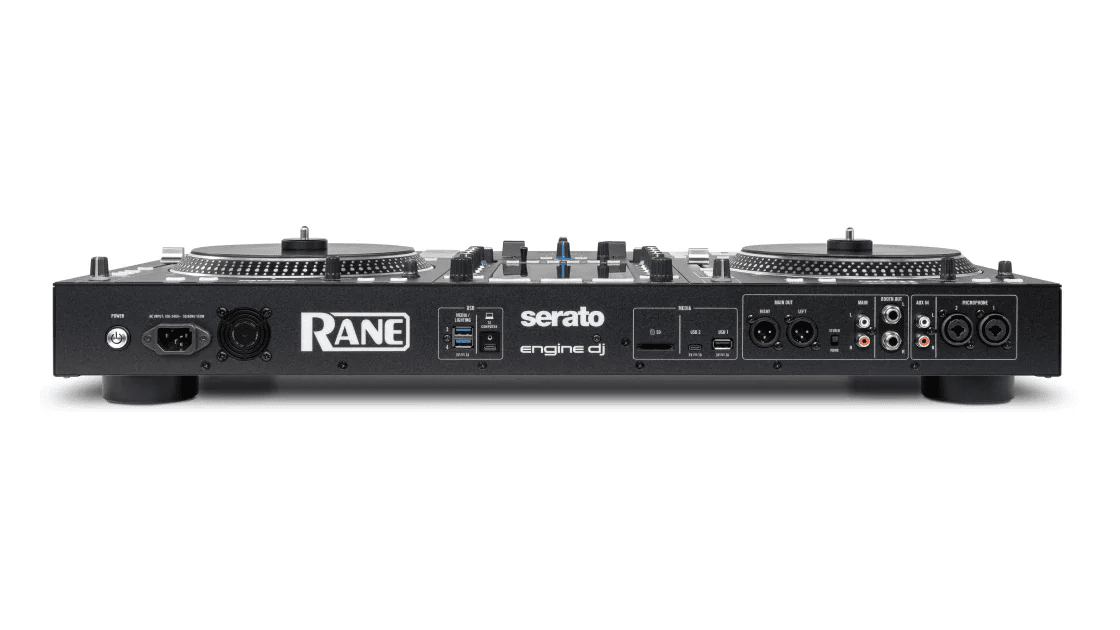

Connections
Inputs
Microphones:
- Mic 1: XLR + 1/4” Combo Jack
- Mic 2: XLR + 1/4” Combo Jack
Aux:
Stereo Pair (RCA)
Outputs
Main:
(2) XLR, Stereo Pair (RCA)
Booth:
(2) 1/4” TRS Jacks
Headphones:
- 1/4” Stereo Jack
- 3.5-mm Stereo Mini-Jack
Media Inputs
USB:
- USB 1: Type-A, USB 2.0 High Speed
- USB 2: Type-C, USB 3.0 SuperSpeed
- USB 3: Type-A, USB 3.0 SuperSpeed
- USB 4: Type-A, USB 3.0 SuperSpeed
- USB to Computer: Type-C, USB 3.0 SuperSpeed
SD Media:
SD, SDHC, SDXC
Internal HD:
SATA 3.0
Power
Input:
Locking IEC
| Condition | New |
|---|---|
| MPN (manufacturer part number) | SYSTEMONE |
| UPC (Universal Product Code) | 694318026649 |
