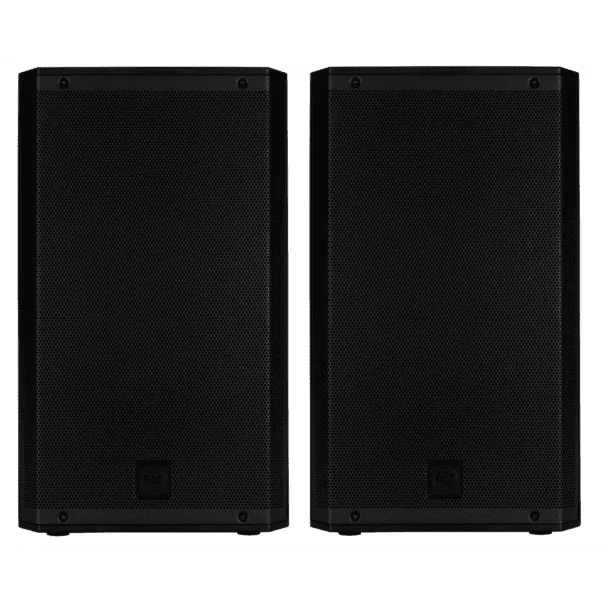

RCF ART 945-A - Double Pack

Account manager

Have a Question? Ask an Account Manager

ART 945-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of neodymium transducers - 4" titanium compression driver, 15" woofer - two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 945-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 45-20000 Hz linear frequency response
  • 4" Titanium/Neodymium Compression Driver
  • 15" Neodymium Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
60°
Transducers

COMPRESSION DRIVER:
1 x 1.4'' neo, 4.0'' v.c

WOOFER:
15'' neo, 3.5'' v.c
Input/Output section

INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section

CROSSOVER FREQUENCIES:
650Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Linear, Boost, Stage, Volume
Power section

TOTAL POWER:
2100 W Peak

HIGH FREQUENCIES:
700 W Peak

LOW FREQUENCIES:
1400 W Peak

COOLING:
Convection

CONNECTIONS:
Powercon TRUE1 TOP IN/OUT
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 Top, 1 x M10 each side

HANDLES:
1 Top , 1 each side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size

HEIGHT:
717 mm / 28.23 inches

WIDTH:
415 mm / 16.34 inches

DEPTH:
410 mm / 16.14 inches

WEIGHT:
22.1 kg / 48.72 lbs
Shipping informations

PACKAGE HEIGHT:
760 mm / 29.92 inches

PACKAGE WIDTH:
475 mm / 18.7 inches

PACKAGE DEPTH:
470 mm / 18.5 inches

PACKAGE WEIGHT:
24.3 kg / 53.57 lbs
More Information
ConditionNew
MPN (manufacturer part number)ART 945-A
UPC (Universal Product Code)8024530019167
