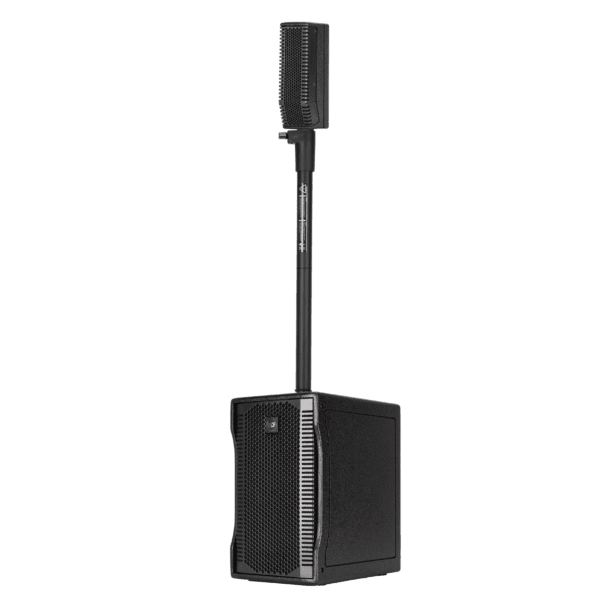

RCF EVOX-5-SYSTEM- Powered 2-way Array with 10" Subwoofer
-1x 10" High Excursion Woofer
-5x Full Range 2" Drivers
-Peak 600W (LF), 200W (HF)
-120° Horizontal Coverage
-Balanced Line/Mic Level Input
-Vertical Coverage Prevents Beaming
-EQ Boost Switch
-DSP Signal Processing
-SPEAKON 2-Pole Connector to Top Speaker
-For Live Sound and PA Applications
Special Price
$1,099.00
Regular Price
$1,399.00
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Email us: [email protected]
Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.
FEATURES
- 800 Watt
- 125 dB max SPL
- 45 Hz 20 kHz frequency response
- 10" Woofer, 2.0" v.c.
- 5 x 2" Ultra compact fullrange, 1.0 v.c.
- 120° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:45 Hz ÷ 20 Hz
- Max SPL:125 dB
- Horizontal coverage angle:120°
- Vertical coverage angle:30°
- Fullrange:5 x 2", 1.0" v.c.
- Woofer:10", 2.0" v.c.
INPUT/OUTPUT SECTION
- Input connectors:Jack-XLR male
- Output connectors:XLR female
- Input sensitivity:-2 dBu / + 4 dBu
PROCESSOR SECTION
- Crossover frequencies:220 Hz
- Protections:thermal, rms
- Limiter:Soft limiter
- Controls:Volume, EQ, phase, xover
AMPLIFIER SPECIFICATIONS
- Total power:800 W PEAK
- High frequencies:200 W PEAK
- Low frequencies:600 W PEAK
- Total power:400 W RMS
- High frequencies:100 W RMS
- Low frequencies:300 W RMS
- Cooling:Convection
- Connections:VDE connector
CABINET
- Cabinet Material:Baltic birch plywood
- Hardware:2 x M6
- Handles:1 top
- Pole Mount/Cap:Yes
- Colour:black
PHYSICAL SPECIFICATIONS
- Height:490/19.29 mm/inch
- Width:288/11.34 mm/inch
- Depth:427/16.81 mm/inch
- Net Weight:19.2/42.32 kg/lbs
Condition | New |
---|---|
MPN (manufacturer part number) | EVOX-5-SYSTEM |
UPC (Universal Product Code) | 08024530012380 |
