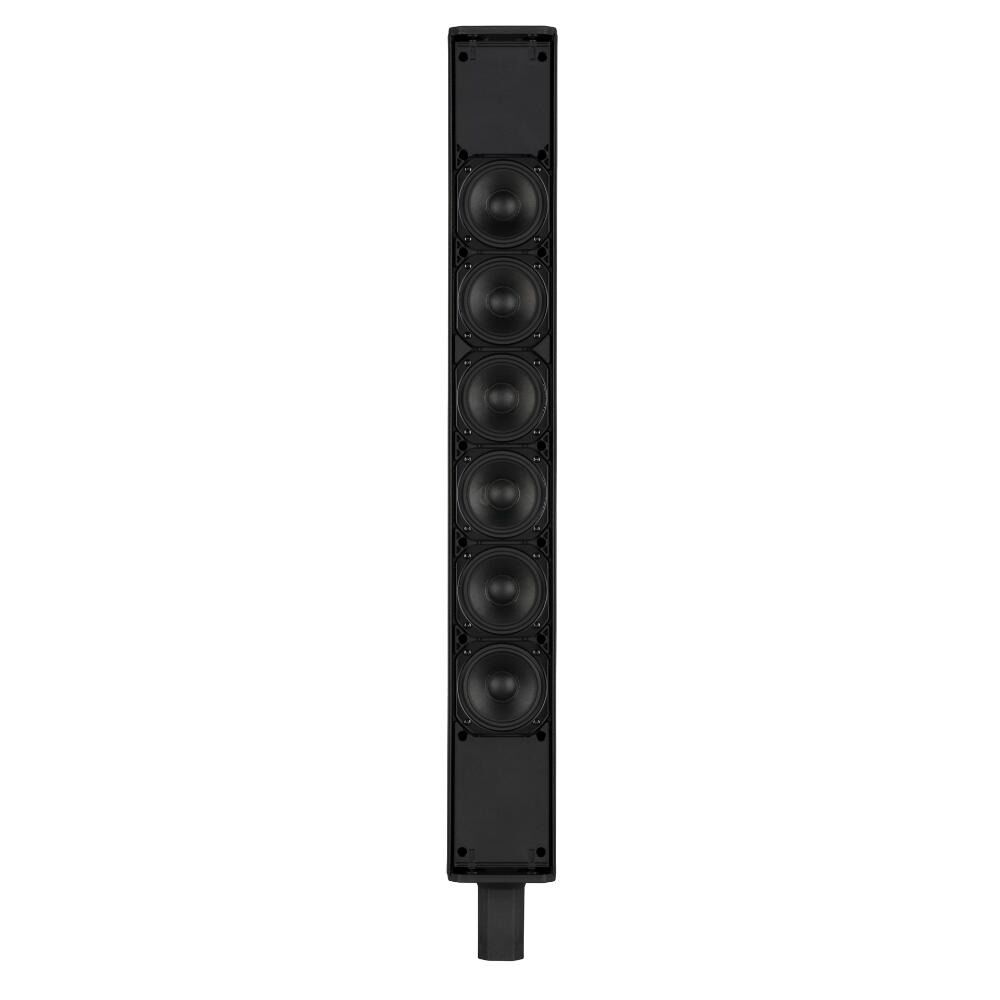

RCF EVOX J11 -12" 3-Way 3500W Powered Column Array System

The RCF EVOX J11 is a high-performance active three-way portable column speaker system built for professional audio applications that demand powerful output, wide coverage, and pristine sound quality. Combining RCF’s decades of loudspeaker expertise with modern amplification and DSP technology, the EVOX J11 delivers rich, full-range audio with exceptional clarity and punch—whether you’re performing live, DJing, presenting, or installing a premium sound system.

Featuring a three-way design with dedicated bass, midrange, and high-frequency drivers, the J11 produces deep, controlled low-end, detailed mids, and crisp highs across a broad listening area. Advanced onboard DSP processingensures optimized performance and reliable protection, while efficient Class-D amplification provides clean power and high headroom without unnecessary weight.

The EVOX J11’s sleek, modular column format and quick-assembly design make setup and transport effortless, making it a top choice for live musicians, touring acts, mobile DJs, houses of worship, corporate events, and AV installations. With its combination of portability and professional sound, the RCF EVOX J11 elevates any performance or event with immersive audio.

Features

• 132 dB Max SPL
• 3500 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 12 × 3” Full-Range Neo Transducers
• 12” High-Power Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet With Aluminum Stand Mount
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included

Acoustical specifications
Frequency Response
37 Hz - 20000 Hz
Max SPL @ 1m
132 dB
Horizontal coverage angle
120°
Vertical coverage angle
40°
Transducers
Compression Driver
1 x 0.75'' neo, 1.75'' v.c
Fullrange
12 x 3.0'' neo, 1.0'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
160 Hz/1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power
3500 W Peak
High frequencies
1500 W Peak
Low frequencies
2000 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Handles
1 Top
Pole mount/Cap
Quick-fit socket
Grille
Steel
Color
Black, White - RAL 9003
Size / Weight
Height
2285 mm / 89.96 inches
Width
400 mm / 15.75 inches
Depth
460 mm / 18.11 inches
Weight
29 kg / 63.93 lbs
Shipping information
Package Height
676 mm / 26.61 inches
Package Width
451 mm / 17.76 inches
Package Depth
581 mm / 22.87 inches
Package Weight
35 kg / 77.16 lbs
