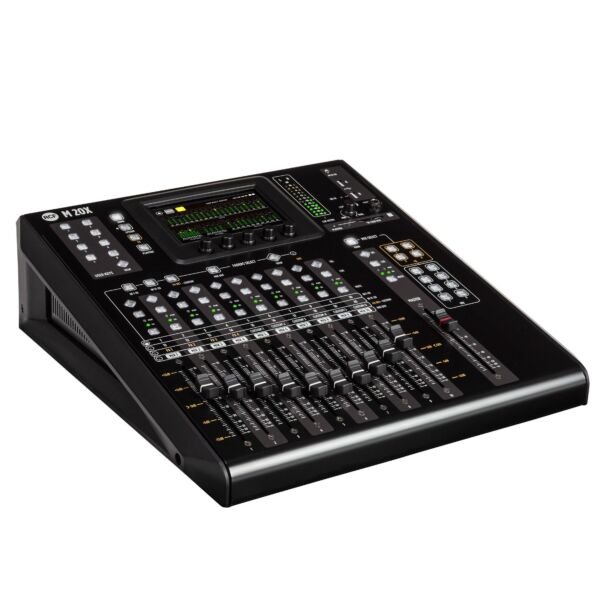

RCF M 20X - 20-Channel Desktop Digital Mixer

Special Price $1,699.00 Regular Price $2,599.00


discount



SKU
RCF-M20X
  • 20 analog inputs, 16 mic preamps and 4 line inputs
  • 12 balanced outputs + phones
  • 20-tracks sd card play/rec
  • 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
  • 11 motorized Faders
  • Smooth User Interface with 5” Touchscreen
  • AES Digital Output
  • LAN / WiFi Remote Control
M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output

M20 MIXREMOTE APP

Complete remote control of all M 20 models is available with M20 MixRemote, a dedicated App developed for both iOS and Android. There are several options to connect with the Digital Mixer:



  • Wireless, via an external WiFi Access Point connected to the LAN
  • USB tethering to an Android tablet
  • Wired to an iOS or Android tablet (via LAN adapter)
  • WiFi Dongle, two clients maximum



iOS APP Download Android APP Download

SPECIFICATIONS
Electronic specifications

FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz

THD+N, 0DB GAIN, 0DBU OUT:
< 0.02% A-Weighted

DYNAMC RANGE, ANALOG TO ANALOG:
109 dB A-Weighted

RESIDUAL NOISE LEVEL, MAIN OUT, MUTED:
-85 dBu A-Weighted
Inputs

MIC (BALANCED XLR):
8

REMOTE CONTROLLED STORABLE GAIN:
Yes

MIC INPUT IMPEDANCE:
3.3 kohm

MAXIMUM INPUT LEVEL:
18 dBu

PHANTOM POWER +48V:
Yes

MIC/LINE (XLR/TRS COMBO):
8

REMOTE CONTROLLED STORABLE GAIN:
Yes

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN RANGE:
0 dB ÷ 60 dB

MIC INPUTS IMPEDANCE (XLR):
3.3 kohm

LINE INPUTS IMPEDANCE (TRS):
12.8 kohm

MAXIMUM INPUT LEVEL (XLR):
18 dBu

MAXIMUM INPUT LEVEL (TRS):
29 dBu

PHANTOM POWER +48V:
Yes

BALANCED LINE (1/4 TRS):
2

GAIN RANGE:
0 dB ÷ dB

LINE INPUTS IMPEDANCE (TRS):
18 kohm

MAXIMUM INPUT LEVEL (TRS):
18 dBu

STEREO LINE (3,5MM JACK):
1

GAIN RANGE:
0 dB ÷ dB

LINE INPUTS IMPEDANCE (TRS):
15 kohm

MAXIMUM INPUT LEVEL (TRS):
18 dBu
Outputs

MAIN OUT (BALANCED XLR):
2

OUTPUT IMPEDANCE:
50 ohm

MAXIMUM OUTPUT LEVEL:
24 dBu

MIX OUT (BALANCED XLR):
8

MIX OUT (1/4 TRS):
2

OUTPUT IMPEDANCE:
150 ohm

MAXIMUM OUTPUT LEVEL:
24 dBu

PHONES (6,8MM JACK STEREO LINE):
1

OUTPUT IMPEDANCE:
50 ohm

MAXIMUM OUTPUT LEVEL:
18 dBu

AES3 (XLR):
1
Processing

SIGNAL PROCESSING:
32 Bit Floating Point

HEADROOM:
20 dB

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

BUSS:
16
Input processing

SOURCE SELECTOR:
Yes

POLARITY:
Yes

HIGH PASS FILTER:
Yes

DELAY:
100 ms

GATE:
with Gain Reduction meter

PEQ:
4 Band

COMPRESSOR / DE-ESSER ON INPUTS:
1 ÷ 16 (with Gain Reduction meter)
Output processing

DELAY:
250 ms

GEQ:
30 Band

PEQ:
8 Band

COMPRESSOR / LIMITER:
with Gain Reduction meter

MIX OUT:
[1 ÷ 8]

DELAY:
250 ms

PEQ:
8 Band

COMPRESSOR / LIMITER:
with Gain Reduction meter

REAL TIME ANALYZER:
Yes

DELAY:
250 ms
Effects

INTERNAL FX:
4

FX1:
Reverb (Hall, Room, Plate, Ambience)

FX2:
Reverb (Hall, Room, Plate, Ambience)

FX3:
Delay (Stereo, Modern, Vintage, Dual, ER)

FX4:
Modulation (Chorus, Flanger, Tremolo)
Multitrack

SD MULTITRACK FORMAT:
WAV, 24Bit, 48.0kHz

NUMBER OF TRACKS:
20

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

RECORDING:
20 Channels

PLAYBACK:
20 Channels

USB AUDIO INTERFACE FORMAT:
WAV, 24Bit, 48.0kHz

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

UPSTREAM:
24 Channels

DOWNSTREAM:
24 Channels
USB drive play/rec

USB DRIVE RECORDING:
2 Channels @ WAV, 24Bit, 48.0kHz

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

A/D-D/A CONVERSION:
16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz

USB DRIVE PLAYBACK:
2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz
Control interfaces

LAN PORT:
1000-BaseTX for remote control

DESCRIPTION:
MIDI interface, WiFi dongle (must be en

USB PORTS:
2 Type A
Electrical specifications

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (MAX) (W):
70 W
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
Metal
Size

WEIGHT:
7.9 kg / 17.42 lbs

WIDTH:
388 mm / 15.28 inches

HEIGHT:
131 mm / 5.16 inches

DEPTH:
428 mm / 16.85 inches
Shipping informations

PACKAGE HEIGHT:
215 mm / 8.46 inches

PACKAGE WEIGHT:
9 kg / 19.84 lbs

PACKAGE DEPTH:
506 mm / 19.92 inches

PACKAGE WIDTH:
580 mm / 22.83 inches
