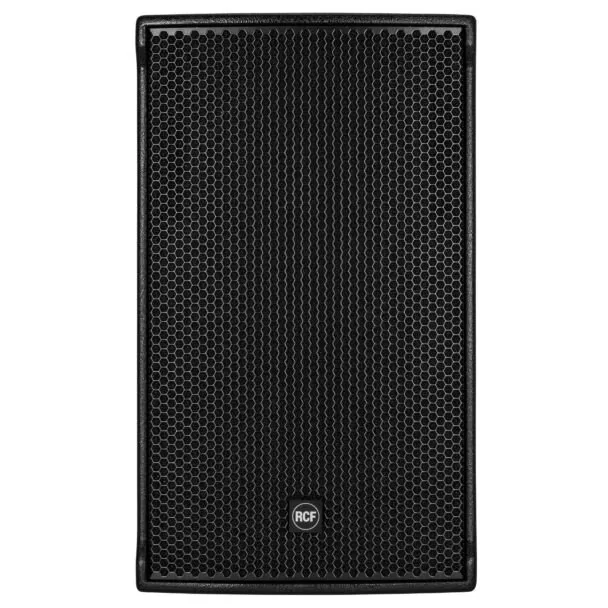

RCF NX 45-A (B-Stock)
SKU
RCF-NX45-A-B
Special Price $1,799.00 $2,199.00 - You Save: $400 (18.19%)
Have a Question? Ask an Account Manager
Call us: (516) 597-5450
Or: Conatct Us
The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker
- Â 1400 W 2-way class-D amplifier
- Â 133 dB SPL Max
-  45 – 20000 Hz Frequency Range
-  90° x 50° constant directivity coverage
- Â 15" neodymium woofer, 3.5" voice coil
- Â Horn loaded 4.0''neodymium c. driver
- Â Multiple rigging points
SPECIFICATIONS
Acoustical specifications
Â
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
50°
Transducers
Â
COMPRESSION DRIVER:
1.4'' neo, 4.0'' v.c
WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
Â
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XRL, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
Â
CROSSOVER FREQUENCIES:
650 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, Boost, Mic/Line
Power section
Â
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
Â
CE MARKING:
Yes
Physical specifications
Â
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
5 x M10, 4 x quick lock
HANDLES:
2 Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
Â
HEIGHT:
707 mm / 27.83 inches
WIDTH:
418 mm / 16.46 inches
DEPTH:
402 mm / 15.83 inches
WEIGHT:
24 kg / 52.91 lbs
Shipping informations
Â
PACKAGE HEIGHT:
760 mm / 29.92 inches
PACKAGE WIDTH:
480 mm / 18.9 inches
PACKAGE DEPTH:
460 mm / 18.11 inches
PACKAGE WEIGHT:
27 kg / 59.52 lbs
| Condition | Used |
|---|---|
| MPN (manufacturer part number) | NX45-A |
| UPC (Universal Product Code) | 08024530015640 |
